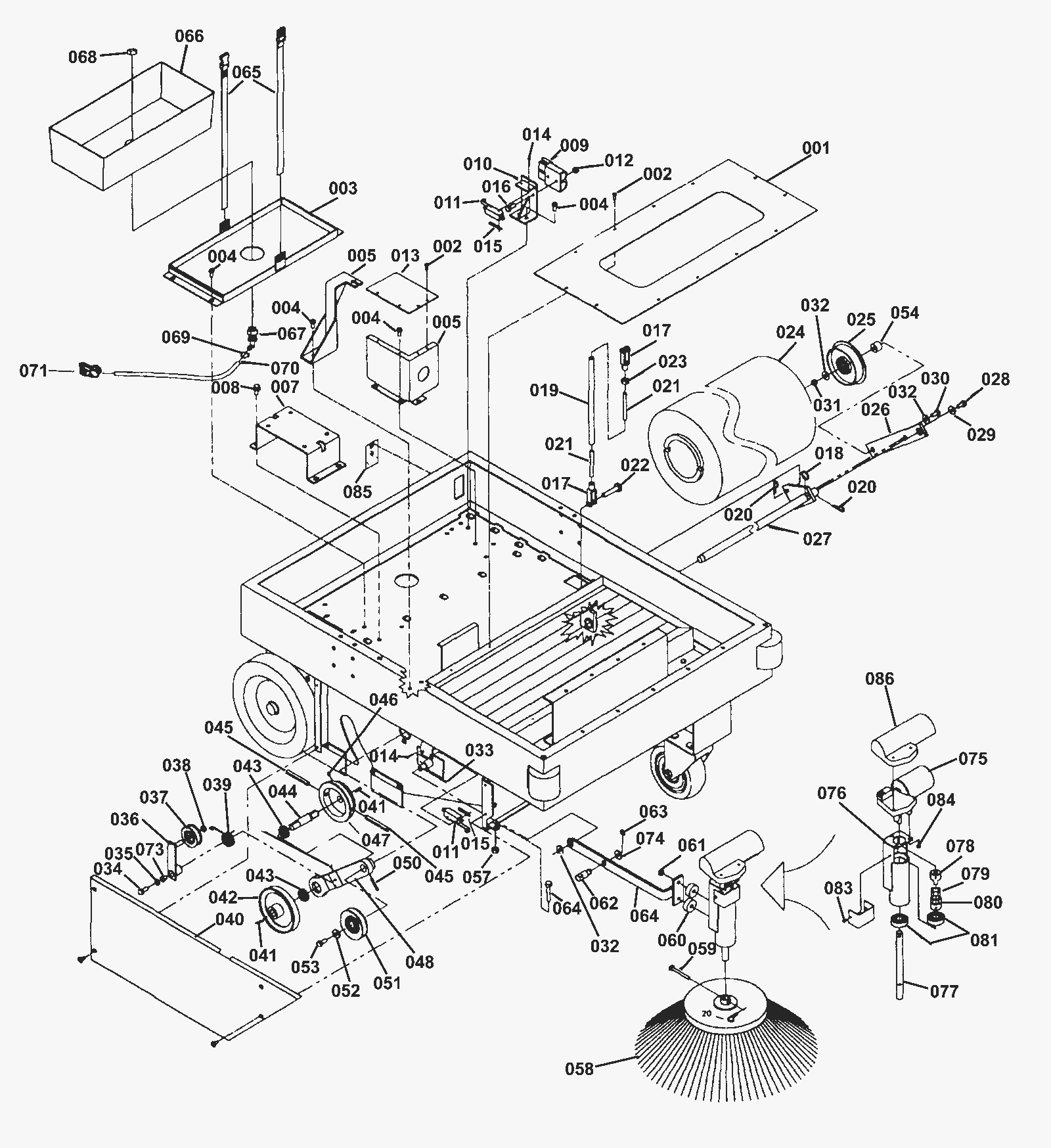

Brooms and Hardware Assembly

#PartDescription ReqNotesAvailability
001 174-6077 Filter base cover 1
002 174-5053 Screw 10 x 1/2 stainless steel 16
003 174-6078 Battery tray weldment 1
004 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 13
005 174-6079 CBL hdlg. brkt. weldment 1
006 174-6080 Charger plug housing 1
007 174-6081 Motor mount bracket 1
008 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
009 174-6082 Charge connector, yellow 1
010 174-5719 Charge Plug Bracket 1
011 174-0406 Snap switch 2
012 999-0190 Nut 1/4-20 hex plain finish 2
013 174-6083 Charge plug housing lid 1
014 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 4
015 174-0413 Tinnerman nut 2
016 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 2
017 174-6084 Yoke 2
018 174-0283 3/4 retaining ring 1
019 174-6085 Linkage rod (OBSOLETE) 1
020 997-2506 Cotter pin 4
021 174-6086 Threaded rod 2
022 174-0195 Clevis pin 1
023 999-0430 Nut 5/16-18 hex jam plain finish 1
024 174-6087 Main broom 1
025 174-6088 Single flange pulley 1
026 174-6089 Brush wheel arm 1
027 174-6090 Major axle weldment 1
029 999-0328 Washer 7/16 USS flat 1
030 174-6091 Bolt 1/2-13 hex head 1
031 999-1208 Nut 1/2-13 nylon insert lock stainless steel 1
032 999-0187 Washer 1/2 flat plain finish 4
033 174-0201 Cotter pin 1
034 174-6092 Idler arm weldment 1
034 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 1
035 174-2129 Washer .50 x .30 flat 1
037 174-6093 Idler pulley 1
038 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 1
039 174-6094 Idler tension spring 1
040 174-6095 Right side dust cover 1
041 174-6096 3/16 sq x .5 key 1
042 174-6097 Brush drive pulley 2
043 174-0465 Bearing 1
044 174-6098 Main brush drive shaft 2
045 174-6099 Rollpin 3/8 x 1.25 1
046 174-5737 Screw 1/4-20 x 1/4 set 2
047 174-6100 Brush drive hub 2
048 174-6101 Brush arm 1
049 174-6102 Screw 10-24 x 1/4 set 1
050 174-6103 Rollpin .25 x 1.5 1
051 174-6104 Brush arm pulley 1
052 999-1363 Washer 7/8 flat stainless steel 1
054 174-6105 Spacer 1
055 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 4
057 999-0628 Nut 3/8-16 hex jam stainless steel 1
058 174-6107 Side broom (OBSOLETE) 1
059 174-6108 Clevis pin .25 x 1.5 1
060 174-6109 Grommet 2
061 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
062 174-0136 Swivel pin 1
063 174-0140 Retaining ring 1
064 174-6110 Side broom arm 1
065 174-6111 Strap set 1
066 174-6112 Battery tray 1
067 174-0364 90 degree nozzle body 1
068 174-0517 Nut 1/4 plastic 1
069 997-2001 Hose clamp 1
070 174-0369 18 inch silicone hose 1
071 174-0370 Shut-off hose clamp 1
073 174-6113 Bushing 1
073 174-6115 Bearing housing weldment 1
074 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat 1
075 N/A Not available 1 12V side broom motor
077 174-6116 Side broom shaft 1
078 174-6117 10mm bore hub 1
079 174-6118 Spider sox 1
080 174-6119 5/8 bore hub 1
081 174-6120 5/8 bore bearing 2
082 174-6121 Side broom cover 1
083 174-5053 Screw 10 x 1/2 stainless steel 2
084 999-0778 Screw M6-1 x 10mm hex head 3
085 174-6123 12V decal 1
086 174-6124 Motor cover 1
