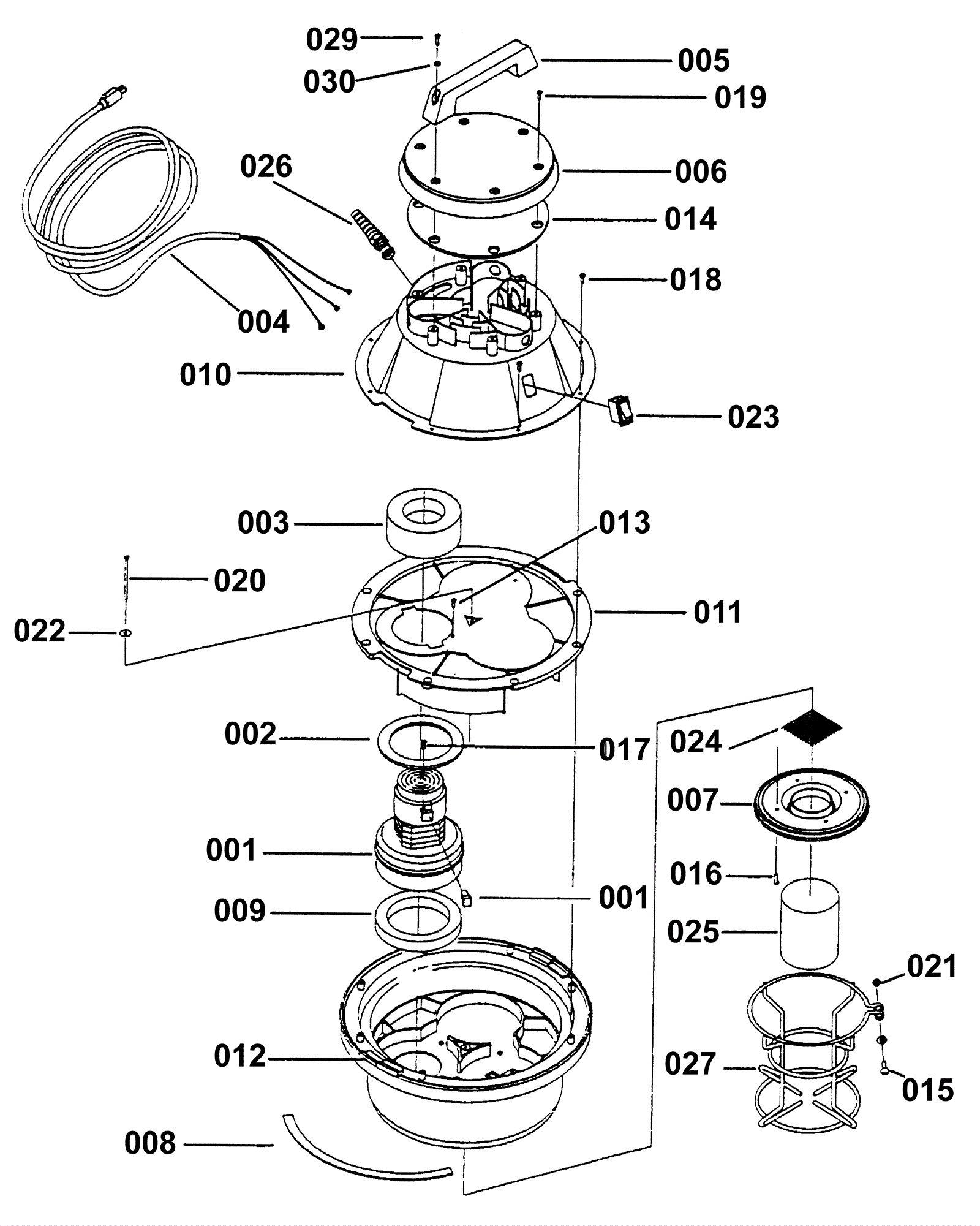

290-15 115V Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001a 991-1208 120V 2 stage vacuum motor peripheral $156.78 1 ships same day
001b 174-3002 Carbon brush (sold individually) $11.63 2 usually ships 12-16 days
002a 164-0881 Vacuum motor gasket $13.42 1 usually ships 3-5 days
002b 991-3029 Vacuum motor gasket $2.80 1 (NON-OEM) ships same day
003 174-0171 Foam ring $2.85 1 usually ships 12-16 days
004a 174-3003 16/3 power cord 50 foot $75.64 1 usually ships 12-16 days
004b 174-5125 Powercord $95.31 1 usually ships 12-16 days
005 174-2278 Handle $10.34 1 usually ships 12-16 days
006 174-2279 Cover lid $17.72 1 usually ships 1-5 days
007 174-2280 Float cage adaptor $12.68 1 usually ships 12-16 days
008 174-2281 Gasket lid (15G) $28.19 1 usually ships 12-16 days
009 174-2282 Gasket $8.88 1 usually ships 12-16 days
010 174-2283 Single motor cover $50.23 1 New Style usually ships 12-16 days
011 174-2284 Motor holdown 5.7 x 1 $42.84 1 usually ships 1-5 days
012 174-2285 Single motor pan assembly $167.30 1 New Style usually ships 1-5 days
013 174-2286 Screw 10 x 1/2 $1.08 1 usually ships 1-5 days
014 174-2287 Dome seal gasket $11.98 1 usually ships 1-5 days
015 999-6667 Bolt 1/4-20 x 1 hex zinc $0.99 1 ships same day
016 174-5247 Screw 12 x 1/2 steel type a $1.33 4 usually ships 12-16 days
018 174-5804 Bolt 5/16 x 3/4 shoulder $1.08 8 usually ships 12-16 days
019 174-2289 Screw 10 x 5/8 hi/lo $2.11 4 usually ships 12-16 days
020 174-2290 Screw 10 A point x 3 1/2 $1.08 1 usually ships 12-16 days
021 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 1 ships same day
022 174-2291 Washer finish $1.33 1 usually ships 12-16 days
023 174-0181 Rocker switch $18.63 1 ships same day
024 174-0305 Filter screen stainless steel $6.23 1 usually ships 12-16 days
025 174-2292 Float assembly $9.89 1 usually ships 12-16 days
026 174-2293 Strain relief with nut $11.80 1 usually ships 12-16 days
027 174-2294 Float cage $39.44 1 usually ships 12-16 days
029 174-5134 Screw 10 x 1 1/4 $1.08 2 usually ships 12-16 days
030 174-0532 Washer 7/32 x 3/64 nylon $1.08 2 usually ships 12-16 days
