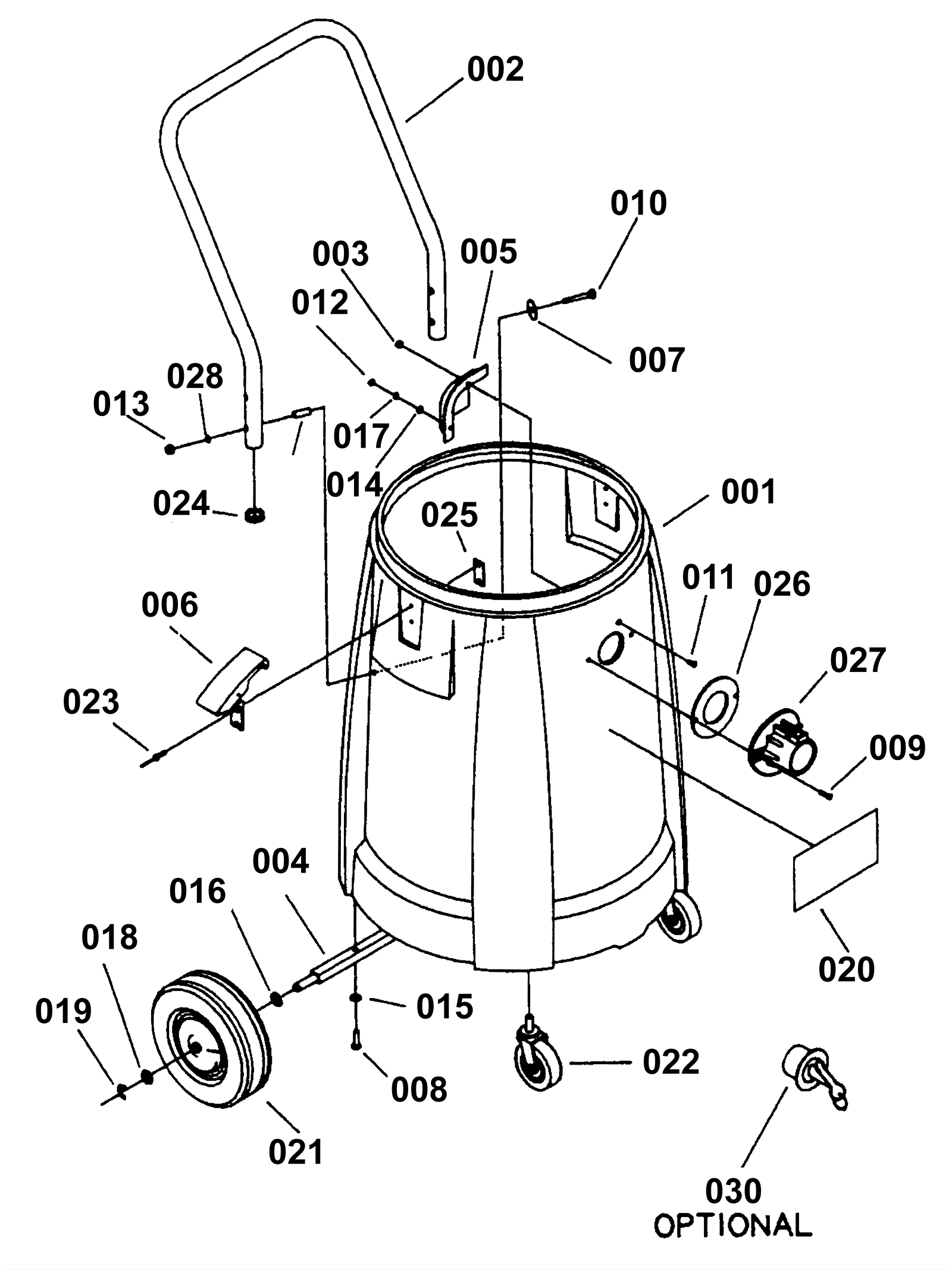

290-15 Main Body Assembly

#PartDescriptionPriceReqNotesAvailability
001a 174-2249 15 Gallon Poly Tank MCH $150.44 1 usually ships 1-5 days
001b 174-2250 20 Gallon Poly Tank MCH $166.14 1 usually ships 1-5 days
002 174-2251 Handle $47.29 1 usually ships 1-5 days
003 174-5158 Nut 10-32 flanged wizz $1.08 1 usually ships 1-5 days
004 174-2252 Plated axle $75.92 1 390 Series usually ships 1-5 days
005 174-2253 Intake deflector $19.20 1 usually ships 1-5 days
006 174-2254 Poly tank latch $15.79 2 usually ships 12-16 days
007 174-2255 Washer 5/16 x 7/8 x 3/64 flat $1.08 4 usually ships 12-16 days
008 999-6667 Bolt 1/4-20 x 1 hex zinc $0.99 2 ships same day
009 174-2256 Screw 10-32 x 3/4 steel plated $1.08 2 usually ships 1-5 days
010 174-5226 Screw 1/4-20 x 1 3/4 socket cap steel plated $2.51 4 usually ships 1-5 days
011 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 1 ships same day
012 999-0460 Nut 10-32 hex $0.99 2 ships same day
013 999-0429 Nut 1/4-20 acorn nickel plated $0.99 4 ships same day
014 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
015 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
016 174-5159 Washer 33/64 x 1/64 wave $1.10 2 usually ships 12-16 days
017 174-5259 Washer #10 helical $1.08 2 usually ships 12-16 days
018 999-0855 Washer 9/16 SAE flat $0.99 2 ships same day
019 174-0178 1/2 inch external retaining ring $1.10 2 usually ships 12-16 days
020 174-2258 Decal $1.00 1 usually ships 1-5 days
021 174-8510 8 inch wheel $33.21 2 usually ships 12-16 days
022 174-2259 3 inch caster wheel (gray) $20.26 2 usually ships 12-16 days
023 174-2209 Pop rivet $1.08 4 usually ships 12-16 days
024 174-2260 Tube Closure $1.00 2 usually ships 12-16 days
025 174-2261 Back clamp plate $4.20 2 usually ships 1-5 days
026 174-2262 Diecut poron intake gasket $1.22 1 usually ships 12-16 days
027 174-2263 Complete intake assembly (aluminum) $23.18 1 usually ships 12-16 days
028 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
029 174-5189 Bushing 1/4 x 3/8 x 1 $10.55 4 usually ships 1-5 days
030 174-2264 Drain plug $34.36 1 Optional usually ships 12-16 days
