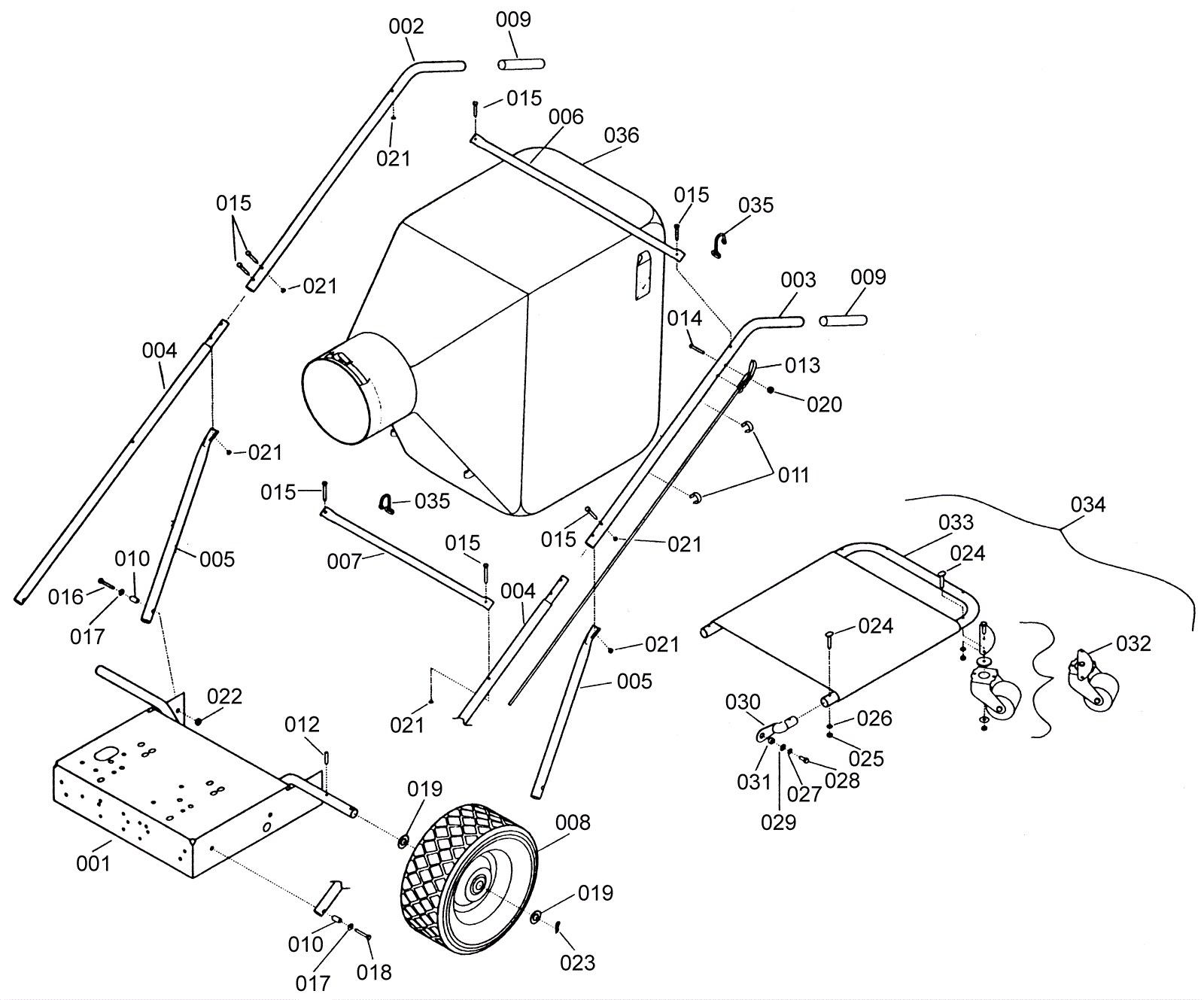

VAC-35 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-1053 Chassis weldment Call for price 1 usually ships 1-5 days
002 174-1054 Right upper handle Call for price 1 usually ships 1-5 days
003 174-1055 Left upper handle Call for price 1 usually ships 1-5 days
004 174-1056 Lower handle Call for price 2 usually ships 1-5 days
005 174-1057 Handle back brace Call for price 2 usually ships 1-5 days
006 174-1058 Upper cross brace Call for price 1 usually ships 1-5 days
007 174-1059 Lower cross brace Call for price 1 usually ships 1-5 days
008 174-1060 Wheel assembly $228.68 2 usually ships 1-5 days
009 174-0864 Black handle grip Call for price 2 usually ships 1-5 days
010 174-1061 Insert Call for price 4 usually ships 1-5 days
011 174-1062 Snap-on clamp $1.32 2 usually ships 1-5 days
012 174-0971 Roll pin 3/16 x 1 1/2 $0.95 2 usually ships 1-5 days
013b 174-1063 Throttle control assembly Call for price 1 usually ships 1-5 days
014 999-0223 Screw 10-24 x 1 1/4 round head slotted zinc plated $0.99 2 ships same day
015 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 8 ships same day
016 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated $0.54 2 ships same day
017 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
018 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
019 999-0630 Washer 3/4 SAE flat $0.99 4 ships same day
020 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
021 999-0190 Nut 1/4-20 hex plain finish $0.99 8 ships same day
022 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
023 174-1066 Cotter pin Call for price 2 usually ships 1-5 days
024 174-2414 Bolt 1/4-20 x 1 1/2 contour head $0.86 6 usually ships 1-5 days
025 999-0190 Nut 1/4-20 hex plain finish $0.99 6 ships same day
026 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
027 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
028 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish $0.99 2 ships same day
029 174-1067 Special washer Call for price 2 usually ships 1-5 days
030 174-1068 Tubing end cap Call for price 2 usually ships 1-5 days
031 174-1069 Spacer Call for price 2 usually ships 1-5 days
032 N/A Not available Call for price 1 (Caster and plate assembly) usually ships 3-26 days
033 174-1071 Frame and bag platform Call for price 1 usually ships 1-5 days
034 N/A Not available Call for price 1 (Bag platform) usually ships 3-26 days
035 174-1073 Bag hook $1.26 4 usually ships 4-14 days
036a 174-1074 Vacuum dust bag (OBSOLETE) $214.78 1 usually ships 3-9 days
036b 174-1147 Disposable vacuum bag (OBSOLETE) $11.04 1 usually ships 3-9 days
