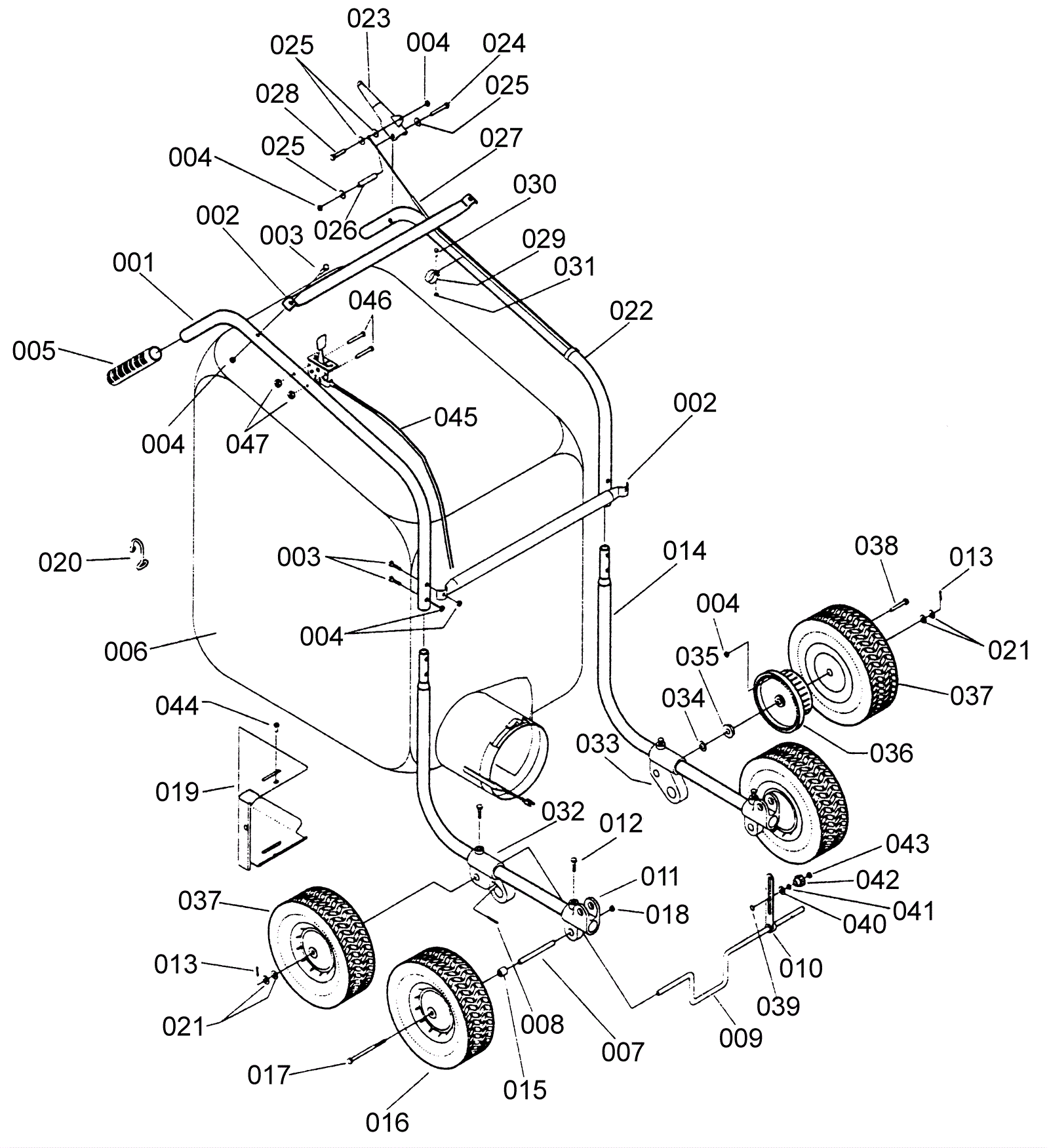

Housing and Drive Assembly

#PartDescription ReqNotesAvailability
001 174-0966 Upper handle 1
002 174-0967 Cross bar 2
003 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 6
004 999-0190 Nut 1/4-20 hex plain finish 16
005 174-0864 Black handle grip 2
006a 174-7022 Cloth bag with lanyard 1
006b 174-0968 Lumite with lanyard 1
006c 174-0969 Lumite with lanyard 1
007 174-0970 Spacer 2
008 174-0971 Roll pin 3/16 x 1 1/2 2
009 174-0972 Axle 1
010 174-0973 Height adjustment 1
011 174-0974 Pivot 2
012 999-0107 Bolt 3/8-16 x 2 hex head grade 5 zinc plated 4
013 174-7020 Cotter pin 2
014 174-0975 Lower handle (OBSOLETE) 2
015 174-0976 Spacer 2
016 174-7019 Wheel 2
017 174-7021 Bolt 1/2-20 x 5 hex head 2
018 999-0182 Nut 1/2-20 hex plain finish 2
019 174-0977 Deflector 1
020 174-0978 Bag hook 4
021 174-0979 Special washer 4
022 174-0980 Upper handle 1
023 174-0981 Clutch handle assembly 1
024 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated 1
025 999-0016 Washer 1/4 flat plain finish 4
026 174-0982 Spacer 1
027 174-0983 Clutch cable 1
028 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
029 174-0984 Clamp 2
030 999-0410 Screw 8-32 x 5/8 pan head slotted zinc plated 2
031 999-0151 Nut 8-32 nylon insert lock zinc plated 2
032 174-0985 Pinion and wheel support (right) 1
033 174-0986 Pinion and wheel support (left) 1
034 999-0349 Washer 5/8 SAE flat 2
035 174-0988 Bearing 2
036 174-0989 Gear 2
037 174-7018 Wheel 2
038 999-0514 Screw 1/4-20 x 2 1/2 carriage head zinc 8
039 174-0537 Washer 3/8 helical stainless steel 1
040 999-0024 Washer 5/16 flat stainless steel 1
041 999-0028 Washer 5/16 split lock plain finish 1
042 174-0990 Knob 1
043 999-0430 Nut 5/16-18 hex jam plain finish 1
044 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 3
046 999-0146 Screw 10-24 x 1 1/2 round head slotted zinc plated 2
047 999-0442 Nut 10-24 nylon insert lock stainless steel 2
