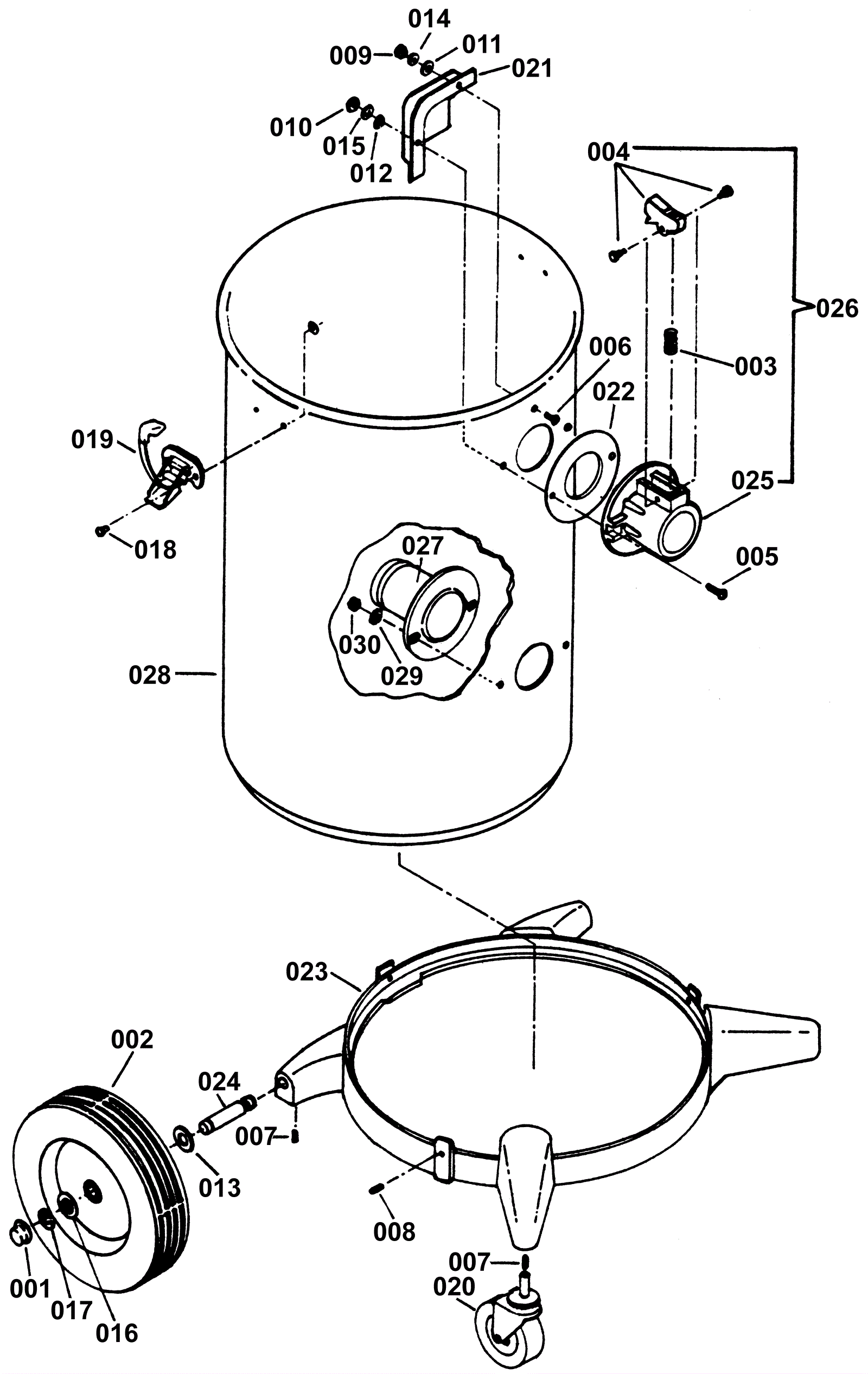

CRV Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-3149 Hub cap $1.48 2 usually ships 12-16 days
002 174-0819 6 inch wheel $15.62 2 usually ships 12-16 days
003 174-0820 Return spring $1.03 1 usually ships 1-5 days
004 174-0821 Trigger with pins $3.52 1 usually ships 1-5 days
005 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
006 174-2271 Screw 8-32 x 1/2 $1.10 1 usually ships 12-16 days
007 174-0822 Screw 1/4-20 x 1/3 $1.08 4 usually ships 12-16 days
008 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 3 ships same day
009 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 1 ships same day
010 999-0460 Nut 10-32 hex $0.99 2 ships same day
011 999-0266 Washer #8 SAE flat stainless steel $0.99 1 ships same day
012 999-0006 Washer 3/16 flat zinc plated $0.99 ships same day
013 174-5159 Washer 33/64 x 1/64 wave $1.10 2 usually ships 12-16 days
014 174-5406 Washer 8 helical $1.08 1 usually ships 12-16 days
015 174-5259 Washer #10 helical $1.08 2 usually ships 12-16 days
016 999-0855 Washer 9/16 SAE flat $0.99 2 ships same day
017 174-0178 1/2 inch external retaining ring $1.10 2 usually ships 12-16 days
018 174-0824 Rivet $1.08 4 usually ships 1-5 days
019 174-2401 Latch $16.33 2 usually ships 12-16 days
020 174-2259 3 inch caster wheel (gray) $20.26 2 usually ships 12-16 days
021 174-2253 Intake deflector $19.20 1 usually ships 1-5 days
022 174-2262 Diecut poron intake gasket $1.22 1 usually ships 12-16 days
023 174-0826 Wheel bracket $173.39 1 usually ships 12-16 days
024 174-0827 Plated axle $4.87 2 usually ships 12-16 days
026 174-2263 Complete intake assembly (aluminum) $23.18 1 usually ships 12-16 days
027 174-2404 Intake assembly tube $30.15 1 usually ships 12-16 days
028a 174-2396 Tank 4 gal. high intake $148.81 1 usually ships 1-5 days
028b 174-2397 Tank 4 gal. low intake $9.97 1 usually ships 1-5 days
028c 174-0829 6 gallon low intake tank $364.36 1 usually ships 1-5 days
028d 174-0830 6 gallon low intake plated tank $335.42 2 usually ships 1-5 days
029 174-0532 Washer 7/32 x 3/64 nylon $1.08 2 usually ships 12-16 days
030 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
N/S 174-0831 Paper filter protector $43.24 1 usually ships 12-16 days
N/S 174-0832 Disposable paper bag (10) $41.02 1 usually ships 12-16 days
N/S 174-0833 Bag frame Call for price 1 usually ships 1-5 days
N/S 174-2376 Bag assembly 4 gallon $76.99 1 usually ships 12-16 days
N/S 174-2377 Bag assembly 6 gallon $79.35 1 usually ships 12-16 days
