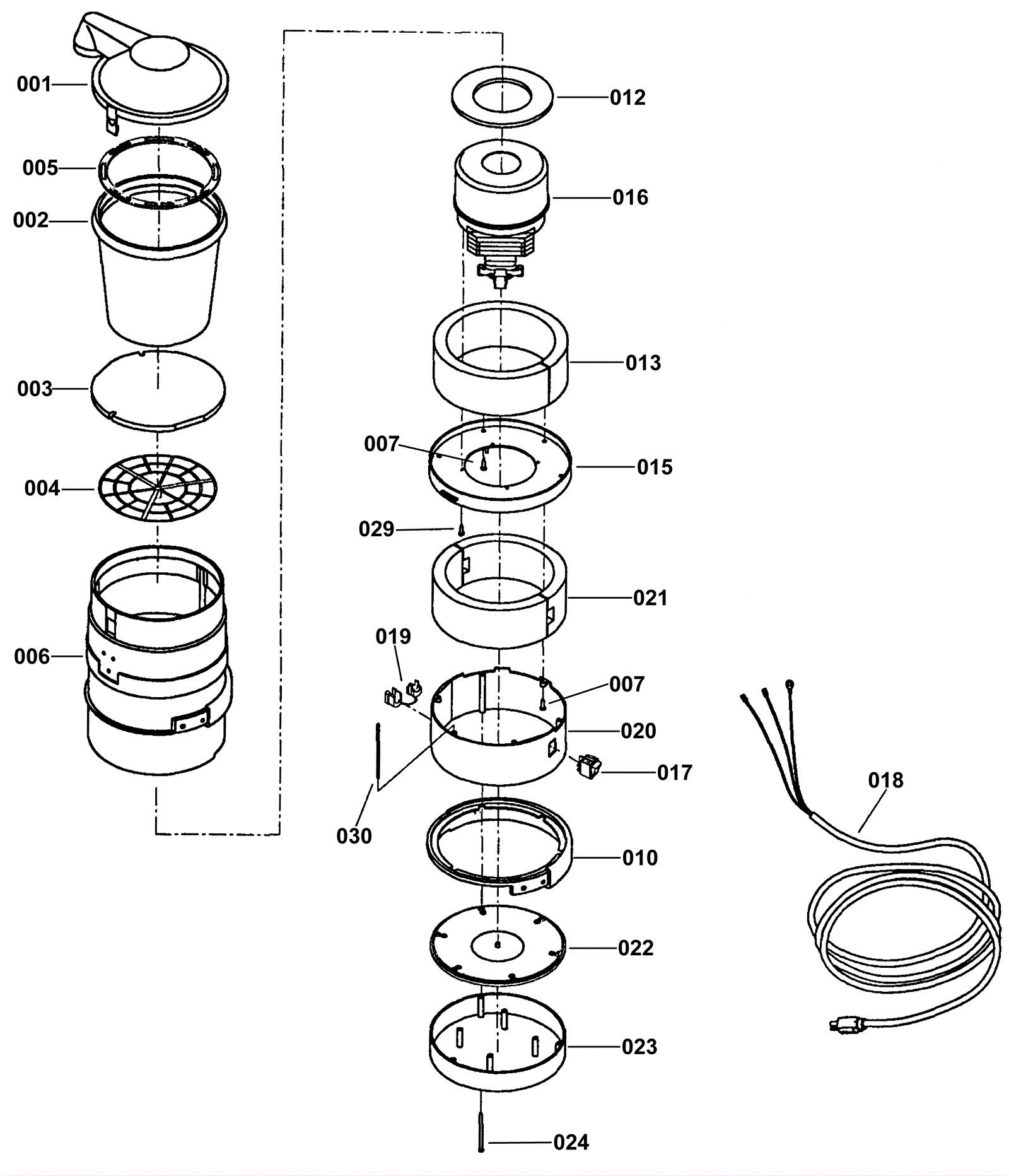

C-47185-00 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-2335 Inlet cover assembly $32.80 1 usually ships 12-16 days
002 174-2336 Filter bag $63.43 1 usually ships 12-16 days
003 174-2337 Filter disc $7.89 1 usually ships 12-16 days
004 174-2338 Support stand $4.93 1 usually ships 1-5 days
005 174-2339 Filter bag ring $2.81 1 usually ships 12-16 days
006 174-2340 Canister assembly $73.26 1 usually ships 1-5 days
007 174-2317 Screw 10 x 1 Call for price 20 usually ships 1-5 days
010 174-2341 Bumper Call for price 1 usually ships 1-5 days
012 174-2342 Motor gasket $20.29 1 usually ships 12-16 days
013 174-2343 Top insulation $6.32 1 usually ships 1-5 days
015 174-2344 Motor support disc Call for price 1 usually ships 1-5 days
016a 174-2345 Vac motor 115V flow thru $111.97 1 usually ships 12-16 days
016b 174-2347 Vac motor 115V H/P flow thru $218.05 1 usually ships 1-5 days
016c 174-2348 Vac motor 115V bypass $305.09 1 usually ships 1-5 days
017 174-2042 Switch $8.46 1 usually ships 12-16 days
018a 174-3033 Terminal block $40.40 1 usually ships 12-16 days
018b 174-2041 Cord $16.10 1 (OEM) usually ships 1-5 days
018c 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) (does not include strain relief) ships same day
018d 991-5001 14/3 extension cord 50 foot (yellow) $103.23 1 (NON-OEM) ships same day
019 174-5268 Round Strain Relief $1.22 2 usually ships 1-5 days
020 174-2353 Bottom motor shroud $39.61 1 usually ships 12-16 days
021 174-2354 Bottom insulation $3.54 1 usually ships 1-5 days
022a 174-2355 Bottom flow thru end disc $12.87 1 usually ships 12-16 days
022b 174-2356 H/P flow thru end disc $6.09 1 usually ships 1-5 days
022c 174-2357 Bottom bypass end disc $6.09 1 usually ships 1-5 days
023a 174-2358 Flow thru bottom cap Call for price 1 usually ships 1-5 days
023b 174-2359 Bypass bottom cap $7.77 1 usually ships 1-5 days
024 174-2360 Screw 8 x 2 1/4 CSK $1.00 3 usually ships 1-5 days
029 174-2361 Screw 10 x 16 $1.03 2 usually ships 1-5 days
030 174-2362 Pin Call for price 3 usually ships 1-5 days
N/S 170-0694 Odum coupling $13.76 1 ships same day
N/S 174-6500 Vacuum bag 10 pack (Backpack Vacuum) $22.17 1 usually ships 12-16 days
