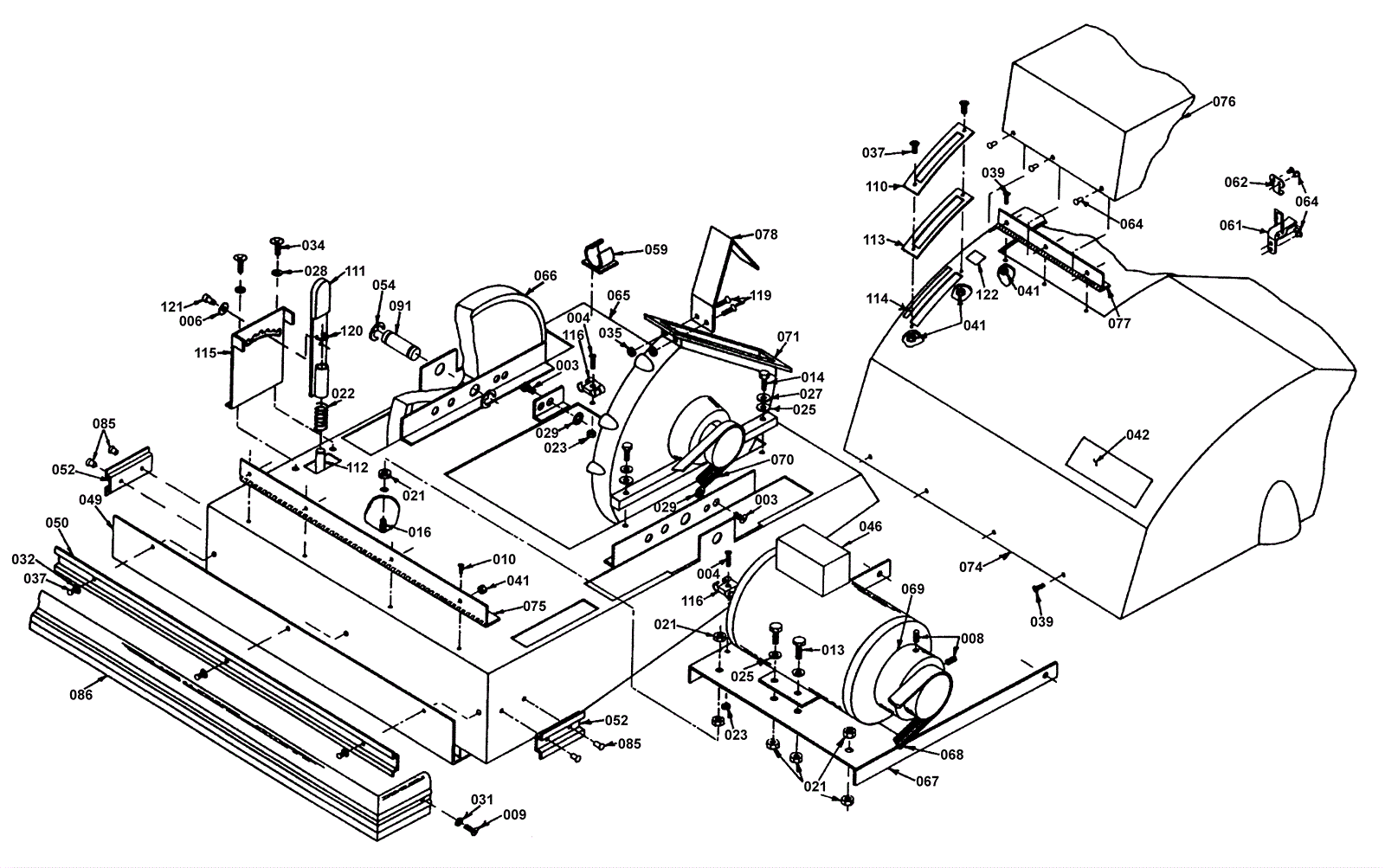

724 Motor and Housing Assembly

#PartDescriptionPriceReqNotesAvailability
003 999-0104 Screw 5/16-18 x 1/2 socket head alloy plain finish $0.99 4 ships same day
004 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 3 ships same day
006 174-2224 Washer flat $1.66 1 usually ships 1-5 days
008 999-0338 Screw 1/4-20 x 1/2 socket head shoulder $8.75 2 ships same day
009 999-0526 Screw 8 x 5/8 pan head slotted zinc $0.99 1 ships same day
010 999-0071 Screw 10-24 x 1/2 flat head slotted zinc plated $0.99 4 ships same day
013 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 10 usually ships 1-5 days
014 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
016 999-0730 Bolt 5/16-18 x 2 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
021 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 16 ships same day
022 174-2225 Compression Spring $5.70 1 usually ships 1-5 days
023 174-2136 Nut 6-32 flange wizz $0.97 4 usually ships 1-5 days
025 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 8 ships same day
027 999-0028 Washer 5/16 split lock plain finish $0.99 10 ships same day
028 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
029 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
031 174-2227 Washer Finish 8 $0.97 1 usually ships 4-14 days
034 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 2 ships same day
035 999-0609 Nut 1/4-20 hex stainless steel $0.99 4 ships same day
037 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 9 ships same day
039 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 7 ships same day
041 174-3171 Nut 10-24 flange wizz $1.20 11 usually ships 4-14 days
042 174-2228 Logo Minuteman Decal $21.42 1 usually ships 1-5 days
046 174-2229 Drive Motor .5HP 24V DC $1,056.10 1 usually ships 4-14 days
049 174-2230 Brush plate Call for price 1 usually ships 1-5 days
050 174-2231 Bumper Clip $23.27 1 usually ships 1-5 days
052 174-2232 Bumper Clip $16.48 2 usually ships 1-5 days
054 174-2233 E ring $0.93 4 usually ships 1-5 days
058 174-0268 Guide wheel $18.10 1 usually ships 4-14 days
059 174-2234 Cord clip $3.48 2 usually ships 1-5 days
061 174-2132 Latch $23.70 2 usually ships 4-14 days
062 174-2133 Latch keeper $6.35 2 usually ships 1-5 days
064 174-2166 Rivet $0.93 11 usually ships 1-5 days
065 174-2235 Base Weld Call for price 1 usually ships 1-5 days
066 174-2236 Wheel $140.11 2 usually ships 4-14 days
067 174-2237 Mount Motor $123.85 1 usually ships 1-5 days
068 174-2130 Poly V Belt $31.67 1 usually ships 4-14 days
069 174-2238 Pulley motor $186.12 1 usually ships 4-14 days
070 174-2239 Poly V Belt $22.81 1 usually ships 4-14 days
071 174-2240 Fan Assembly $662.34 1 usually ships 4-14 days
074 174-2241 Cover $210.63 1 ships same day
075 174-2242 Hinge Base $25.60 1 usually ships 1-5 days
076 174-2243 Cover $135.69 1 ships same day
077 174-2244 Hinge Cover $24.61 1 ships same day
078 174-2245 Baffle $29.10 1 usually ships 1-5 days
085 174-2209 Pop rivet $0.97 6 usually ships 4-14 days
086 174-2131 Bumper (OBSOLETE) $14.87 1 usually ships 1-5 days
091 174-2210 Axle Rear $22.14 2 usually ships 1-5 days
110 174-2211 Cover Plate $53.60 1 usually ships 1-5 days
111 174-2212 Handle adjustment $135.47 1 usually ships 1-5 days
112 999-0326 Screw 1/4-20 x 3/4 flat head phillips zinc plated $0.99 1 ships same day
113 174-2213 Gasket Handle Call for price 1 usually ships 1-5 days
114 174-2214 Decal Handle Adj $8.95 1 usually ships 1-5 days
115 174-2215 Adj Plate $36.72 1 usually ships 1-5 days
116 174-0163 T Clip $4.03 2 usually ships 1-5 days
119 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated $0.99 2 ships same day
120 174-0140 Retaining ring $1.08 1 usually ships 4-14 days
121 174-5010 Shoulder Screw $6.37 1 usually ships 4-14 days
122 174-2217 Disengage Decal $8.87 1 usually ships 1-5 days
N/S 174-2154 Ring Lock Not Shown Call for price 1 usually ships 1-5 days
N/S 174-2155 Nut 5/16-18 acorn brass $0.97 2 usually ships 1-5 days
N/S 174-2158 Screw 9 x 1 1/2 flat head wood Call for price 4 usually ships 1-5 days
N/S 174-2169 Cartoning Not Shown Call for price 1 usually ships 1-5 days
N/S 174-2170 Decal Battery Not Shown $6.56 1 usually ships 1-5 days
N/S 174-2172 Heyco Plug Not Shown Call for price 2 usually ships 1-5 days
N/S 174-2181 Cloth Bag With Zipper $228.97 1 usually ships 4-14 days
N/S 174-2184 Static Chain Not Shown Call for price 1 usually ships 1-5 days
N/S 174-2185 End cap $0.93 1 usually ships 1-5 days
N/S 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
