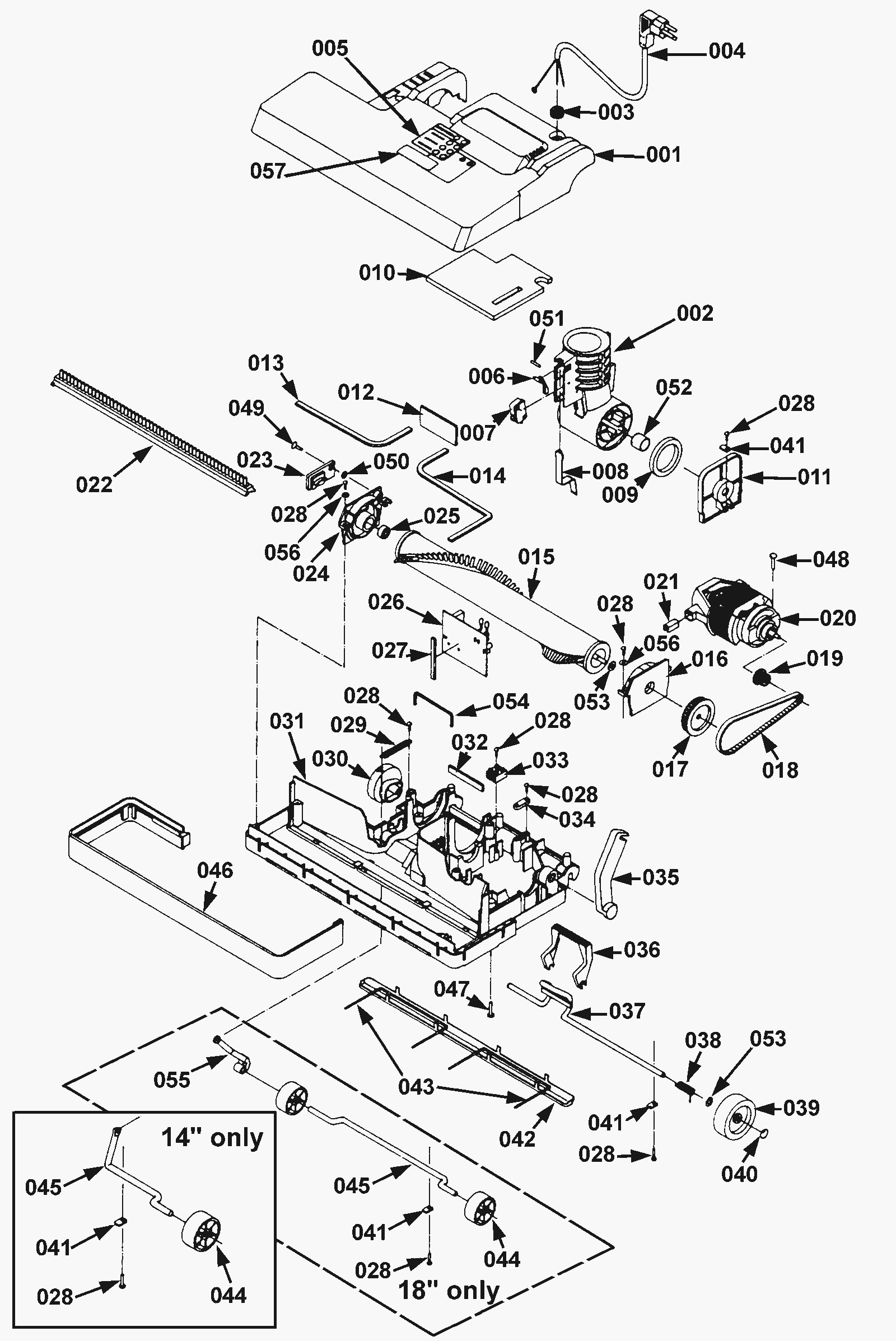

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
174-2060
|
Base top cover |
1 |
(14 inch) |
|
001b |
174-2101
|
Base top cover |
1 |
(18 inch) |
|
002a |
N/A
|
Not available |
1 |
(includes 002b, 006-009, 011, 051 and 052) (Coupling housing assembly) |
|
002b |
174-0223
|
Coupling housing |
1 |
|
|
003 |
174-2061
|
Grommet |
1 |
|
|
004 |
174-2062
|
Power cord with molded plug (OBSOLETE) |
1 |
|
|
005a |
164-2063
|
Pivot bracket (black) |
1 |
|
|
005b |
174-2063
|
Brush monitor decal |
1 |
|
|
005c |
174-2102
|
Brush control decal |
1 |
|
|
006 |
174-2064
|
Finger switch |
1 |
|
|
007 |
174-2065
|
Mini switch |
1 |
|
|
008 |
N/A
|
Not available |
1 |
(Coupling switch cover) |
|
009 |
174-2067
|
Felt ring |
2 |
|
|
010a |
174-2068
|
Brush motor insulator |
1 |
(14 inch) |
|
010b |
174-2103
|
Brush motor insulator |
1 |
(18 inch) |
|
011 |
174-2069
|
Coupling pivot plate |
2 |
|
|
012 |
174-2070
|
Felt strip |
1 |
|
|
013 |
174-2071
|
8 inch intake cover gasket |
1 |
|
|
014 |
174-2072
|
11 inch intake cover gasket |
1 |
|
|
015a |
N/A
|
Not available |
1 |
(14 inch, includes 022a, 025, 053) (Brush core assembly) |
|
015b |
174-2106
|
Brush core assembly |
1 |
(18 inch, includes 022b, 024, 053) |
|
016 |
174-2074
|
Brush drive end plate |
1 |
|
|
017 |
174-2075
|
Brush drive pulley |
1 |
|
|
018a |
174-0010
|
Brush drive belt |
1 |
(14 inch) |
|
018b |
174-2107
|
Brush drive belt |
1 |
(18 inch) |
|
019 |
174-2076
|
Brush motor pulley |
1 |
|
|
020a |
174-2077
|
120V brush motor (OBSOLETE) |
1 |
(14 inch) |
|
020b |
174-2108
|
120V brush motor (OBSOLETE) |
1 |
(18 inch) |
|
021 |
174-0228
|
Carbon brush (sold individually) |
2 |
|
|
022a |
174-2123
|
Brush strip |
1 |
(14 inch) |
|
022b |
174-2110
|
Brush strip (OBSOLETE) |
1 |
(18 inch) |
|
023 |
174-2080
|
Brush strip door |
1 |
|
|
024 |
174-2081
|
Brush end plate |
1 |
|
|
025 |
174-2111
|
Bearing |
2 |
|
|
026 |
174-0490
|
Electric brush control |
1 |
|
|
027 |
174-2083
|
Circuit board cushion |
1 |
|
|
028 |
999-0458
|
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
17 |
|
|
029 |
174-2084
|
Spring |
1 |
|
|
030 |
174-2085
|
Cam |
1 |
|
|
031a |
174-2086
|
Base housing assembly (OBSOLETE) |
1 |
(14 inch, includes 032, 042a, 043) |
|
031b |
174-9039
|
Base housing assembly |
1 |
(18 inch, includes 032, 042b, 043)) |
|
032 |
174-2113
|
Rub strip |
1 |
|
|
033 |
174-0416
|
Terminal block |
1 |
|
|
034 |
174-2087
|
Strain relief cover |
1 |
|
|
035 |
N/A
|
Not available |
1 |
(Side arm) |
|
036 |
N/A
|
Not available |
1 |
Foot release |
|
037a |
N/A
|
Not available |
1 |
Rear axle |
|
037b |
174-2114
|
Rear axle |
1 |
(18 inch) |
|
038 |
174-2090
|
Spring |
1 |
|
|
039a |
174-2091
|
Rear wheel |
2 |
(14 inch) |
|
039b |
174-2115
|
Rear wheel |
2 |
(18 inch) |
|
040 |
174-2092
|
Hub cap |
1 |
|
|
041 |
174-2093
|
Axle retainer plate |
1 |
|
|
042a |
174-2127
|
Metal protector |
2 |
(14 inch) |
|
042b |
174-2116
|
Metal protector |
2 |
(18 inch) |
|
043 |
174-2117
|
Wire formed protector |
2 |
|
|
044a |
174-2094
|
Center wheel |
1 |
(14 inch) |
|
044b |
174-2118
|
Center wheel with bushing |
2 |
(18 inch) |
|
045a |
174-2095
|
Center wheel axle |
1 |
(14 inch) |
|
045b |
174-2119
|
Center wheel axle |
1 |
(18 inch) |
|
046a |
174-2096
|
Bumper |
1 |
(14 inch) |
|
046b |
174-2120
|
Bumper |
1 |
(18 inch) |
|
047 |
999-0359
|
Screw 10-32 x 1 1/4 pan head phillips zinc plated |
5 |
|
|
048 |
999-0438
|
Screw 8-32 x 5/8 pan head phillips zinc plated |
2 |
|
|
049 |
999-0468
|
Bolt M6-1 x 55mm hex head part thread zinc |
2 |
|
|
050 |
174-2097
|
Pushnut bolt retainer |
1 |
|
|
051 |
174-2100
|
Straight knurled pin |
2 |
|
|
052 |
174-2098
|
Bearing |
2 |
|
|
053 |
174-2129
|
Washer .50 x .30 flat |
4 |
|
|
054 |
174-2121
|
Wire protector |
1 |
|
|
055 |
174-2122
|
Cam bracket |
1 |
|
|
056 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
|
|
057 |
174-2099
|
Caution brush start decal (OBSOLETE) |
1 |
|
|
