ROS -17

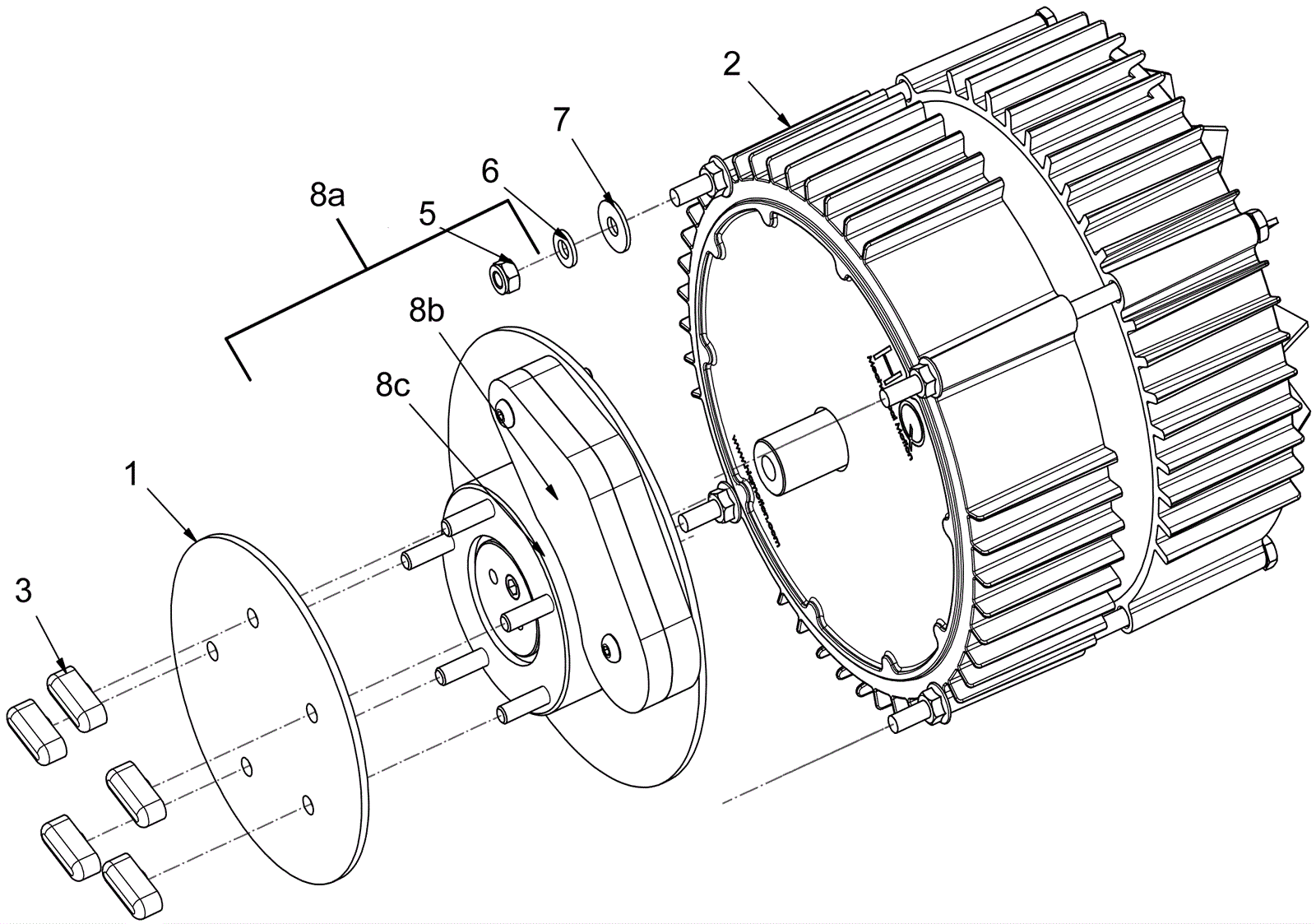

Motor Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
174-4252
Flange
$20.42
1
usually ships 4-14 days
2
174-4253
115V orbital motor kit
$1,009.19
1
usually ships 4-14 days
3
174-4254
Closing key
$18.14
5
usually ships 4-14 days
5
174-3966
Lock nut
$1.08
4
usually ships 4-14 days
6
174-3973
Washer
$1.08
4
usually ships 4-14 days
7
174-3983
Washer
$1.08
4
usually ships 4-14 days
8a
174-4255
Orbital mechanism kit
$464.74
1
(includes 8b-8c)
usually ships 4-14 days
8b
174-4251
Washer
$1.05
1
usually ships 4-14 days
8c
174-4256
Dowel (OBSOLETE)
Call for price
1
usually ships 4-14 days
