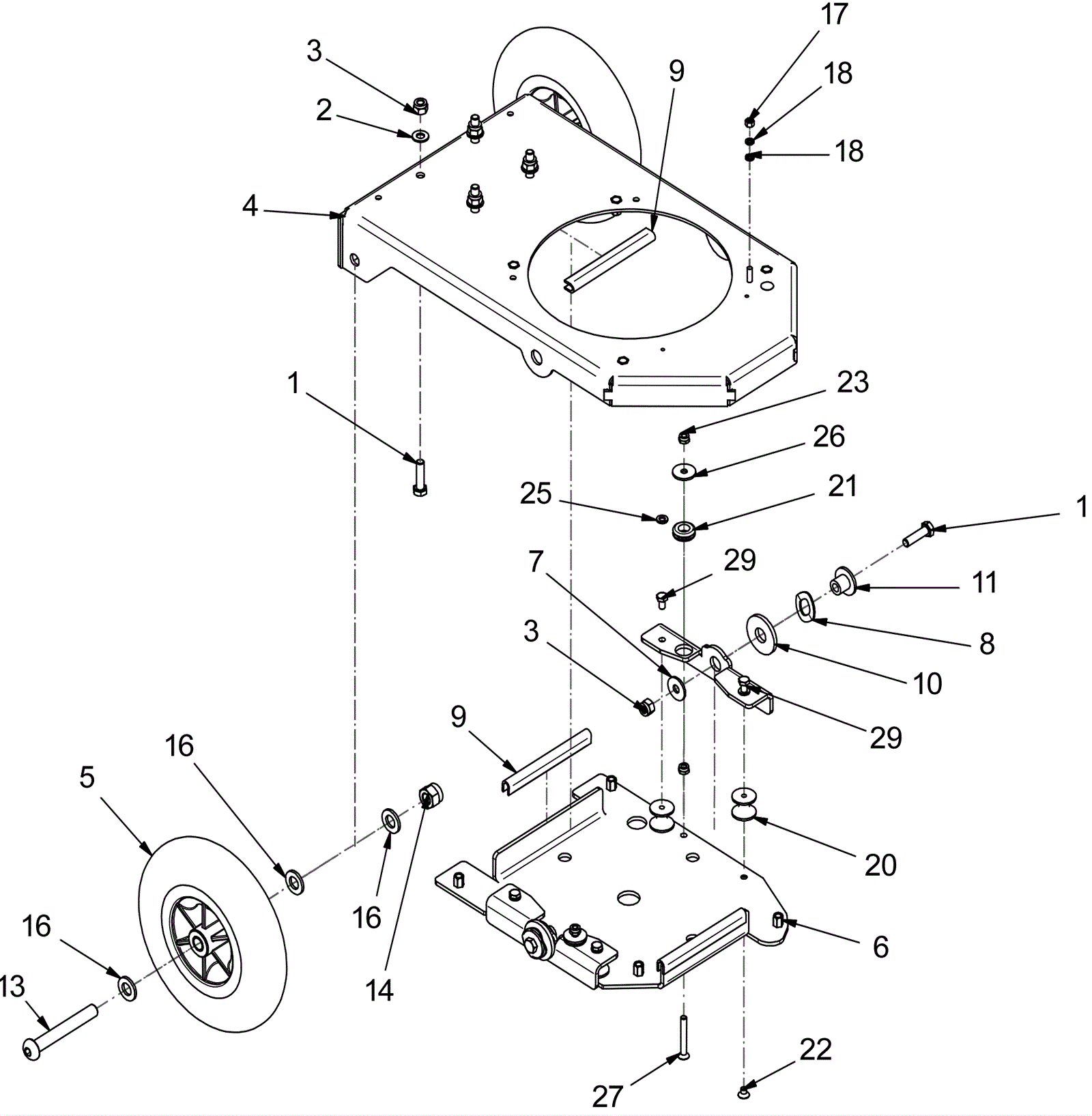

ROS -17 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-4228 Screw M8x30 hex head A2 $1.53 3 usually ships 4-14 days
2 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
3 174-4229 Lock nut M8 inox $1.16 6 usually ships 4-14 days
4 174-4230 Brush base $142.70 1 usually ships 4-14 days
5 174-4231 Wheel $103.28 2 usually ships 4-14 days
6 174-4232 Motor support $84.80 1 usually ships 4-14 days
7 174-4233 Washer inox $1.08 2 usually ships 4-14 days
8 174-4234 Washer $0.90 2 usually ships 4-14 days
9 174-4235 Gasket $1.67 3 usually ships 4-14 days
10 174-4236 Nylon spacer $3.46 2 usually ships 4-14 days
11 174-4237 Bushing $20.68 2 usually ships 4-14 days
13 174-4238 Screw M12x90 galvanized $5.94 2 usually ships 4-14 days
14 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 2 ships same day
16 174-4239 Washer $1.08 6 usually ships 4-14 days
17 174-4240 Nut $1.08 1 usually ships 4-14 days
18 174-4241 Washer $1.08 2 usually ships 4-14 days
20 174-4242 Anti vibration $13.23 4 usually ships 4-14 days
21 174-4243 Rubber terminal $2.71 2 usually ships 4-14 days
22 174-4244 Screw $1.32 4 usually ships 4-14 days
23 999-9131 Nut M6 x 1 nylon lock stainless steel $0.99 4 ships same day
25 174-4245 Washer M6 inox A2 $1.08 4 usually ships 4-14 days
26 174-4246 Washer (OBSOLETE) $1.08 2 usually ships 4-14 days
27 174-4247 Screw $1.70 2 usually ships 4-14 days
29 174-4248 Screw M6x10 A2 $1.08 4 usually ships 4-14 days
N/S 174-4249 Decal $1.16 1 usually ships 4-14 days
N/S 174-4250 Anti vibration support $11.89 2 usually ships 4-14 days
N/S 174-4251 Washer $1.05 1 usually ships 4-14 days
