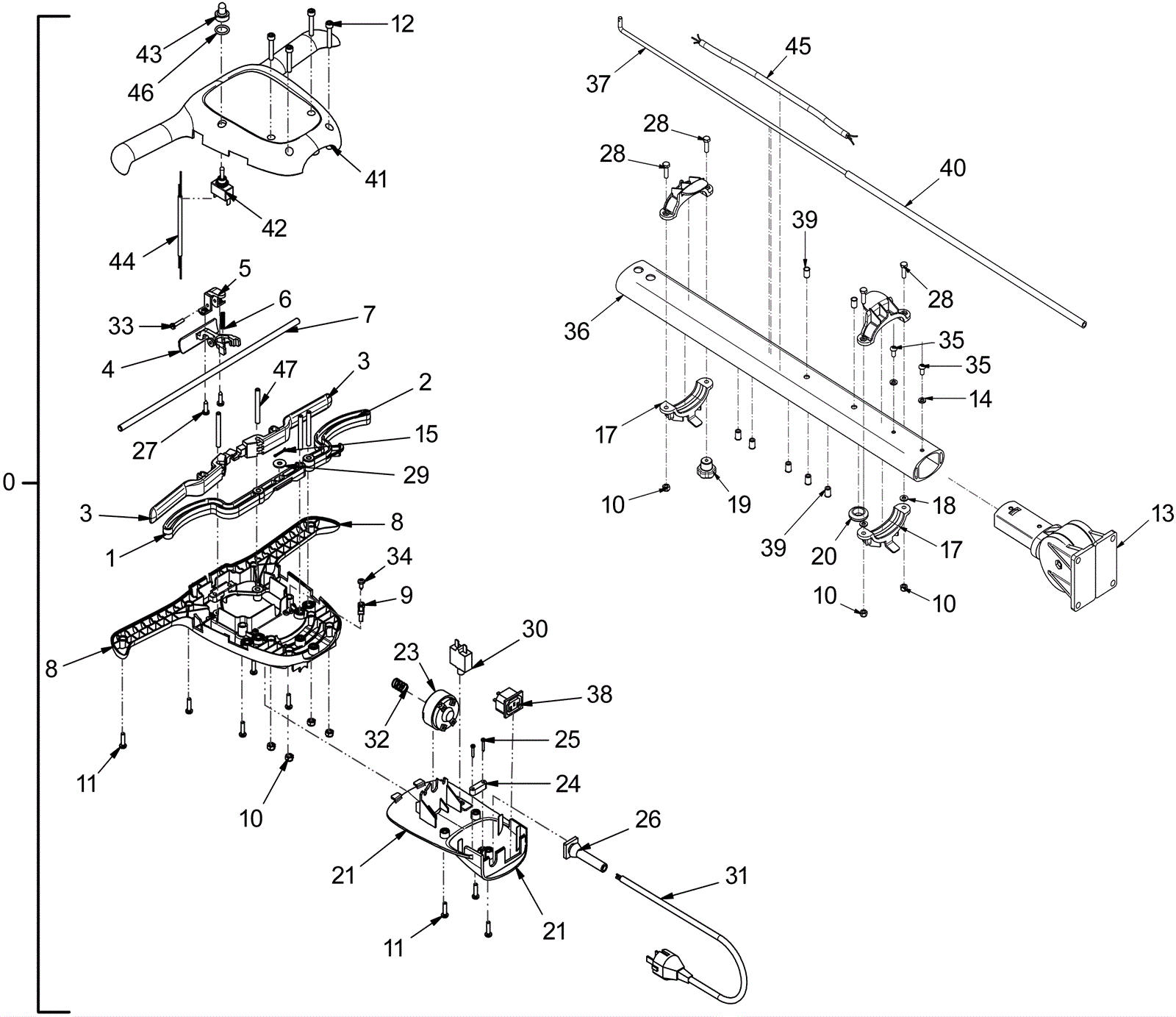

ROS -17 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
0 174-3956 Complete handle bar assembly $589.70 1 (includes 1-47) usually ships 4-14 days
1 174-3957 Lever $9.44 1 usually ships 4-14 days
2 174-3958 Lever $8.52 1 usually ships 4-14 days
3 174-3959 Handle switch $4.30 2 usually ships 4-14 days
4 174-3960 Lever $9.48 1 usually ships 4-14 days
5 174-3961 Support $5.00 1 usually ships 4-14 days
6 174-3962 Spring $3.35 1 usually ships 4-14 days
7 174-3963 Reinforcing bar $16.13 1 usually ships 4-14 days
8 174-3964 Handle bar body $15.38 1 usually ships 4-14 days
9 174-3965 Clamp $3.54 1 usually ships 4-14 days
10 174-3966 Lock nut $1.08 7 usually ships 4-14 days
11 174-3967 Screw $1.08 9 usually ships 4-14 days
12 174-3968 Screw $1.08 4 usually ships 4-14 days
13 174-3969 Joint $189.63 1 usually ships 4-14 days
14 174-3970 Washer $1.32 2 usually ships 4-14 days
15 174-3971 Split pin $1.08 1 usually ships 4-14 days
17 174-3972 Tank support $5.50 2 usually ships 4-14 days
18 174-3973 Washer $1.08 2 usually ships 4-14 days
19 174-3974 Knob $10.42 1 usually ships 4-14 days
20 174-3975 Fairlead $2.50 1 usually ships 4-14 days
21 174-3976 Rear door $8.83 1 usually ships 4-14 days
23 174-3977 Staring switch $58.96 1 usually ships 4-14 days
24 174-3978 Cable grip $1.08 1 usually ships 4-14 days
25 174-3979 Screw self-tapping thread cutting $1.08 2 usually ships 4-14 days
26 174-3980 Fairlead $1.94 1 usually ships 4-14 days
27 174-3981 Screw $1.08 2 usually ships 4-14 days
28 174-3982 Screw M6x20 $1.08 4 usually ships 4-14 days
29 174-3983 Washer $1.08 1 usually ships 4-14 days
30 174-3984 Circuit breaker $33.34 1 usually ships 4-14 days
31 174-3985 Cable $9.93 1 usually ships 4-14 days
32 174-3986 Spring $1.08 1 usually ships 4-14 days
33 174-3987 Screw M4x20 $1.28 1 usually ships 4-14 days
34 174-3988 Screw $1.08 1 usually ships 4-14 days
35 174-3989 Screw $1.08 2 usually ships 4-14 days
36 174-3990 Pipe $95.58 1 usually ships 4-14 days
37 174-3991 Handle lever pole $22.58 1 usually ships 4-14 days
38 174-3992 Socket $10.76 1 usually ships 4-14 days
39 174-3993 Insert (OBSOLETE) Call for price 7 usually ships 4-14 days
40 174-3994 Hose $9.26 1 usually ships 4-14 days
41 174-3995 Cover $21.62 1 usually ships 4-14 days
42 174-3996 Toggle switch $44.84 1 usually ships 4-14 days
43 174-3997 Toggle switch cover $13.81 1 usually ships 4-14 days
44 174-3998 On/Off cable $6.21 1 usually ships 4-14 days
45 174-3999 115V cable $39.30 1 usually ships 4-14 days
46 174-4000 O-ring $0.90 1 usually ships 4-14 days
47 174-4226 Spring pin $3.88 4 usually ships 4-14 days
N/S 174-4227 Circuit breaker cap $6.35 1 usually ships 4-14 days
