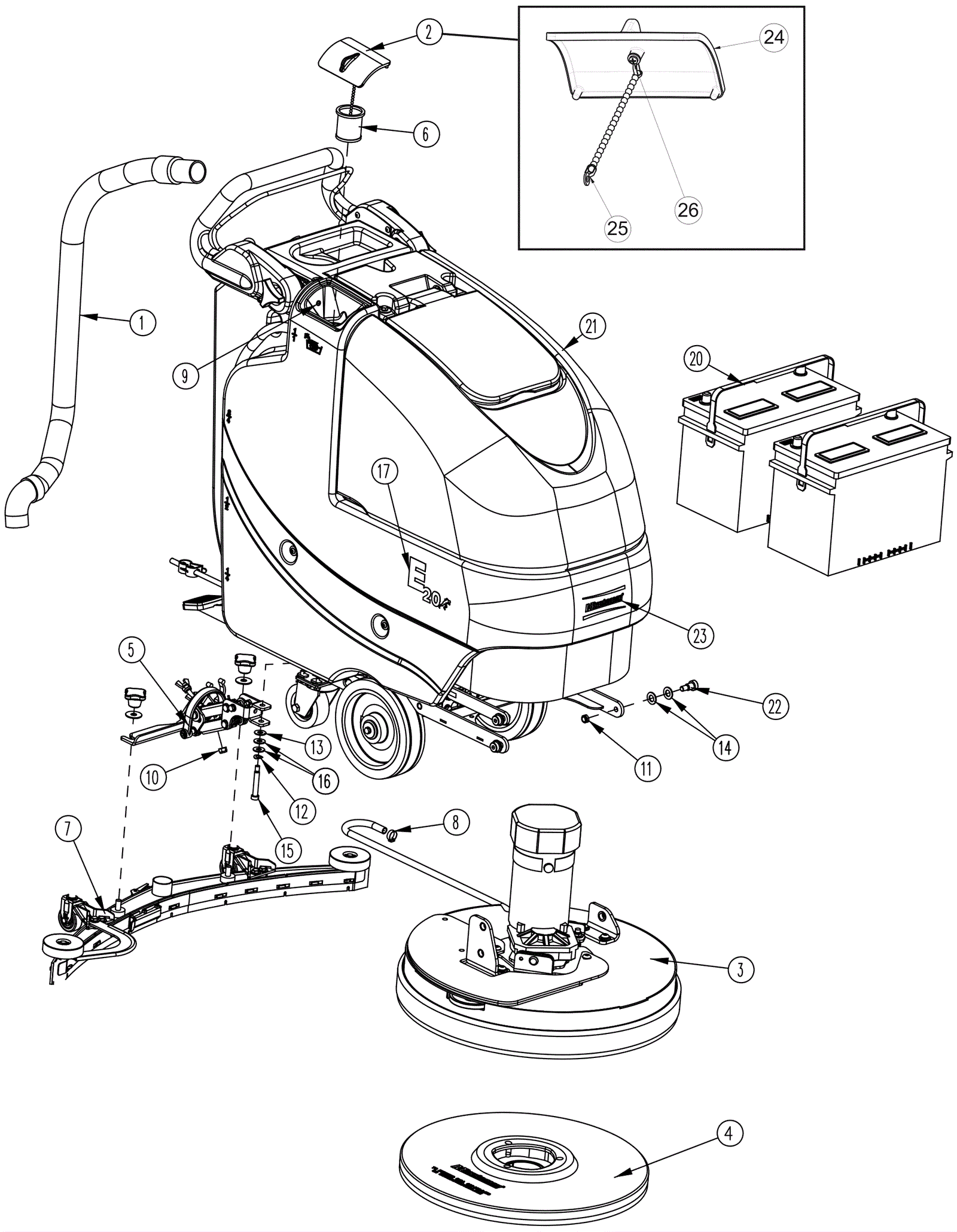

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
174-8186
|
Recovery vac hose with cuff (clear) |
1 |
(E20) |
|
1b |
274-6437
|
HOSE, PU RECOVERY, CLEAR |
1 |
(H20) |
|
2 |
174-8187
|
Solution tank lid assembly |
1 |
(includes 23-25) |
|
3b |
374-0345
|
20 inch deck assembly |
1 |
(traction drive) |
|
3a |
174-8201
|
Brush deck assembly 20 inch |
1 |
(brush drive) |
|
4 |
174-8168
|
Pad driver |
1 |
|
|
5 |
174-8343
|
Squeegee lift mechanism assembly |
1 |
|
|
6a |
174-8189
|
Fill port filter |
1 |
|
|
6b |
274-4994
|
FILTER, FILL PORT 4 inch |
1 |
|
|
7a |
174-8203
|
Squeegee assembly 34 inch |
1 |
(brush drive) |
|
7b |
274-9436
|
34 inch squeegee assembly curved |
1 |
(traction drive) |
|
8 |
997-2001
|
Hose clamp |
1 |
|
|
9 |
174-8192
|
Screw 10 x 3/4 stainless steel |
1 |
|
|
10 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
(brush drive) |
|
11 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
3 |
(brush drive) |
|
12 |
999-0120
|
Washer 3/8 SAE flat |
1 |
|
|
13 |
174-8193
|
Washer .390 x .880 x .062 flat |
1 |
|
|
14 |
999-0566
|
Washer 1/2 flat nylon |
6 |
(brush drive) |
|
15 |
174-8194
|
Bolt 5/16-18 X 2 3/8 shoulder |
1 |
|
|
16 |
999-1363
|
Washer 7/8 flat stainless steel |
2 |
|
|
17a |
174-8204
|
E20 decal |
2 |
(E20) |
|
17b |
174-3709
|
H20 decal |
2 |
(H20) |
|
18 |
174-8196
|
Jumper cable assembly red 4G 12 inch |
1 |
|
|
19 |
174-8197
|
Battery cable assembly |
1 |
|
|
20a |
162-0042
|
12V 115Ah AGM battery (Group 31) (SNSR) |
2 |
|
|
20b |
174-3870
|
12V 105Ah wet Tojan battery |
2 |
|
|
20c |
162-0057
|
12V 150Ah wet battery |
2 |
|
|
21a |
374-0270
|
E17 BRUSH DRV MAIN ASSY, 120V CHARGER |
1 |
|
|
21b |
174-3712
|
Brush drive base assembly 230V charger |
1 |
|
|
21c |
174-3866
|
115V electric brush drive main assembly |
1 |
(electric model) |
|
22 |
174-5325
|
Bolt 1/2 x 1/2 shoulder |
3 |
(brush drive) |
|
23 |
174-8198
|
Minuteman decal |
1 |
|
|
24 |
174-8164
|
Solution tank lid |
1 |
|
|
25 |
174-8199
|
Beaded chain with eyelets stainless steel |
1 |
|
|
26 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
1 |
|
|
N/S |
174-3868
|
Positive battery cable |
1 |
(traction drive) |
|
N/S |
174-3869
|
Negative battery cable |
1 |
(traction drive) |
|
N/S |
274-3816
|
Center-Lok 3 pad holder |
1 |
|
|
N/S |
274-5272
|
PAD GRAB-II |
1 |
|
|
N/S |
174-9037
|
Nylon scrubbing brush |
1 |
|
|
N/S |
174-9604
|
Heavy grit stripping brush - 80 grit |
1 |
|
|
N/S |
174-9605
|
Medium grit scrubbing brush - 120 grit |
1 |
|
|
N/S |
274-8186
|
BRUSH, 20 inch LIGHT-MED PP.5 A/S, WHITE |
1 |
|
|
N/S |
274-8320
|
20 inch light-medium brush |
1 |
|
|
N/S |
274-9163
|
BRUSH, 20 inch MEDIUM NYLON 600GR. A/S, GREY |
1 |
|
|
N/S |
274-8144
|
BRUSH, 20 inch MEDIUM-HEAVY PP.8 A/S |
1 |
|
|
N/S |
274-8945
|
BRUSH, 20 inch HEAVY NYLON 180GR. A/S, GREY |
1 |
|
|
N/S |
274-8993
|
BRUSH, 20 inch HEAVY-2 NYL 120GR. A/S, GREEN |
1 |
|
|
