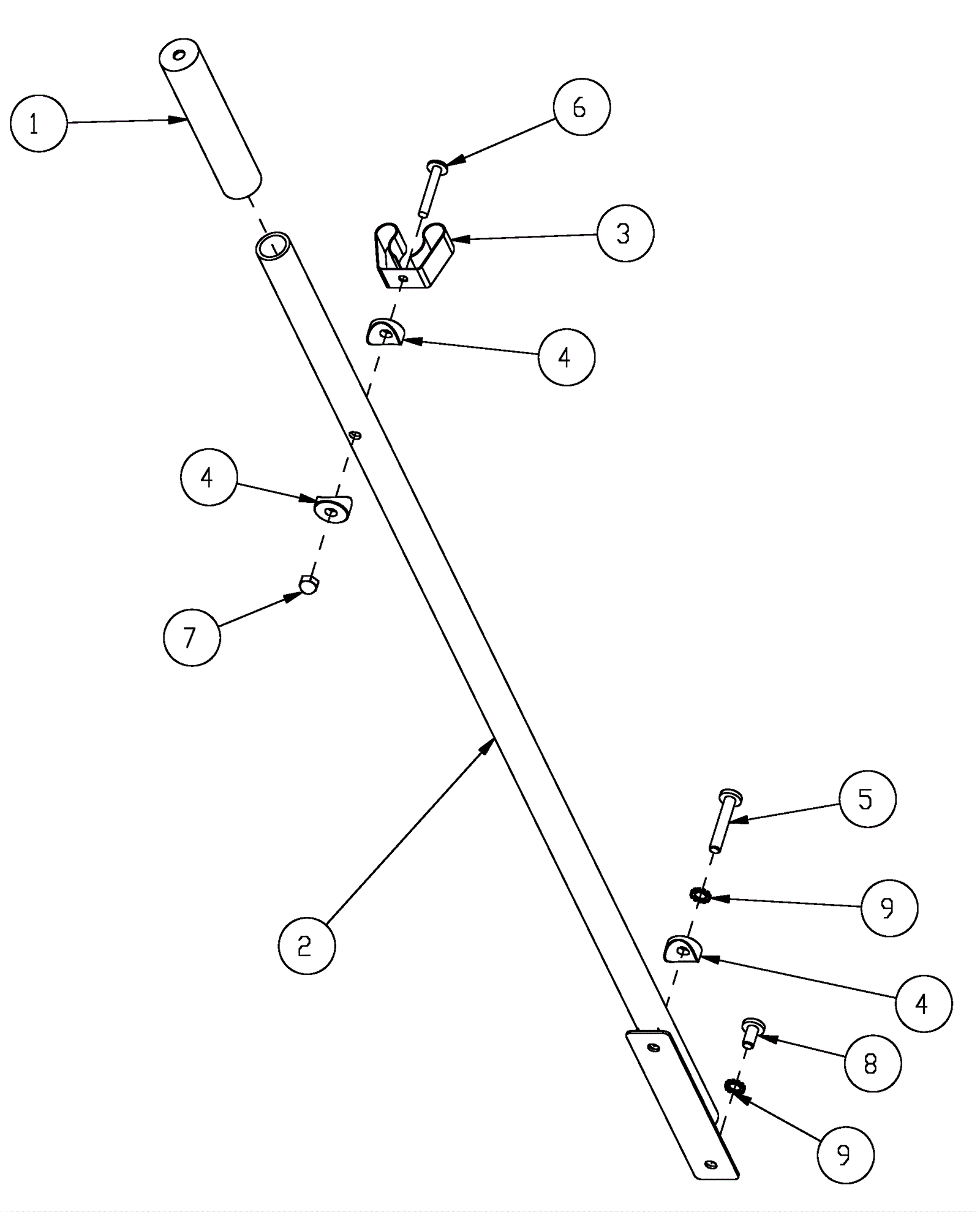

MIST-IT Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-9281 Handle grip (black) $7.68 1 usually ships 4-14 days
2 174-9282 Handle weldment $56.43 1 usually ships 4-14 days
3 174-9283 Spring clip 3/4 to 1-1/8 $1.73 1 usually ships 4-14 days
4 174-9284 Spacer $0.95 3 usually ships 4-14 days
5 174-9285 Screw M6-1.00 x 35 pan head zinc plated $0.95 1 usually ships 4-14 days
6 174-5072 Screw 10-24 x 1-1/4 $0.97 1 usually ships 4-14 days
7 999-0345 Nut 10-24 acorn brass $0.99 1 ships same day
8 174-9286 Screw M6-1.0 x 12 pan head phillips zinc plated $0.95 1 usually ships 4-14 days
9 174-9287 Washer serrated lock $0.95 2 usually ships 4-14 days
