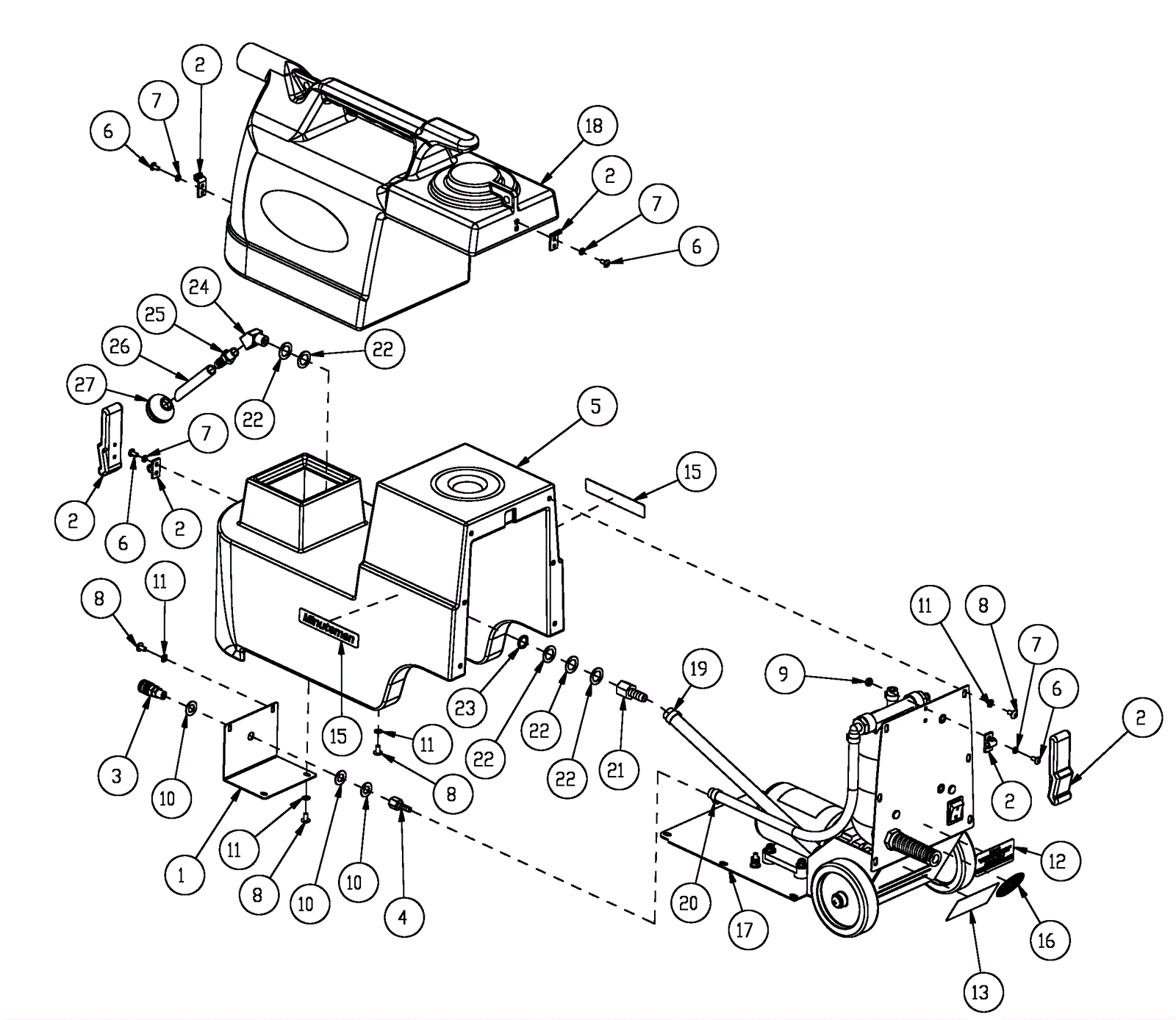

MIST-IT Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-3204 Quick disconnect plate $12.17 1 usually ships 4-14 days
2 174-3200 Latch $38.72 2 usually ships 4-14 days
3 174-3205 Quick connect 2202 coupler Female $22.19 1 ships same day
4 174-3202 Brass fitting $3.42 1 usually ships 4-14 days
5 174-9277 Solution tank $106.67 1 usually ships 4-14 days
6 174-3199 Screw 8-32 x 3/8 machine stainless steel $1.20 8 usually ships 1-5 days
7 174-3206 Washer 8 inter tooth $0.97 8 usually ships 1-5 days
8 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 16 ships same day
9 174-3197 Nut 8-32 keps stainless steel $0.97 2 usually ships 1-5 days
10 174-3203 Washer 13/32 x 1/32 flat stainless steel $1.08 3 ships same day
11 999-0089 Washer #10 internal star lock zinc plated $0.99 16 ships same day
12 174-3177 Warning decal $1.24 1 usually ships 1-5 days
13 174-5775 Serial nameplate decal $1.24 1 usually ships 1-5 days
15 274-1113 DECAL-MMAN DG/LG .75 X 4.18 $6.37 2 usually ships 1-5 days
16 174-9278 Made in USA decal $11.63 1 usually ships 4-14 days
17 174-9279 Base plate $410.92 1 usually ships 4-14 days
18 174-9280 Tank (grey) $75.32 1 usually ships 4-14 days
19 997-2001 Hose clamp $2.42 1 ships same day
20 997-2001 Hose clamp $2.42 1 ships same day
21 174-0222 Hose barb $3.97 1 usually ships 4-14 days
22 999-0855 Washer 9/16 SAE flat $0.99 5 ships same day
23 174-3082 O-ring $0.97 1 usually ships 4-14 days
24 174-3079 1/4 inch brass elbow $10.63 1 usually ships 1-5 days
25 174-0078 Barb $6.66 1 usually ships 4-14 days
26 174-3194 Solution hose $1.33 1 usually ships 1-5 days
27 174-3193 Strainer $17.31 1 usually ships 1-5 days
