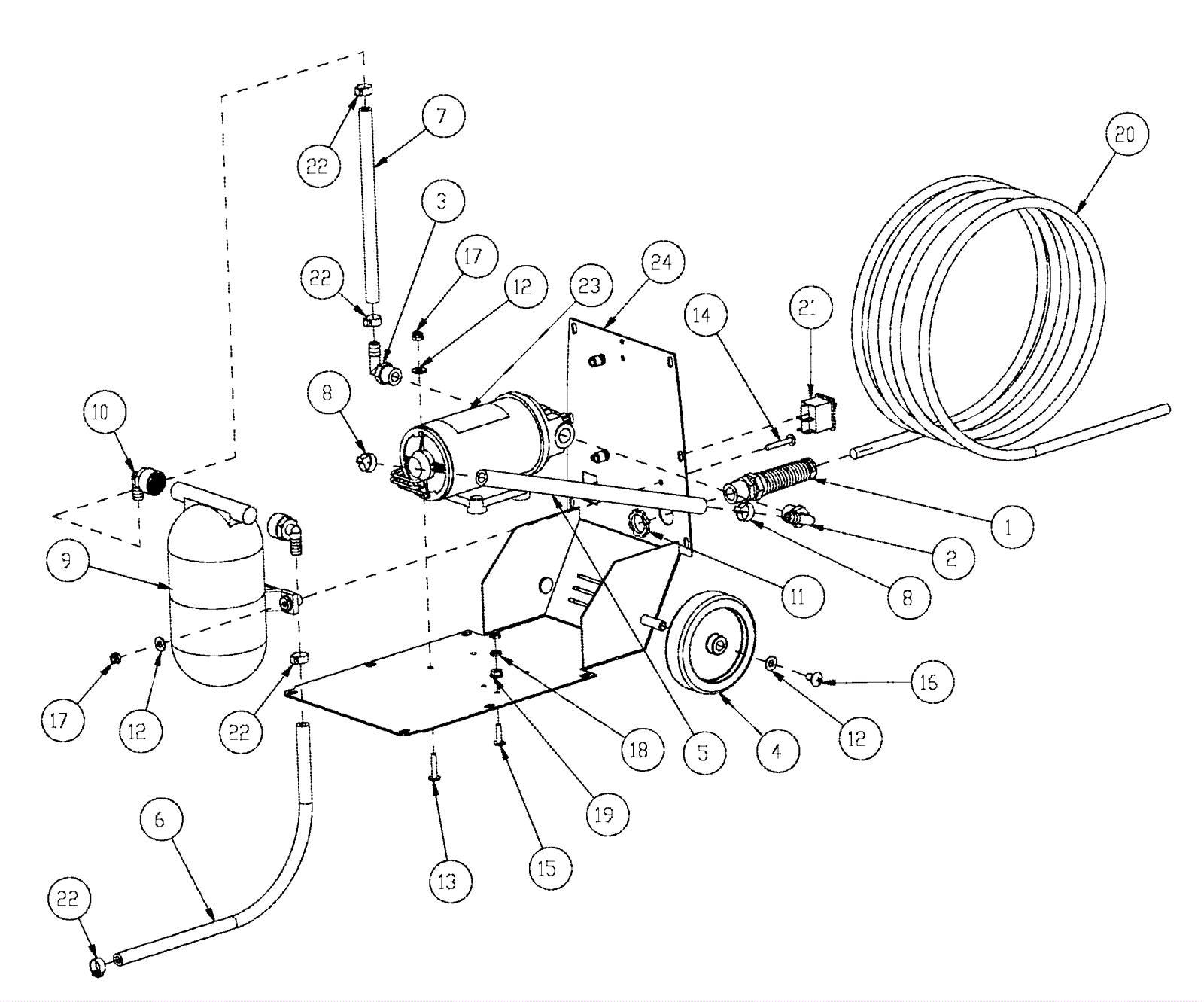

MIST-IT Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-3053 Strain relief $9.31 1 usually ships 4-14 days
2 174-0083 90 degree elbow barb $3.54 1 usually ships 4-14 days
3 174-3175 1/4 90 degree barb x 3/8 MPT $1.70 1 usually ships 1-5 days
4 174-3155 Wheel 4 inch $6.48 2 usually ships 1-5 days
5 174-3168 Hose input 3/8 ID x 12 $7.71 1 usually ships 1-5 days
6 174-9270 Hose 1/4 x 27 (nylon) $3.02 1 usually ships 4-14 days
7 174-9271 Hose 1/4 x 8 (nylon) $1.10 1 usually ships 4-14 days
8 997-2001 Hose clamp $2.42 2 ships same day
9 174-9272 Accumulator $60.55 1 usually ships 4-14 days
10 174-9273 90 degree elbow fitting (nylon) $1.88 2 usually ships 4-14 days
11 174-3091 Nut 1/2 pipe lock $0.97 1 usually ships 4-14 days
12 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
13 174-3187 Screw 10-24 x 1 stainless steel $0.97 4 ships same day
14 174-5072 Screw 10-24 x 1-1/4 $0.97 2 usually ships 4-14 days
16 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 2 ships same day
17 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 6 ships same day
18 217-0111 Nut 10-24 hex (OBSOLETE) $1.85 2 usually ships 1-5 days
19 174-3171 Nut 10-24 flange wizz $1.20 1 usually ships 4-14 days
20 174-9274 18/3 power cord 25 foot $31.36 1 usually ships 4-14 days
21 174-3367 On/off switch $7.58 1 usually ships 4-14 days
22 997-2001 Hose clamp $2.42 4 ships same day
23 174-9275 115V 100psi pump assembly $207.90 1 usually ships 4-14 days
24 174-9276 Frame $62.50 1 usually ships 4-14 days
