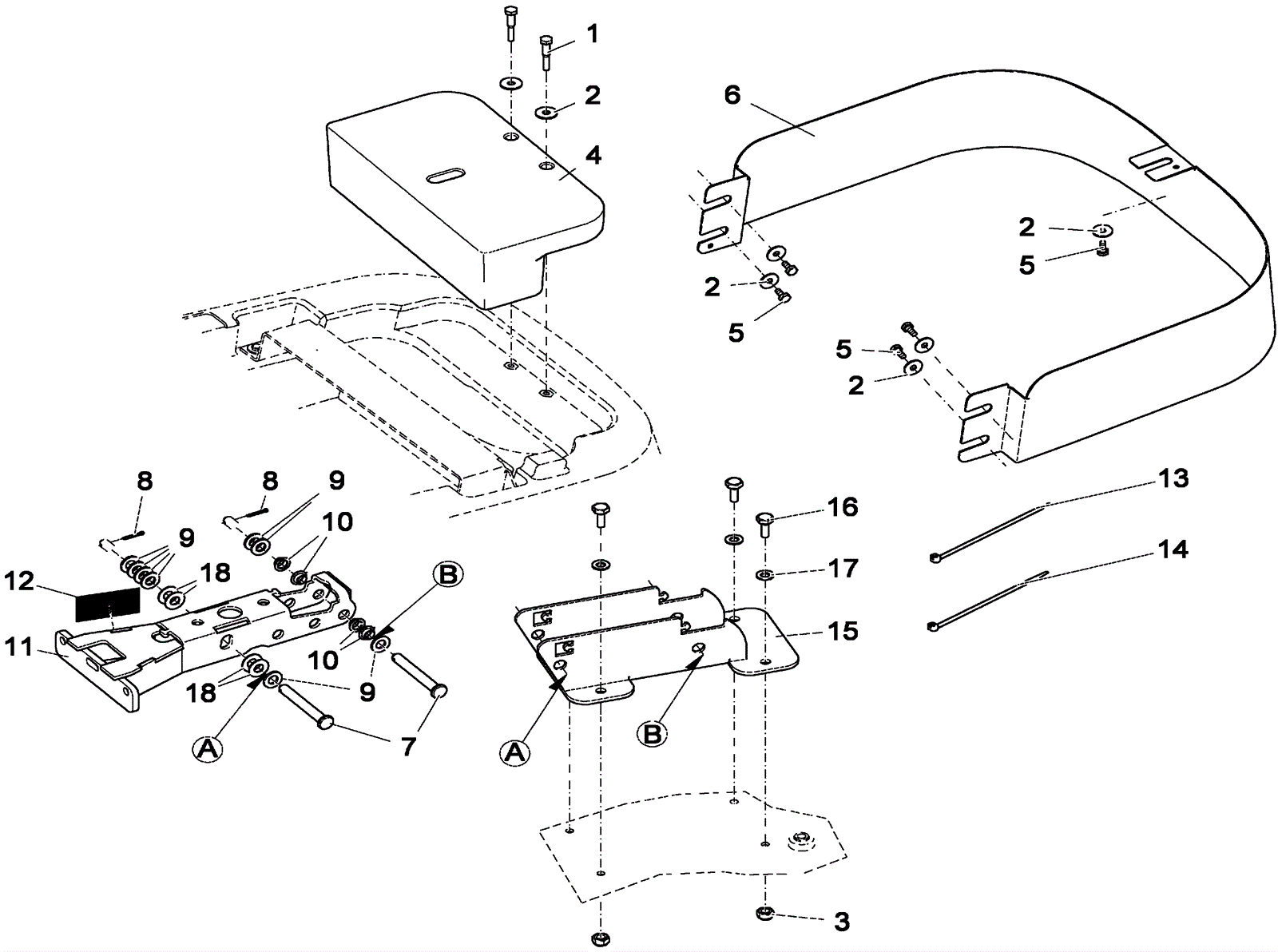

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-4193
|
Screw |
2 |
|
|
2 |
999-9097
|
Washer M8 flat stainless steel |
7 |
|
|
3 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
4 |
274-9385
|
WEIGHT |
1 |
|
|
5 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
5 |
|
|
6 |
174-4194
|
Covering |
1 |
|
|
7 |
174-4195
|
Bolt |
2 |
|
|
8 |
174-8991
|
Cotter pin |
2 |
|
|
9 |
374-0693
|
Washer M13 |
8 |
|
|
10 |
174-8974
|
Bushing |
4 |
|
|
11 |
274-7130
|
ROCKER |
1 |
|
|
12 |
274-0641
|
BACKING FILM |
1 |
|
|
13 |
997-2102
|
Cable tie |
3 |
|
|
14 |
174-6185
|
Cable tie large |
2 |
|
|
15 |
174-4196
|
Retainer |
1 |
|
|
16 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
2 |
|
|
17 |
174-8888
|
Washer |
2 |
|
|
18 |
174-4197
|
Disk |
4 |
|
|
