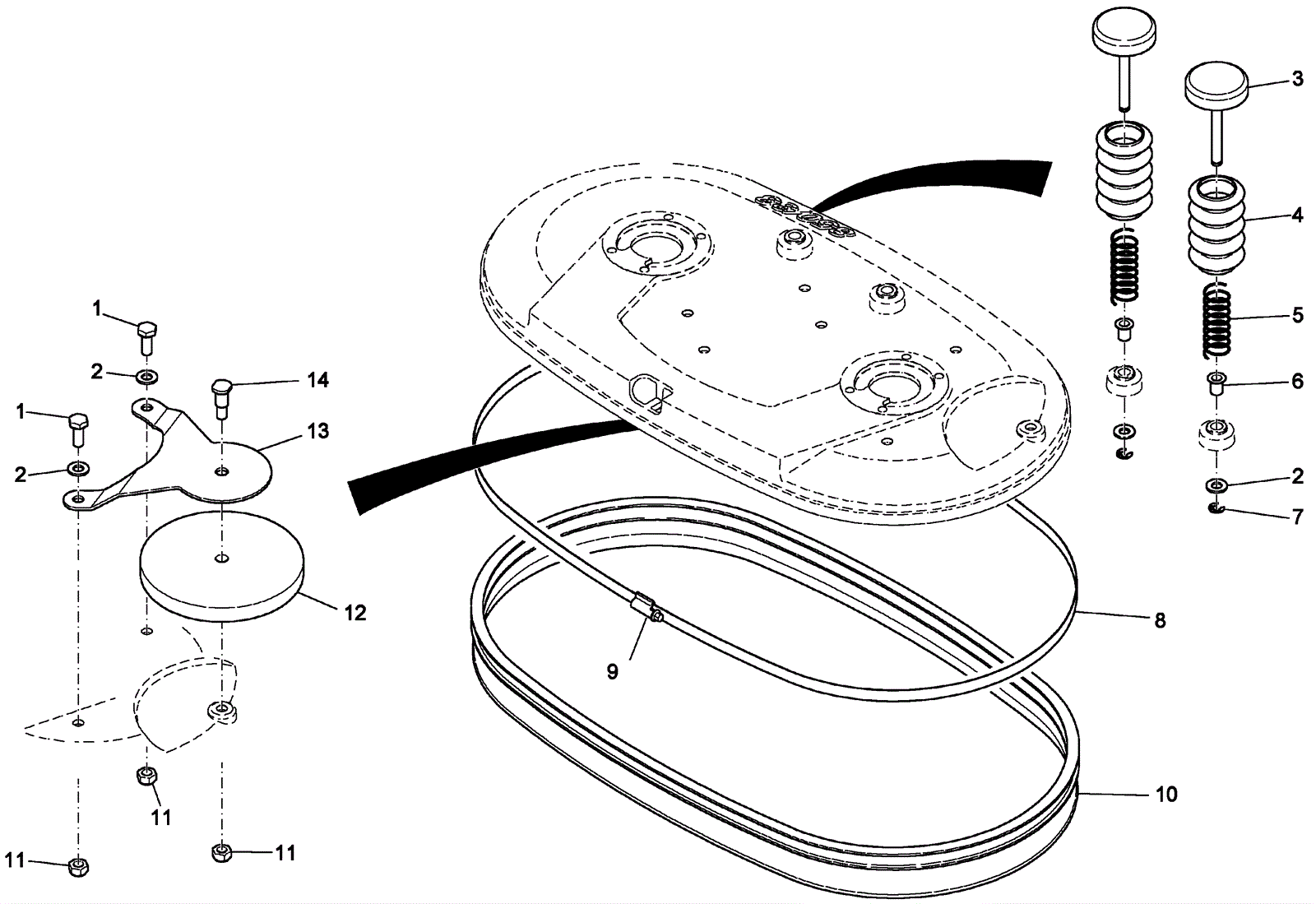

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
2 |
|
|
2 |
174-8888
|
Washer |
2 |
|
|
3 |
174-8483
|
Ejector |
2 |
|
|
4 |
174-8484
|
Bellow |
2 |
|
|
5 |
174-8485
|
Compression spring |
2 |
|
|
6 |
174-8977
|
Slide bearing |
2 |
|
|
7 |
174-9618
|
Retaining washer |
2 |
|
|
8 |
174-8449
|
Tension band |
96 in |
|
|
9 |
174-8450
|
Tension band lock |
1 |
|
|
10 |
274-5298
|
SEALING STRIP |
1 |
|
|
11 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
3 |
|
|
12 |
274-1899
|
DEFLECTOR ROLLER |
1 |
|
|
13 |
174-4192
|
Retainer |
1 |
|
|
14 |
174-9617
|
Screw |
1 |
|
|
