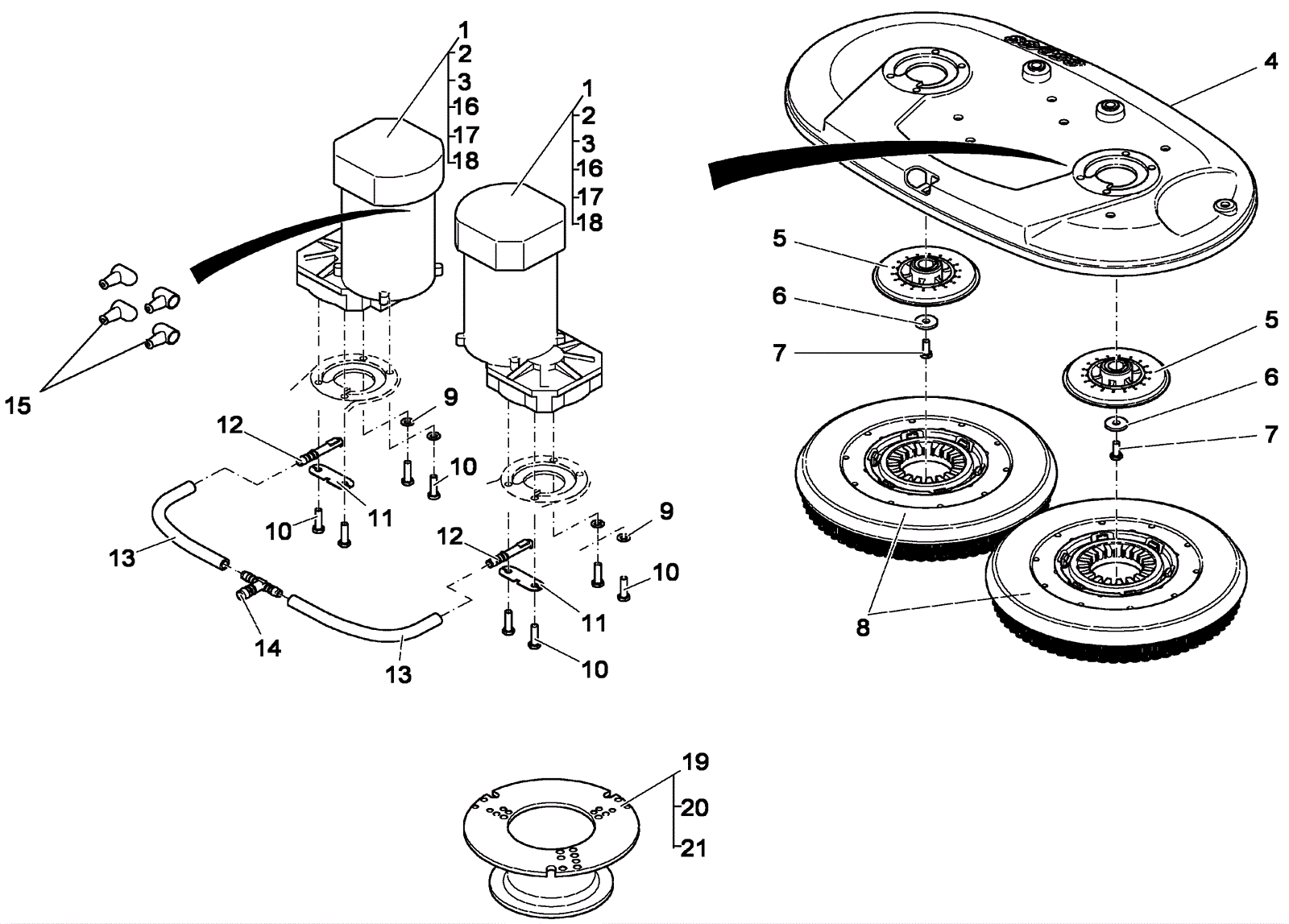

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-4189
|
Motor |
2 |
|
|
2 |
174-8892
|
Fitting key |
2 |
|
|
3 |
174-8893
|
Carbon brush (set of 4) |
1 |
|
|
4 |
174-4190
|
Housing |
1 |
|
|
5 |
274-6006
|
CARRIER |
2 |
|
|
6 |
174-8895
|
Washer |
2 |
|
|
7 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
2 |
|
|
8 |
274-8415
|
PAD DRIVER 85CM WITH CENTER LOCK |
2 |
(includes 19-21) |
|
9 |
999-9097
|
Washer M8 flat stainless steel |
4 |
|
|
10 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
8 |
|
|
11 |
174-8896
|
Sheet metal |
2 |
|
|
12 |
174-8897
|
Spray tube |
2 |
|
|
13 |
174-8898
|
Hose |
26 in |
|
|
14 |
174-8899
|
T-reducer |
1 |
|
|
15 |
174-8900
|
Protection cap |
4 |
|
|
16 |
174-8904
|
Spring |
1 |
|
|
17 |
174-8905
|
Gear |
1 |
|
|
18 |
174-8906
|
Circlip |
1 |
|
|
19 |
174-8901
|
Center lock |
1 |
|
|
20 |
174-8902
|
Self tapping screw |
6 |
|
|
21 |
174-8903
|
Center lock retainer |
1 |
|
|
