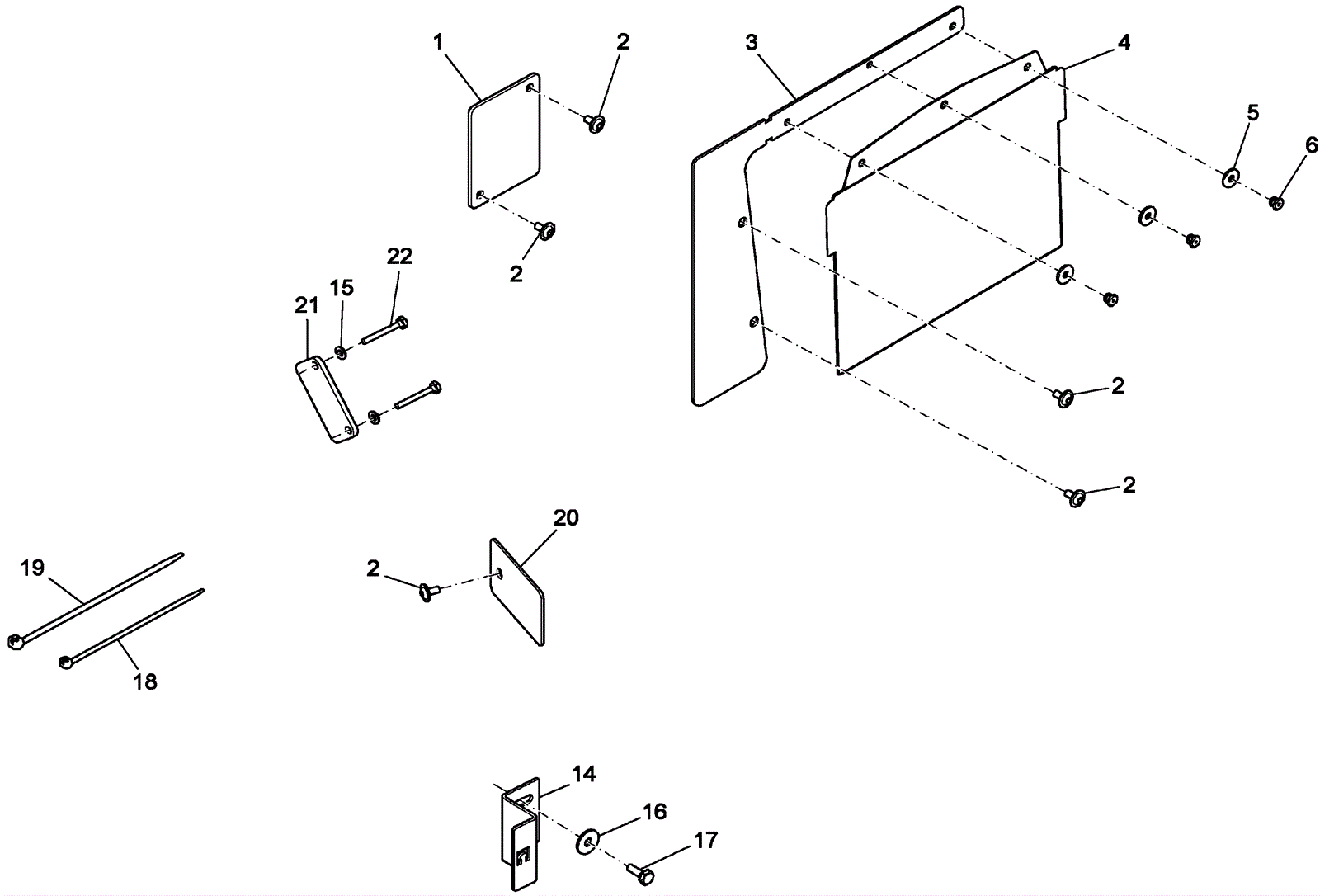

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-8985
|
Cover plate |
1 |
|
|
2 |
999-1514
|
Screw M6-1 x 10mm button head socket stainless steel |
7 |
|
|
3 |
174-8986
|
Bracket |
1 |
|
|
4 |
174-8987
|
Pouch |
1 |
|
|
5 |
999-9100
|
Washer M5 flat stainless steel |
3 |
|
|
6 |
174-8988
|
Blind rivet |
3 |
|
|
14 |
174-4184
|
Clamping plate |
1 |
|
|
15 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
16 |
999-9097
|
Washer M8 flat stainless steel |
1 |
|
|
17 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
1 |
|
|
18 |
997-2102
|
Cable tie |
10 |
|
|
19 |
174-6185
|
Cable tie large |
2 |
|
|
20 |
174-8989
|
Wiring retainer plate |
1 |
|
|
21 |
174-4185
|
Distance plate |
1 |
|
|
22 |
999-0781
|
Screw M6-1 x 45mm hex head |
2 |
|
|
N/S |
174-4179
|
W1 wiring harness |
1 |
|
|
N/S |
274-9527
|
WIRING HARNESS W2 |
1 |
|
|
N/S |
374-3197
|
W3 wiring harness |
1 |
|
|
N/S |
174-4181
|
W9 wiring harness |
1 |
|
|
N/S |
274-9434
|
WIRING HARNESS W11- BATTERY PACK |
1 |
|
|
N/S |
174-6601
|
2 piece cable set |
1 |
|
|
N/S |
174-4183
|
Cable loom |
1 |
|
|
N/S |
174-4186
|
Cable loom |
1 |
|
|
