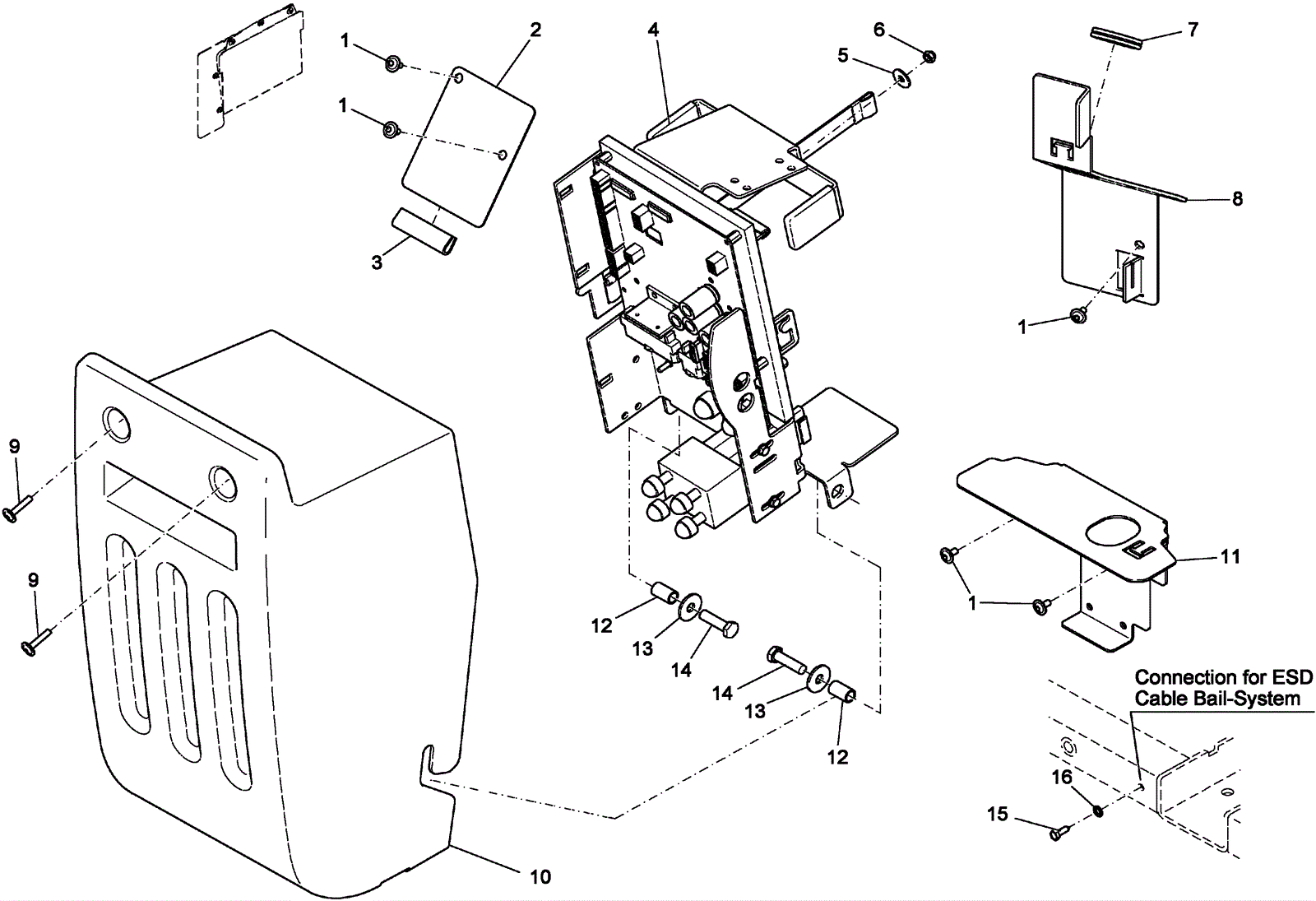

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1514
|
Screw M6-1 x 10mm button head socket stainless steel |
5 |
|
|
2 |
174-8981
|
Cover plate |
1 |
|
|
3 |
174-8982
|
Edge protection |
2 in |
|
|
4 |
174-4225
|
Control board complete assembly |
1 |
|
|
5 |
999-1261
|
Washer M6 flat stainless steel |
1 |
|
|
6 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
7 |
174-3494
|
Cable sleeve |
1 |
|
|
8 |
174-3495
|
Cover plate bracket |
1 |
|
|
9 |
174-8494
|
Screw M6-1 x 25mm with flange |
2 |
|
|
10 |
174-8984
|
Electrical panel cover |
1 |
|
|
11 |
274-2565
|
CLAMPING PLATE |
1 |
|
|
12 |
174-8983
|
Bushing |
2 |
|
|
13 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
14 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
2 |
|
|
15 |
174-3496
|
Self tapping screw |
1 |
|
|
16 |
999-1594
|
Washer M5 external lock stainless steel |
1 |
|
|
