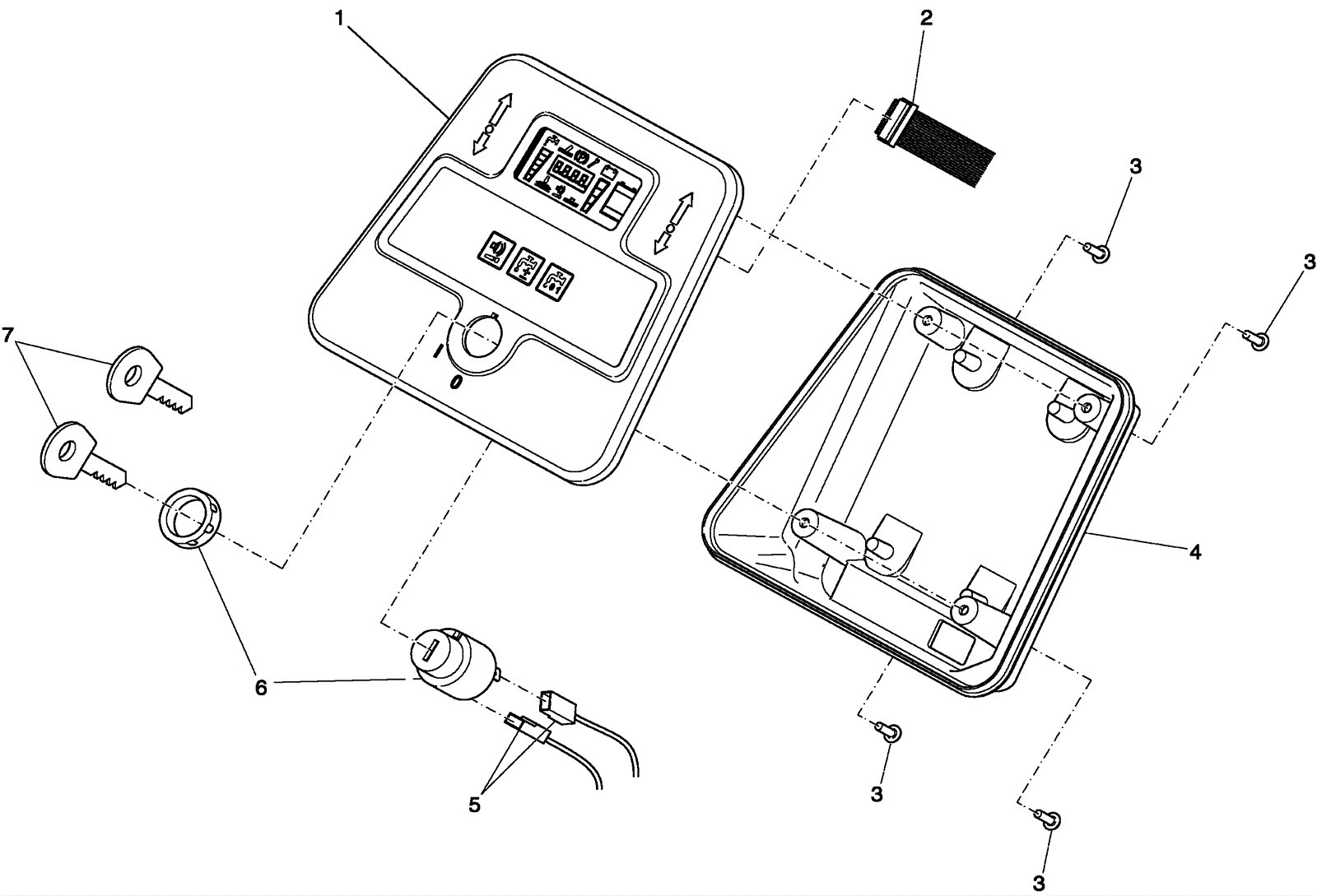

E33 XL Console Assembly

#PartDescriptionPriceReqNotesAvailability
0 274-8493 DASH PANEL, E24 $424.99 1 (includes 1-7) usually ships 1-5 days
1 274-8927 Display panel console $407.48 1 usually ships 1-5 days
2 174-8911 Ribbon cable $80.39 1 usually ships 9-13 days
3 174-8912 Screw $1.05 4 usually ships 1-5 days
4 174-3488 Console back $103.44 1 usually ships 1-5 days
5 174-8913 Cable $53.56 1 usually ships 1-5 days
6 174-8914 Key switch $27.66 1 usually ships 9-13 days
7 174-7079 Key (set of 2) $22.56 1 usually ships 9-13 days
