| # | Part | Description |
Req | Notes | Availability |
|---|

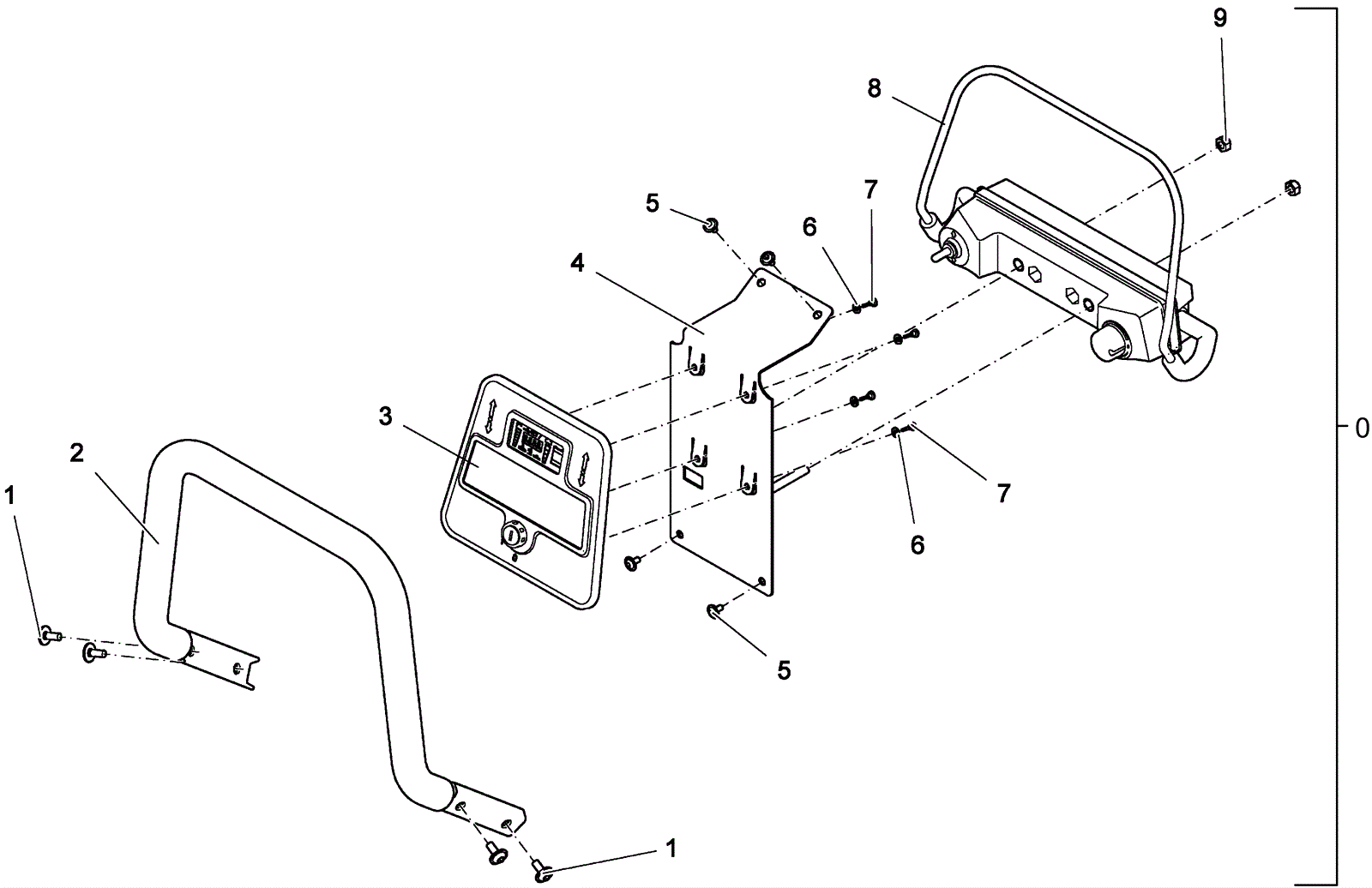

0 |
274-9283
|
OPERATING CONSOLE ASSY, E24 |
1 |
(includes 1-9) |
|
1 |
374-2110
|
SC-BHCS W/ FLANGE M8 X 1.25 X 12 304SS |
4 |
|
|
2 |
174-6584
|
Handle bar |
1 |
|
|
3 |
274-8493
|
DASH PANEL, E24 |
1 |
|
|
4 |
174-8921
|
Panel mount bracket |
1 |
|
|
5 |
999-1514
|
Screw M6-1 x 10mm button head socket stainless steel |
4 |
|
|
6 |
999-9089
|
Washer M4 flat stainless steel |
4 |
|
|
7 |
174-8902
|
Self tapping screw |
4 |
|
|
8 |
174-8922
|
Bail system |
1 |
|
|
9 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
