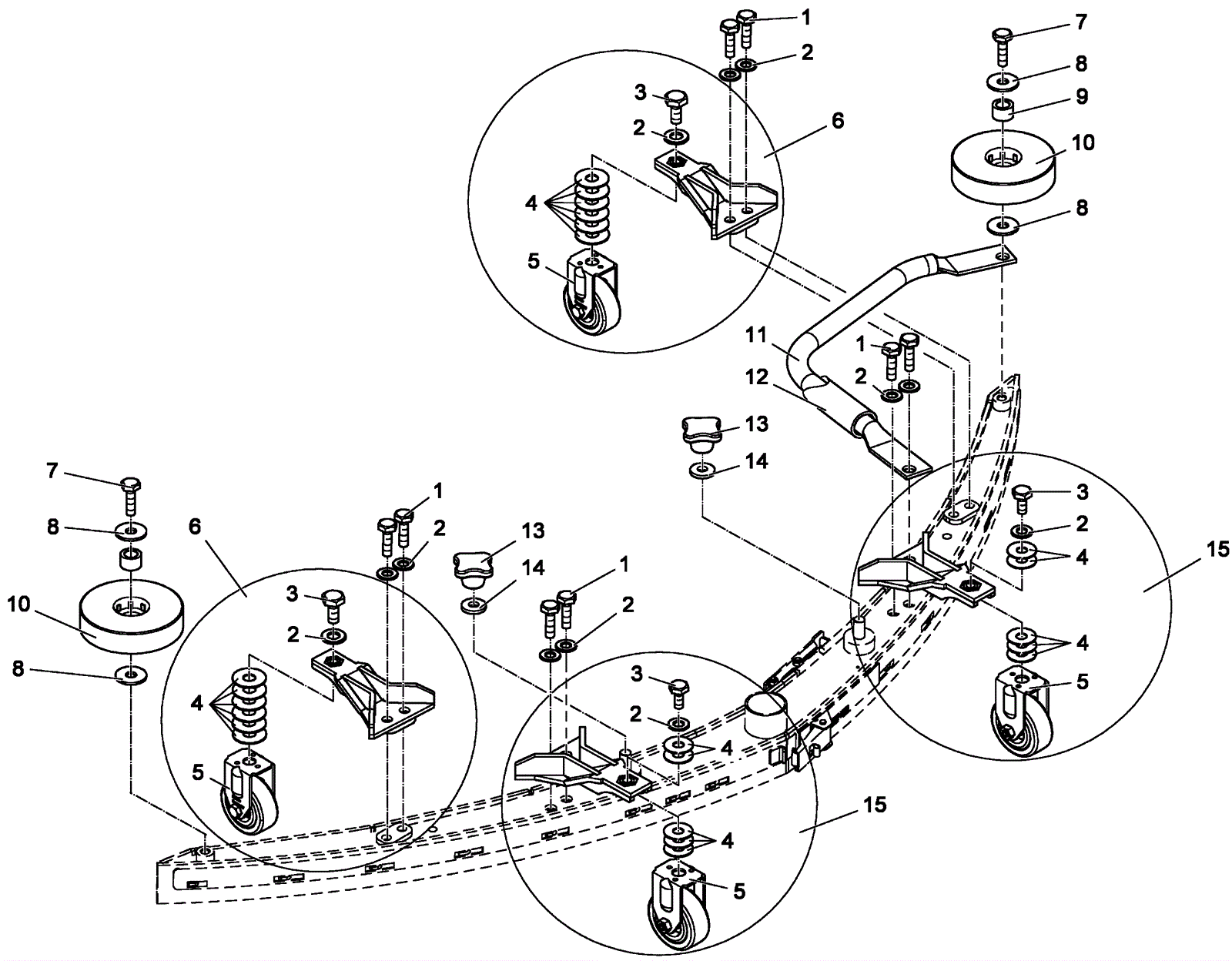

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
374-1549
|
HEXAGON SCREW |
4 |
|
|
2 |
999-9097
|
Washer M8 flat stainless steel |
12 |
|
|
3 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
4 |
|
|
4 |
374-1931
|
Washer flat 8.3 x 22 x 1.00mm stainless steel |
22 |
|
|
5 |
174-8933
|
Fixed caster |
4 |
|
|
6 |
174-4176
|
Fixed castor |
2 |
(includes 2-5) |
|
7 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
8 |
999-1267
|
Washer M8 flat zinc |
4 |
|
|
9 |
174-9628
|
Bushing |
2 |
|
|
10 |
174-8340
|
Guide wheel |
2 |
|
|
11 |
174-4177
|
Bracket |
1 |
|
|
12 |
174-8935
|
Hose (sold by the Meter) |
12 in |
|
|
13 |
174-8339
|
Star knob |
2 |
|
|
14 |
174-8669
|
Washer M10.6 serrated tooth |
2 |
|
|
15 |
174-8933
|
Fixed caster |
2 |
(includes 2-5) |
|
