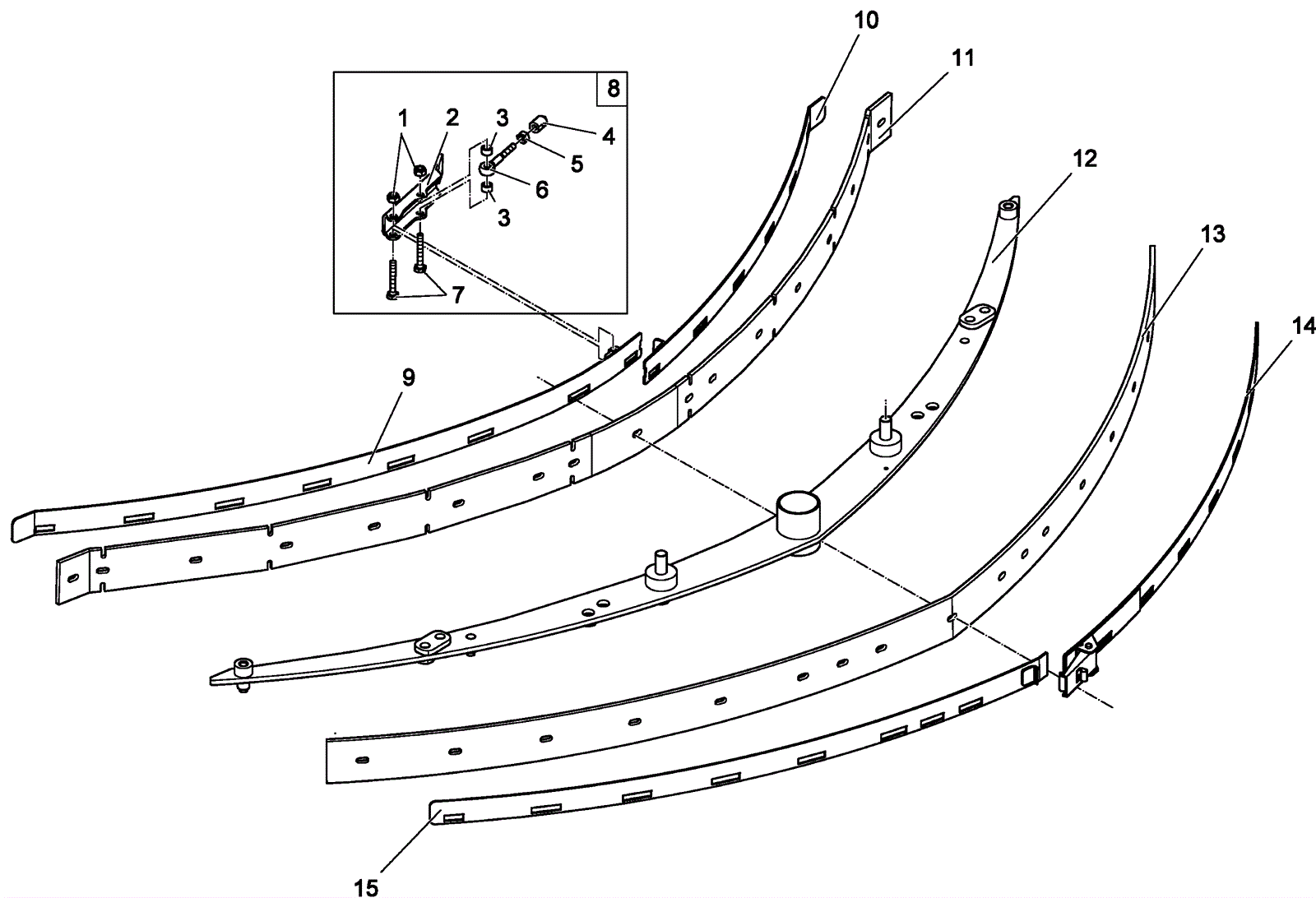

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0495
|
Nut M5-.8 nylon insert lock zinc plated |
2 |
|
|
2 |
174-8327
|
Lever |
1 |
|
|
3 |
174-8938
|
Bushing |
2 |
|
|
4 |
174-8341
|
Pressure pin |
1 |
|
|
5 |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
6 |
174-8338
|
Bolt M5 x 40mm eye stainless steel |
1 |
|
|
7 |
174-8947
|
Screw M5-.8 x 30 hex head stainless steel |
2 |
|
|
8 |
174-7105
|
Latch assembly |
1 |
(includes 1-7) |
|
9 |
174-8474
|
Front tension band |
1 |
|
|
10 |
174-8475
|
Front tension band |
1 |
|
|
11 |
174-7082
|
Squeegee blade urethane front |
1 |
|
|
12 |
174-7132
|
Squeegee assembly |
1 |
|
|
13 |
174-7083
|
Rear polyurethane blade |
1 |
|
|
14 |
274-5840
|
REAR TENSION BAND |
1 |
|
|
15 |
274-4151
|
REAR TENSION BAND |
1 |
|
|
