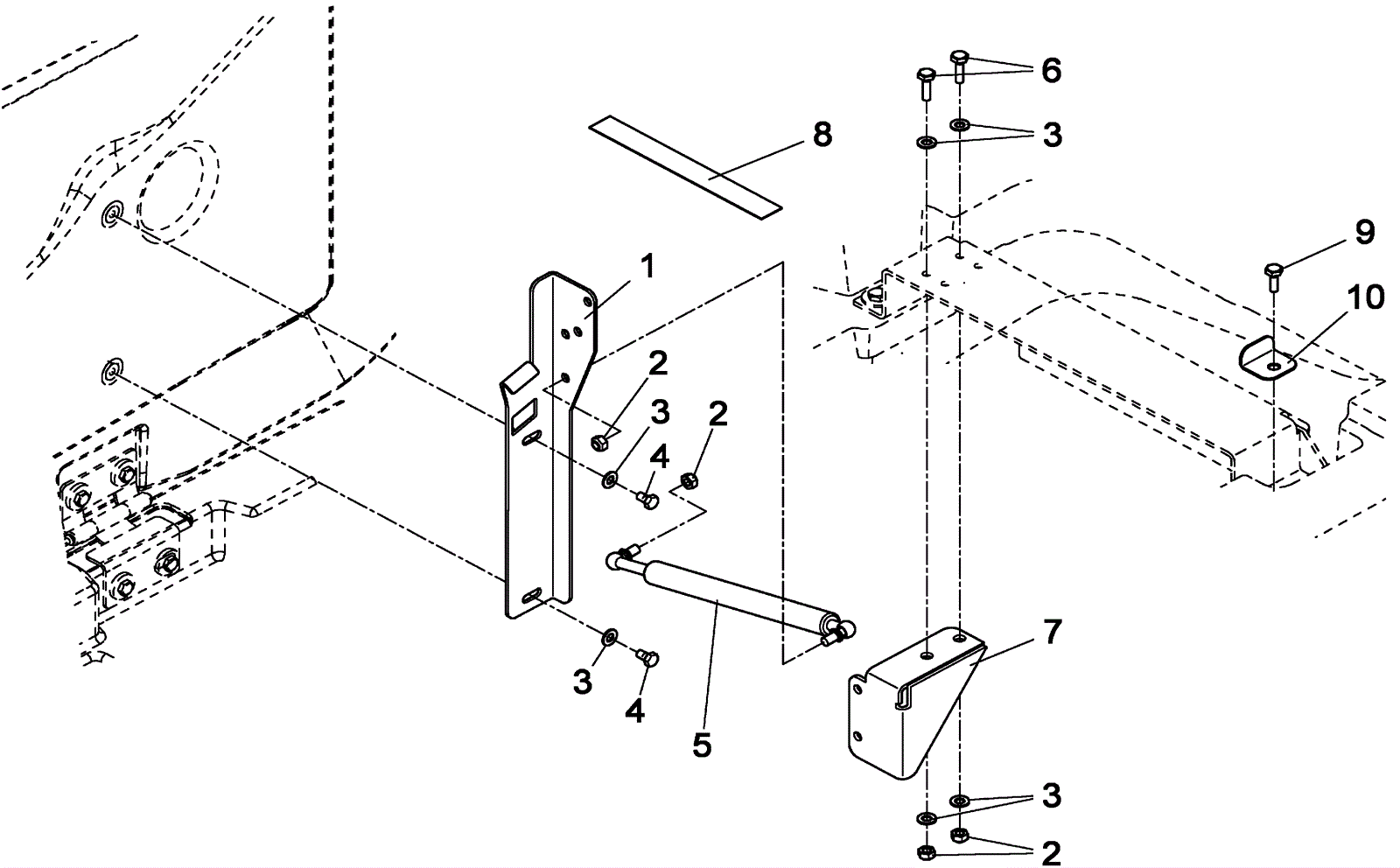

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-4167
|
Angle |
1 |
|
|
2 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
3 |
999-9097
|
Washer M8 flat stainless steel |
6 |
|
|
4 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
2 |
|
|
5 |
174-4168
|
Gas pressure spring |
1 |
|
|
6 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
7 |
174-4169
|
Retainer |
1 |
|
|
8 |
274-4456
|
BELT |
1 |
|
|
9 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
1 |
|
|
10 |
174-4171
|
Angle |
1 |
|
|
