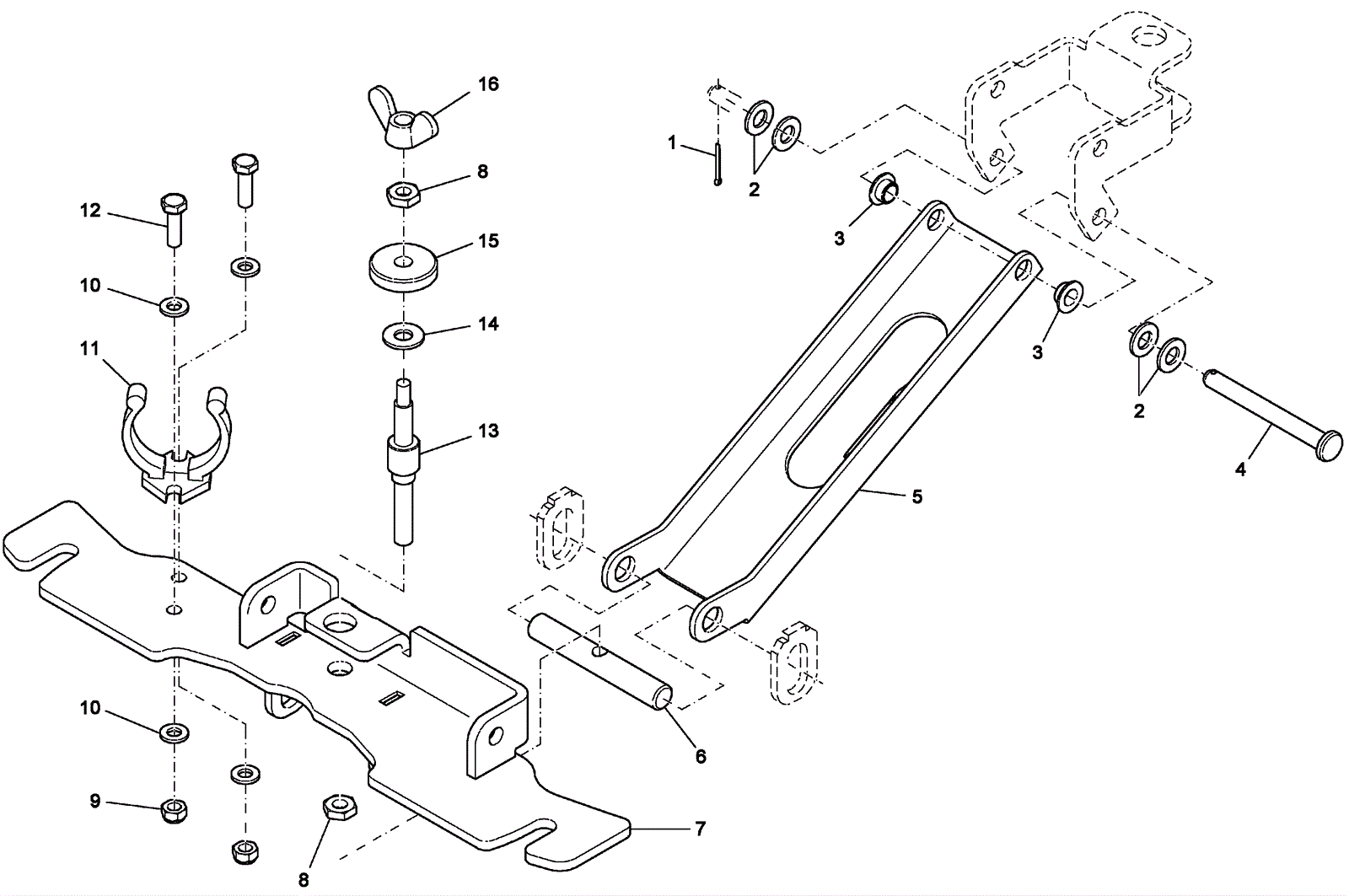

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-9648
|
Cotter pin |
1 |
|
|
2 |
999-9097
|
Washer M8 flat stainless steel |
1 |
|
|
3 |
174-9649
|
Slide bearing bushing |
2 |
|
|
4 |
174-9643
|
Bolt |
1 |
|
|
5 |
174-9650
|
Control arm |
1 |
|
|
6 |
174-4148
|
Bolt |
1 |
|
|
7 |
174-9651
|
Sqeegee weldment |
1 |
|
|
8 |
999-1551
|
Nut M8-1.25 hex jam zinc plated |
2 |
|
|
9 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
10 |
999-1261
|
Washer M6 flat stainless steel |
4 |
|
|
11 |
174-8926
|
Hose support |
1 |
|
|
12 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
|
|
13 |
174-9646
|
Threaded pin |
1 |
|
|
14 |
999-9097
|
Washer M8 flat stainless steel |
1 |
|
|
15 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
16 |
174-9647
|
Nut M6-1 wing |
1 |
|
|
N/S |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
|
|
