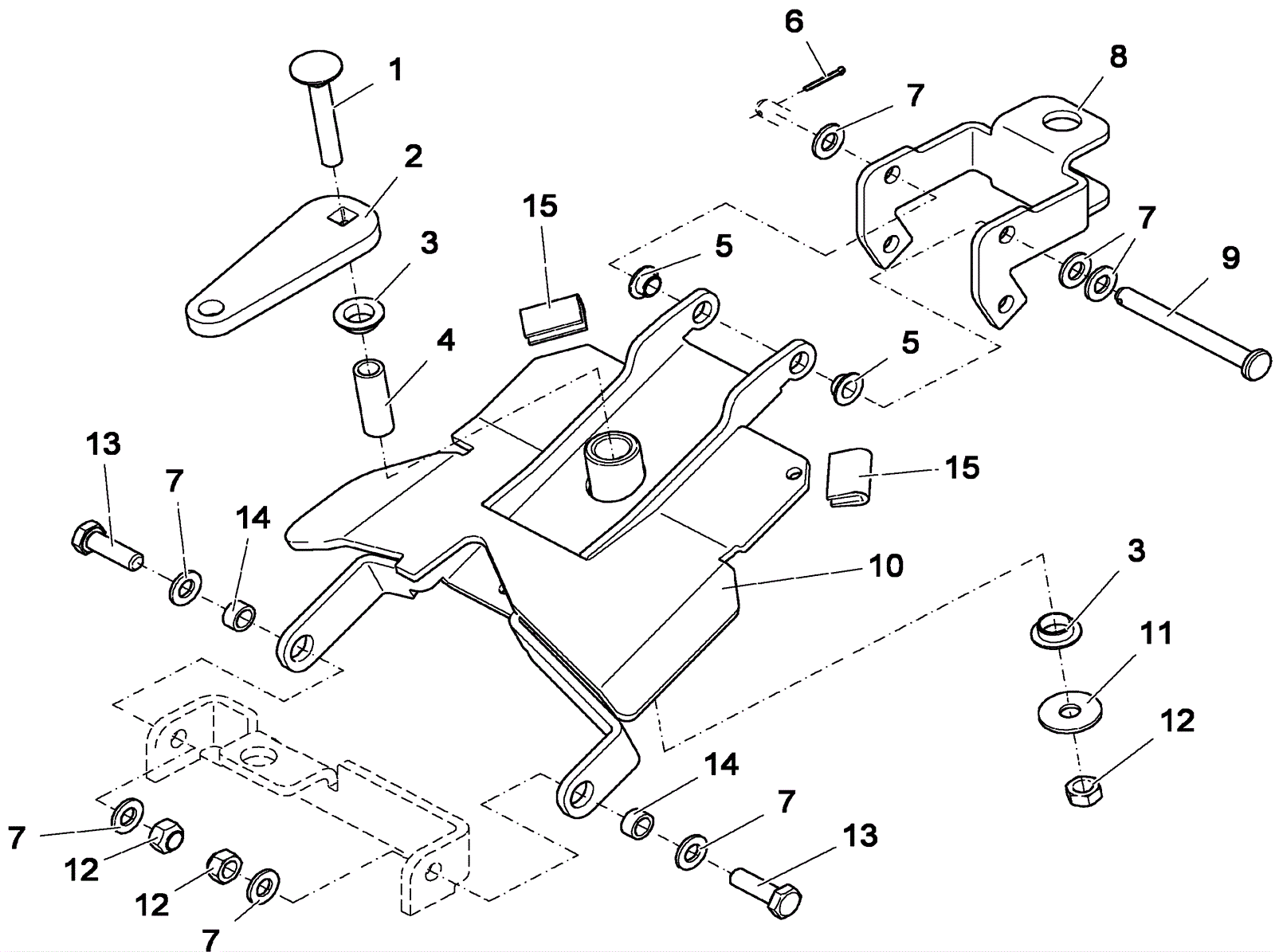

E33 XL Squeegee Connection Assembly Part 1 - Before April 2008

#PartDescriptionPriceReqNotesAvailability
1 174-9642 Bolt M8-1.25 x 55mm carriage head $4.15 1 usually ships 1-5 days
2 174-8999 Cable attach pivot $5.25 1 usually ships 1-5 days
3 174-8992 Slide bearing $4.56 2 usually ships 1-5 days
4 174-3503 Pipe $14.89 1 usually ships 1-5 days
5 174-9649 Slide bearing bushing $1.54 2 usually ships 1-5 days
6 174-9648 Cotter pin $1.38 1 usually ships 1-5 days
7 999-9097 Washer M8 flat stainless steel $0.99 5 ships same day
8 174-9000 Squeegee bracket $39.67 1 usually ships 1-5 days
9 274-0001 BOLT $2.98 1 usually ships 1-5 days
10 274-6198 SHEET METAL $167.67 1 usually ships 1-5 days
11 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 3 ships same day
13 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
14 174-8970 Bushing $5.94 2 usually ships 12-16 days
15 174-8982 Edge protection $3.08 1 usually ships 1-5 days
