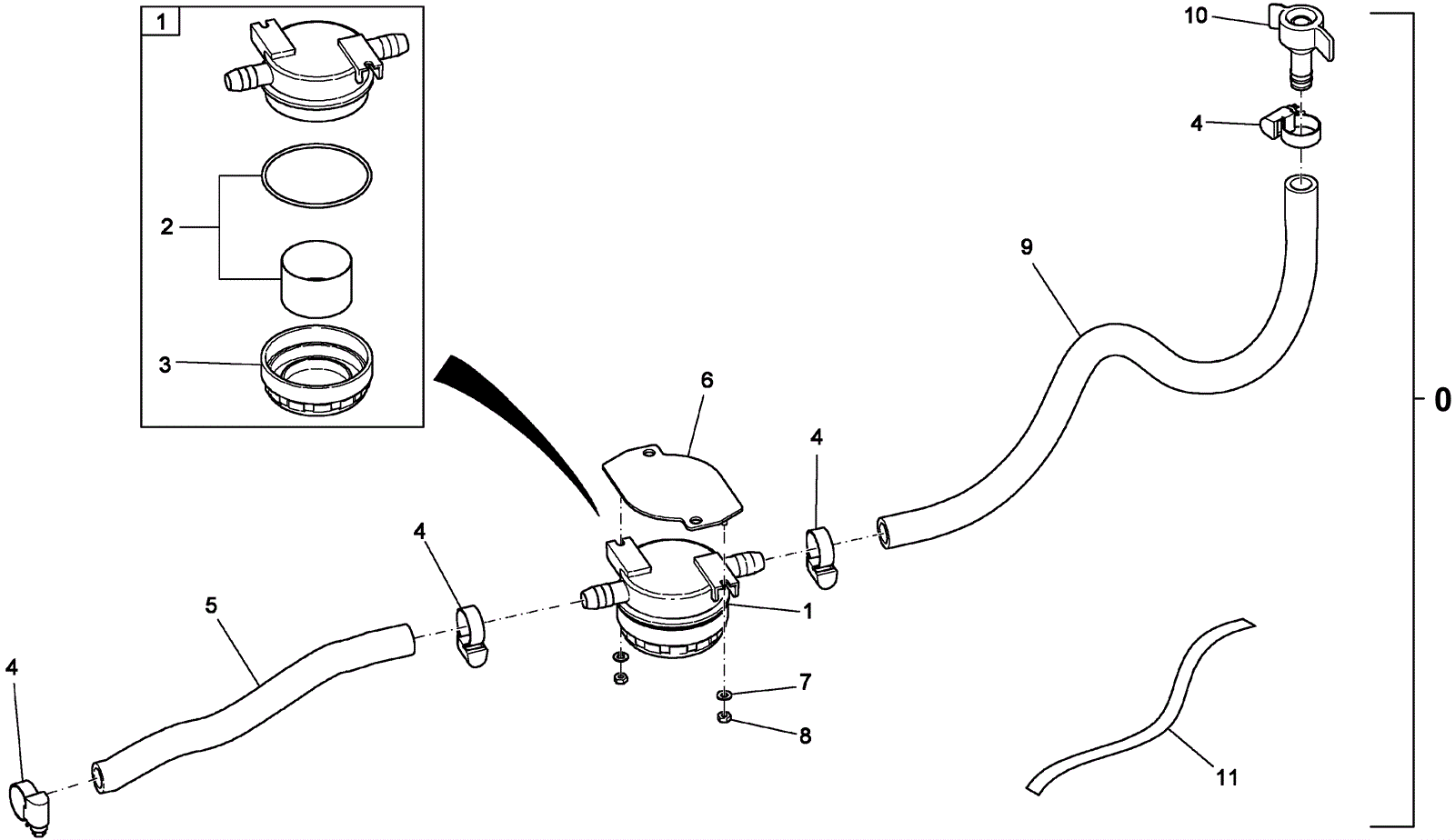

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
174-4118
|
Water supply |
1 |
(includes 1-11) |
|
1 |
174-3670
|
Water filter assembly |
1 |
(includes 2-3) |
|
2 |
N/A
|
Not available |
1 |
(filter cartridge) (complete with o-ring) |
|
3 |
174-7081
|
Filter cap |
1 |
|
|
4 |
174-1628
|
Hose clamp |
4 |
|
|
5 |
174-9631
|
PVC hose (Sold by the Meter) |
12 in |
|
|
6 |
174-9635
|
Water filter bracket |
1 |
|
|
7 |
999-9089
|
Washer M4 flat stainless steel |
2 |
|
|
8 |
999-0955
|
Nut M4-.7 hex nylon lock |
2 |
|
|
9 |
174-9631
|
PVC hose (Sold by the Meter) |
19 in |
|
|
10 |
274-1712
|
STRAIGHT SCREW CONNECTION |
1 |
|
|
11 |
174-4135
|
Sealing band |
1 |
|
|
