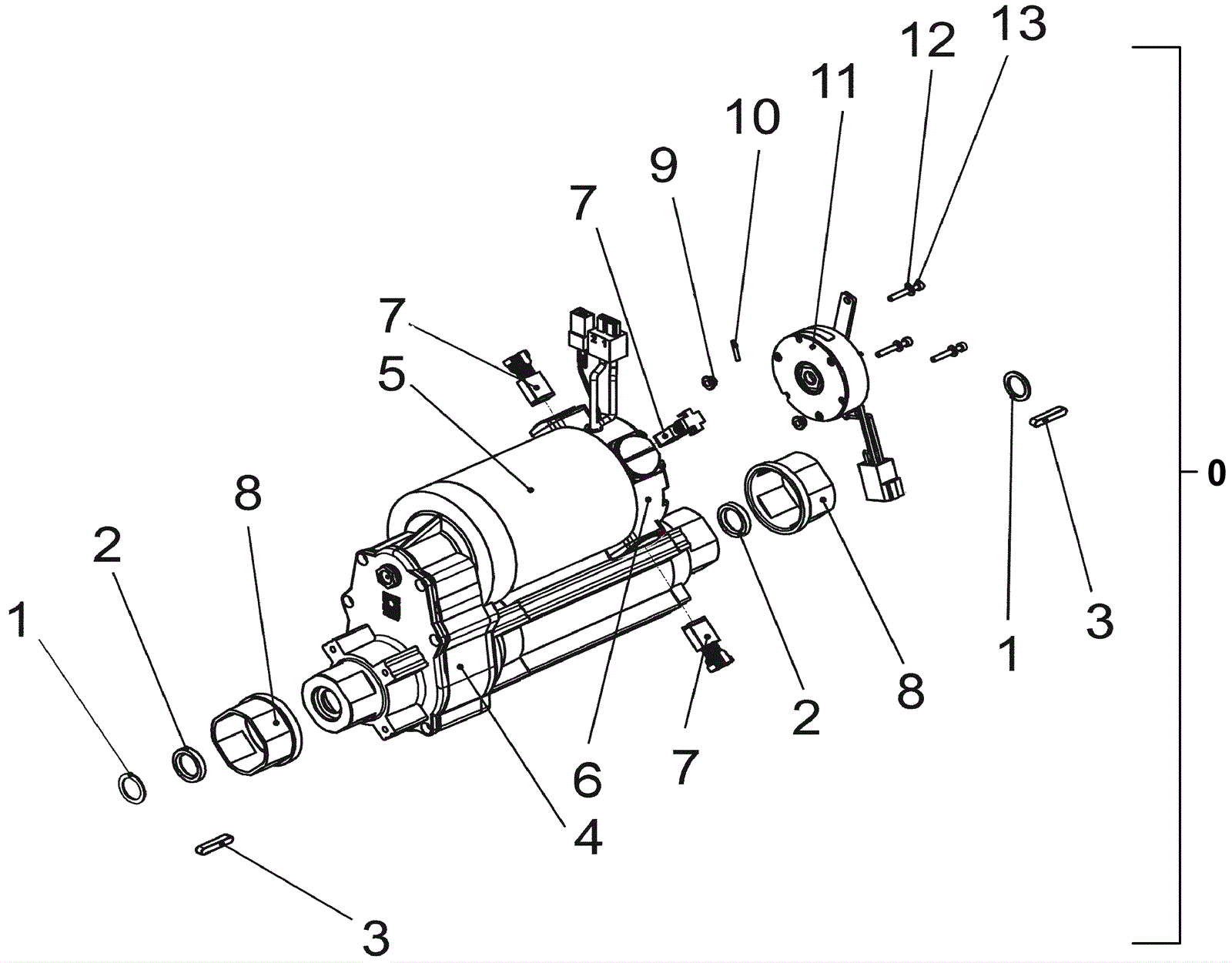

Traction Drive Motor Assembly

#PartDescription ReqNotesAvailability
0 174-4117 Traction drive 1 (includes 1-13)
1 174-3522 Washer 2
2 N/A Not available 2 (gasket)
3 174-8916 Fitting key 2
4 N/A Not available 1 (gear box with shaft)
5 N/A Not available 1 (motor)
6 N/A Not available 1 (end cap)
7 N/A Not available 4 (carbon Brush)
8 174-3525 Bushing 2
9 174-3526 Nut 4
10 N/A Not available 1 (spring pin)
11 N/A Not available 1 (parking break)
12 N/A Not available 3 (plain washer)
13 N/A Not available 3 (screw)
