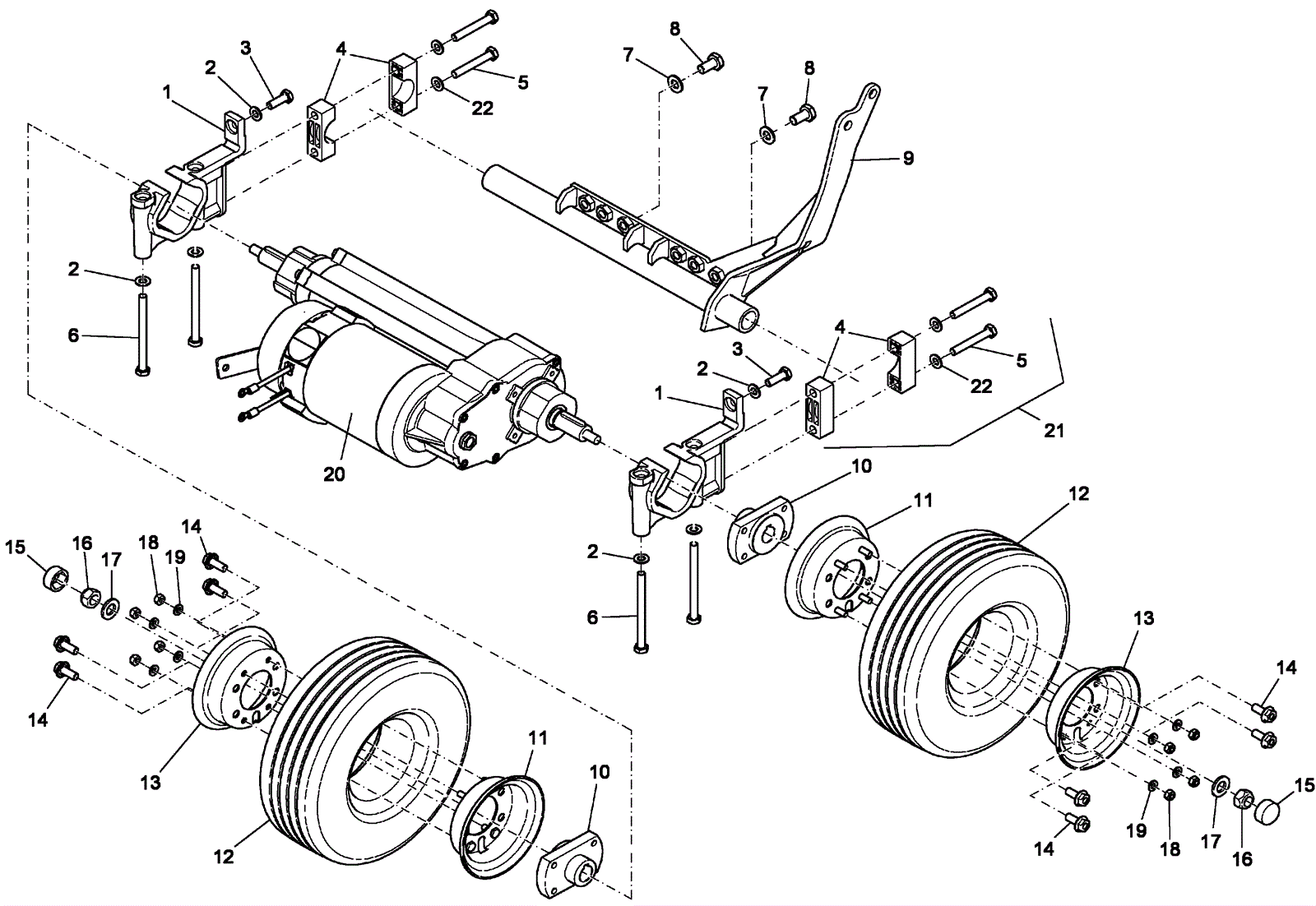

E33 XL Rear Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8993 Transaxle mounting bracket $29.60 2 usually ships 1-5 days
2 999-9097 Washer M8 flat stainless steel $0.99 10 ships same day
3 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
4 274-0028 BEARING BLOCK, NYLON $3.98 4 (after February 2008) (to exchange older blocks order 21) usually ships 1-5 days
5 999-1692 Screw M8-1.25 x 50mm hex stainless steel $3.28 4 ships same day
6 999-9159 Bolt M8-1.0 x 100mm hex cap $2.68 4 ships same day
7 174-8888 Washer $4.62 2 usually ships 4-14 days
8 274-0632 BLT-HH M10 X 1.5 X 20 STL ZD 8.8 DIN 933 $1.24 2 usually ships 1-5 days
9 274-7604 LEVER WELDMENT $53.24 1 usually ships 1-5 days
10 174-3546 Transaxle hub $73.77 2 usually ships 1-5 days
11 174-8995 Rim $31.05 2 usually ships 1-5 days
12 274-8023 TIRE SOFT (NON MARKING) $166.46 2 usually ships 1-5 days
13 174-8996 Rim $33.58 2 usually ships 1-5 days
14 174-9637 Bolt M8-1.25 x 20mm hex head flange $1.31 8 usually ships 1-5 days
15 174-8990 Protection cap $3.80 2 usually ships 1-5 days
16 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel $3.47 2 usually ships 11-24 days
17 374-0693 Washer M13 $3.74 2 usually ships 1-5 days
18 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 8 ships same day
19 999-1261 Washer M6 flat stainless steel $0.99 8 ships same day
20 174-4117 Traction drive $1,234.20 1 usually ships 4-14 days
21 174-3549 Block assembly $86.34 1 (includes 4-5, 22) (it is necessary to change all 4 blocks) usually ships 4-14 days
22 999-9097 Washer M8 flat stainless steel $0.99 4 (also included in 21) ships same day
