| # | Part | Description |
Req | Notes | Availability |
|---|

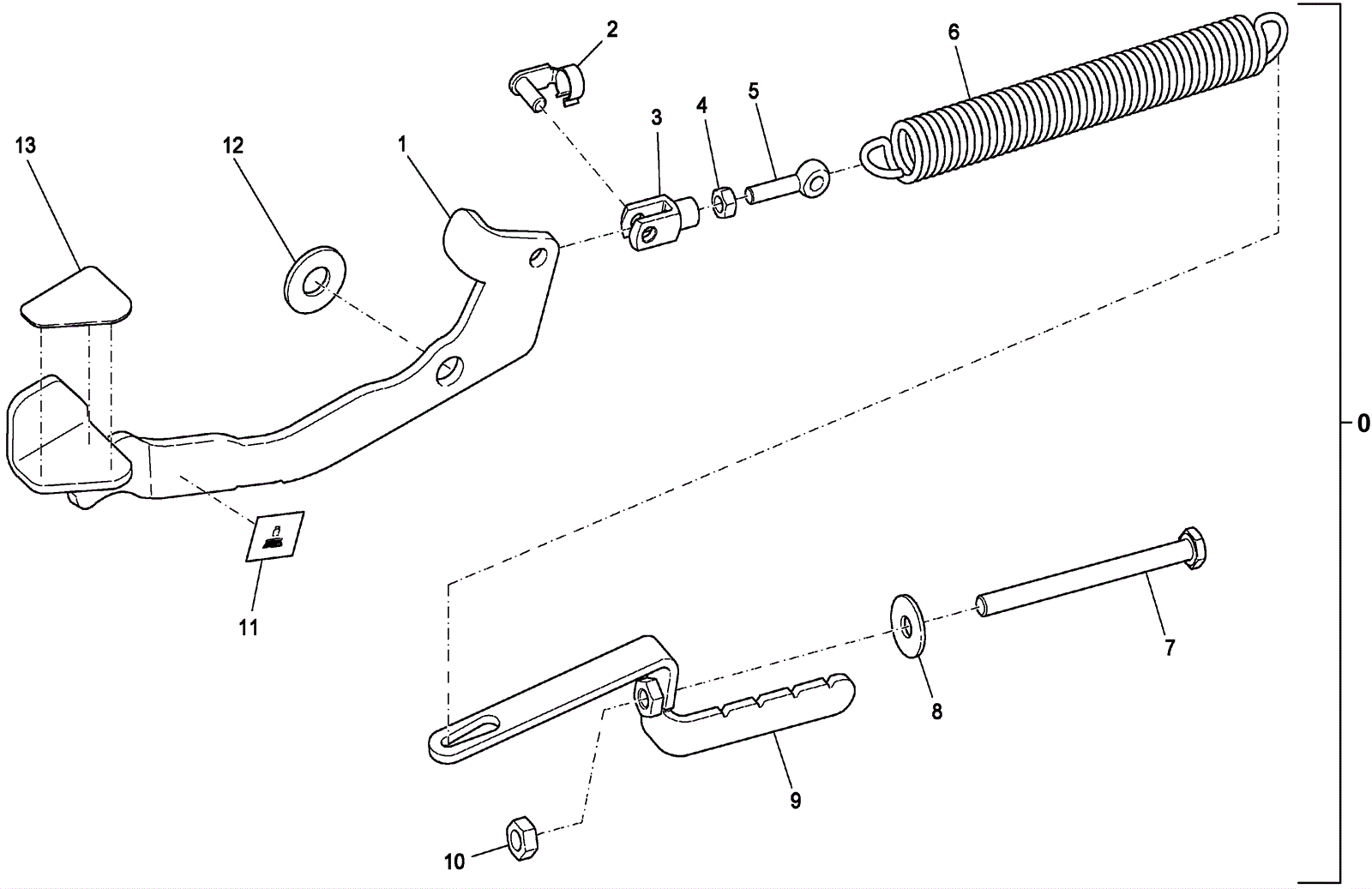

0 |
174-4078
|
Brush pressure adjustment |
1 |
(includes 1-13) |
|
1 |
274-4906
|
PEDAL |
1 |
|
|
2 |
174-9665
|
S-bolt |
1 |
|
|
3 |
174-9655
|
Clevis yoke |
1 |
|
|
4 |
999-1424
|
Nut M8-1.25 hex stainless steel |
1 |
|
|
5 |
174-9664
|
Eye bolt |
1 |
|
|
6 |
174-9662
|
Tension spring |
1 |
|
|
7 |
999-0022
|
Bolt M10-1.5 x 30mm hex head full thread |
1 |
|
|
8 |
174-3486
|
Washer |
1 |
|
|
9 |
174-9656
|
Pressure adjustment bracket |
1 |
|
|
10 |
999-1428
|
Nut M10-1.5 hex zinc finish |
1 |
|
|
11 |
174-6567
|
Brush pressure decal |
1 |
|
|
12 |
174-9619
|
Rubber washer |
1 |
|
|
13 |
174-9654
|
Anti-slip pedal decal |
1 |
|
|
