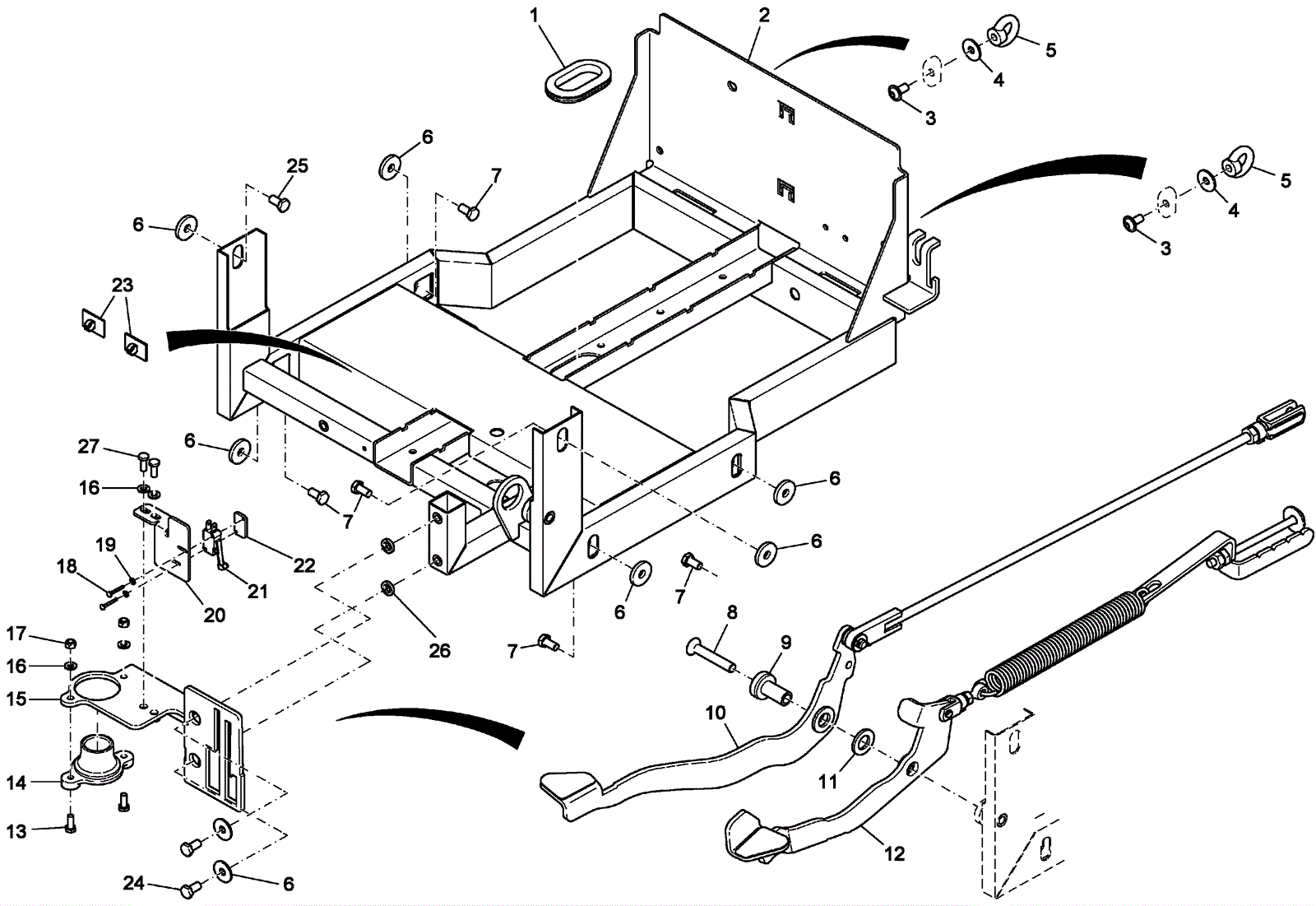

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-8967
|
Grommet |
1 |
|
|
2 |
274-8943
|
CHASSIS |
1 |
|
|
3 |
274-1312
|
LENS FLANGE SCREW |
2 |
|
|
4 |
999-9097
|
Washer M8 flat stainless steel |
4 |
|
|
5 |
174-9625
|
Nut M8-1.25 eye zinc |
2 |
|
|
6 |
174-9630
|
Washer M9 conical spring with tooth |
10 |
|
|
7 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
8 |
|
|
8 |
174-9641
|
Screw M10-1.5 x 60mm flat head |
1 |
|
|
9 |
174-9658
|
Pedal pivot bushing |
1 |
|
|
10 |
274-5593
|
LIFTING PEDAL |
1 |
|
|
11 |
174-9621
|
Washer M17 flat |
1 |
|
|
12 |
174-4078
|
Brush pressure adjustment |
1 |
|
|
13 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
|
|
14 |
174-8292
|
Cable guide bushing |
1 |
|
|
15 |
174-8973
|
Pedal locking bracket |
1 |
|
|
16 |
999-1261
|
Washer M6 flat stainless steel |
4 |
|
|
17 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
18 |
999-1897
|
Screw M3-.5 x 20mm hex head |
2 |
|
|
19 |
999-1521
|
Washer M3 flat stainless steel |
2 |
|
|
20 |
174-6576
|
Switch mount bracket |
1 |
|
|
21 |
174-8931
|
Micro switch |
1 |
|
|
22 |
174-8930
|
Threaded switch mount plate |
1 |
|
|
23 |
174-8972
|
Cable clip |
2 |
|
|
24 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
25 |
999-0900
|
Screw M8-1.25 x 18mm hex head stainless steel |
1 |
|
|
26 |
174-4088
|
Spacer sleeve |
2 |
|
|
27 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
