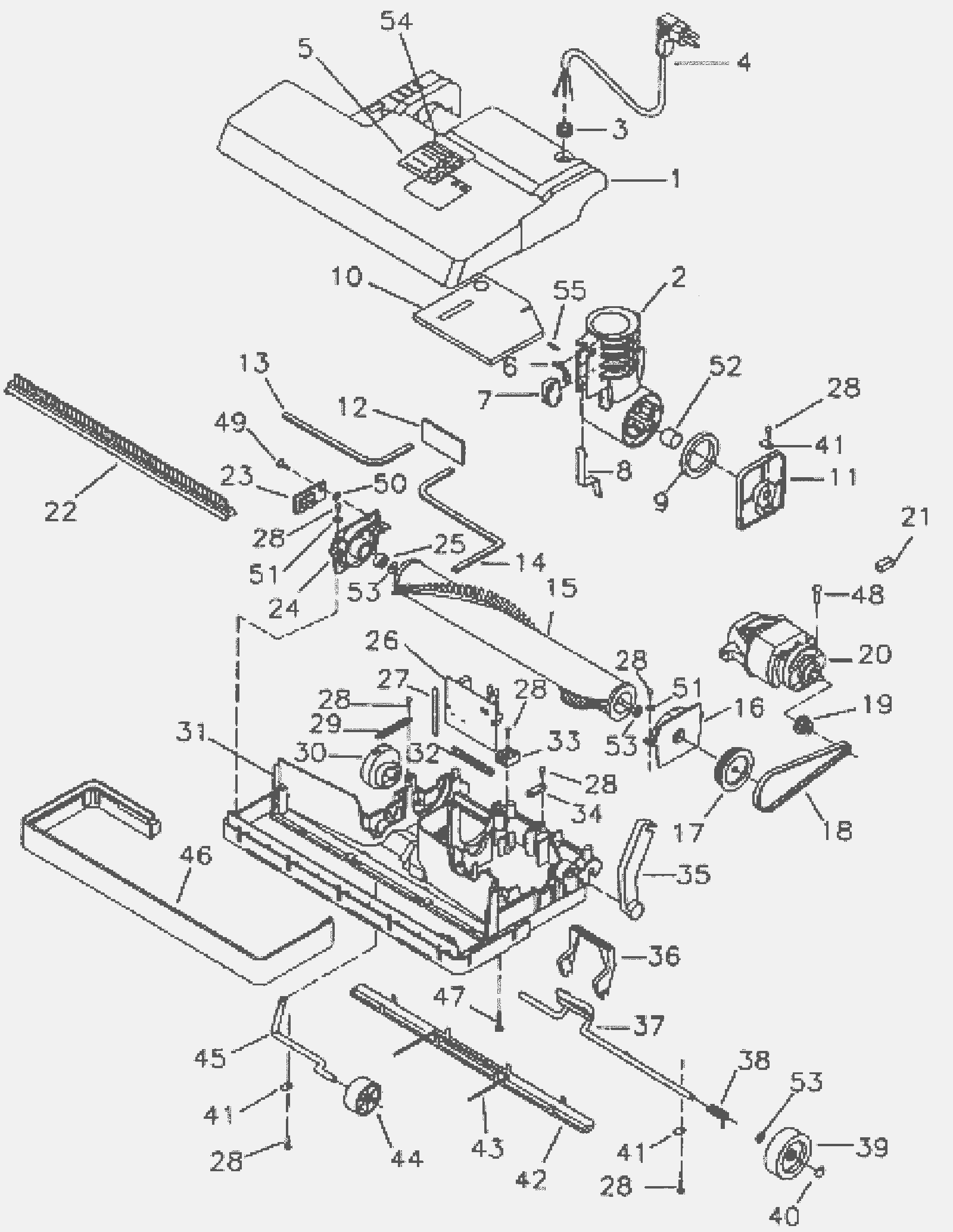

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-2060
|
Base top cover |
1 |
|
|
2a |
N/A
|
Not available |
1 |
(includes 2b, 6-9, 11, 52, and 55) (Coupling housing assembly) |
|
2b |
174-0223
|
Coupling housing |
1 |
|
|
3 |
174-2061
|
Grommet |
1 |
|
|
4 |
174-2062
|
Power cord with molded plug (OBSOLETE) |
1 |
|
|
5 |
174-2063
|
Brush monitor decal |
1 |
|
|
6 |
174-2064
|
Finger switch |
1 |
|
|
7 |
174-2065
|
Mini switch |
1 |
|
|
8 |
N/A
|
Not available |
1 |
(Coupling switch cover) |
|
9 |
174-2067
|
Felt ring |
1 |
|
|
10 |
174-2068
|
Brush motor insulator |
1 |
|
|
11 |
174-2069
|
Coupling pivot plate |
1 |
|
|
12 |
174-2070
|
Felt strip |
1 |
|
|
13 |
174-2071
|
8 inch intake cover gasket |
1 |
|
|
14 |
174-2072
|
11 inch intake cover gasket |
1 |
|
|
15 |
N/A
|
Not available |
1 |
(includes 22, 25, and 53) (Brush core assembly) |
|
16 |
174-2074
|
Brush drive end plate |
1 |
|
|
17 |
174-2075
|
Brush drive pulley |
1 |
|
|
18 |
174-0010
|
Brush drive belt |
1 |
|
|
19 |
174-2076
|
Brush motor pulley |
1 |
|
|
20 |
N/A
|
Not available |
1 |
(120V brush motor) |
|
21 |
174-0228
|
Carbon brush (sold individually) |
2 |
|
|
22 |
174-2123
|
Brush strip |
1 |
|
|
23 |
174-2080
|
Brush strip door |
1 |
|
|
24 |
174-2081
|
Brush end plate |
1 |
|
|
25 |
174-2111
|
Bearing |
2 |
|
|
26 |
174-0490
|
Electric brush control |
1 |
|
|
27 |
174-2083
|
Circuit board cushion |
1 |
|
|
28 |
174-9053
|
Screw #10 x 5/8 plated hi/low |
13 |
|
|
29 |
174-2084
|
Spring |
1 |
|
|
30 |
174-2085
|
Cam |
1 |
|
|
31 |
174-2086
|
Base housing assembly (OBSOLETE) |
1 |
(includes 31, 32, 42, and 43) |
|
32 |
174-2113
|
Rub strip |
1 |
|
|
33 |
174-0416
|
Terminal block |
2 |
|
|
34 |
174-2087
|
Strain relief cover |
1 |
|
|
35 |
N/A
|
Not available |
1 |
(Side arm) |
|
36 |
N/A
|
Not available |
1 |
Foot release |
|
37 |
N/A
|
Not available |
1 |
Rear axle |
|
38 |
174-2090
|
Spring |
1 |
|
|
39 |
174-2091
|
Rear wheel |
2 |
|
|
40 |
174-2092
|
Hub cap |
2 |
|
|
41 |
174-2093
|
Axle retainer plate |
7 |
|
|
42 |
174-2127
|
Metal protector |
2 |
|
|
43 |
174-2117
|
Wire formed protector |
1 |
|
|
44 |
174-2094
|
Center wheel |
1 |
|
|
45 |
174-2095
|
Center wheel axle |
1 |
|
|
46 |
174-2096
|
Bumper |
1 |
|
|
47 |
174-9051
|
Screw 10-32 x 1 1/4 plated |
4 |
|
|
48 |
999-0410
|
Screw 8-32 x 5/8 pan head slotted zinc plated |
2 |
|
|
49 |
999-0468
|
Bolt M6-1 x 55mm hex head part thread zinc |
1 |
|
|
50 |
174-2097
|
Pushnut bolt retainer |
1 |
|
|
51 |
999-0412
|
Washer #8 SAE flat |
4 |
|
|
52 |
174-2098
|
Bearing |
2 |
|
|
53 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
54 |
174-2099
|
Caution brush start decal (OBSOLETE) |
1 |
|
|
55 |
174-2100
|
Straight knurled pin |
2 |
|
|
