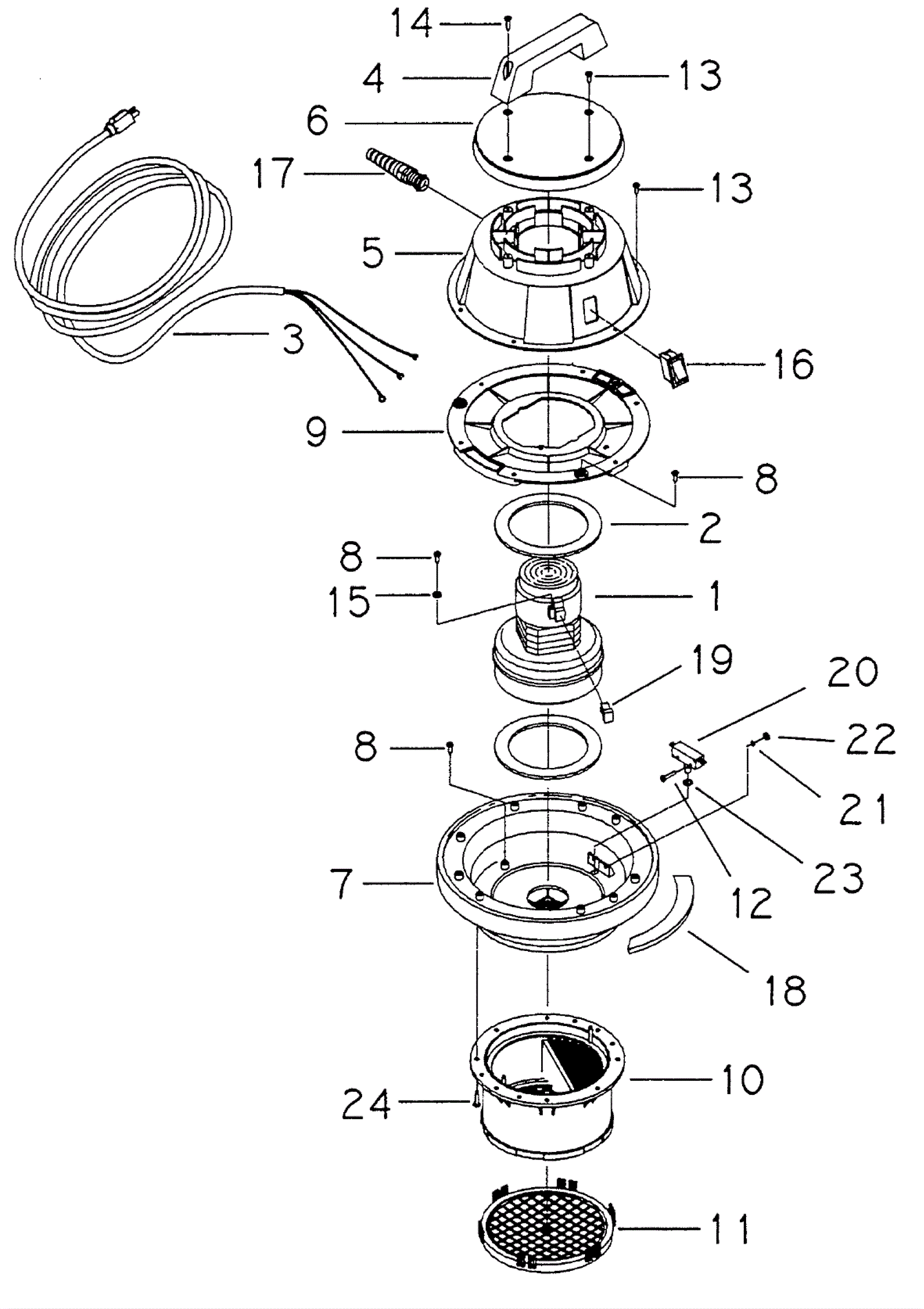

Lid Assembly

#PartDescription ReqNotesAvailability
1 174-8513 120V 2 stage vacuum motor 1
2a 164-0881 Vacuum motor gasket 2
2b 991-3029 Vacuum motor gasket 2 (NON-OEM)
3 174-3003 16/3 power cord 50 foot 1
4 174-2378 Basic handle 1
5 174-2379 Motor lid cover 1
6 174-2380 Motor cap 1
7 174-8651 Motor pan assembly 1
8 174-2286 Screw 10 x 1/2 5
9 174-8652 Motor hold down plate 1
10 174-1756 Plactic coplom filter 1
11 174-1730 Prefilter package of 6 1
12 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
13 174-2289 Screw 10 x 5/8 hi/lo 8
14 174-5134 Screw 10 x 1 1/4 2
15 999-0089 Washer #10 internal star lock zinc plated 1
16 174-0181 Rocker switch 1
17 174-2293 Strain relief with nut 1
18 174-2385 Gasket lid (6G) 1
19 174-3002 Carbon brush (sold individually) 2
20 174-4024 Switch 1
21 174-5232 Washer #6 internal tooth locking 2
22 999-0195 Nut 6-32 hex plain 2
23 174-3212 Valve seat O-ring 1
24 174-5991 Screw #10 x 5/8 plated hi/low 8
N/S 174-8654 115V complete lid assembly 1
