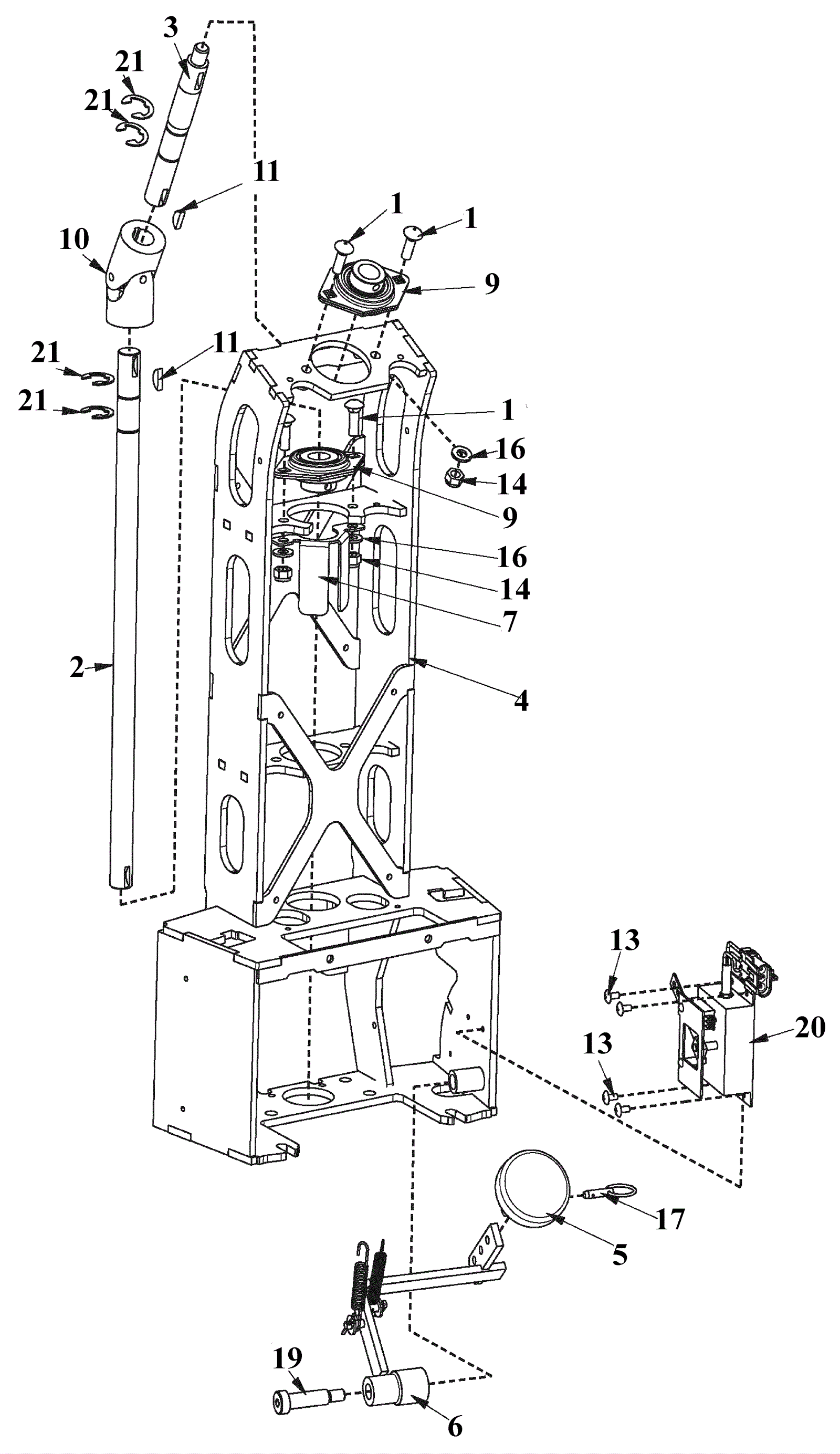

ERIDE 26 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 4 ships same day
4 274-9231 WELDMENT-STEERING FRAME SCV 24/26 $559.76 1 usually ships 1-5 days
9 274-4359 BEARING ASSEMBLY 3/4 inch $30.90 2 usually ships 1-5 days
10 174-2898 Universal joint $157.89 1 usually ships 1-5 days
11 174-2748 Woodruff key 3/16 x 3/4 $1.38 2 ships same day
13 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 4 ships same day
14 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
16 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
17 374-1205 PIN-QUICK REL, 1/4 X .50 UL $3.88 1 usually ships 1-5 days
19 999-0473 Screw 3/8-16 x 1 1/2 socket head shoulder steel $4.03 1 ships same day
20 274-8166 POTENTIOMETER BOX ASY, SCV W/PACKARD $221.77 1 usually ships 12-16 days
21 174-5728 Retaining ring $1.33 4 usually ships 12-16 days
