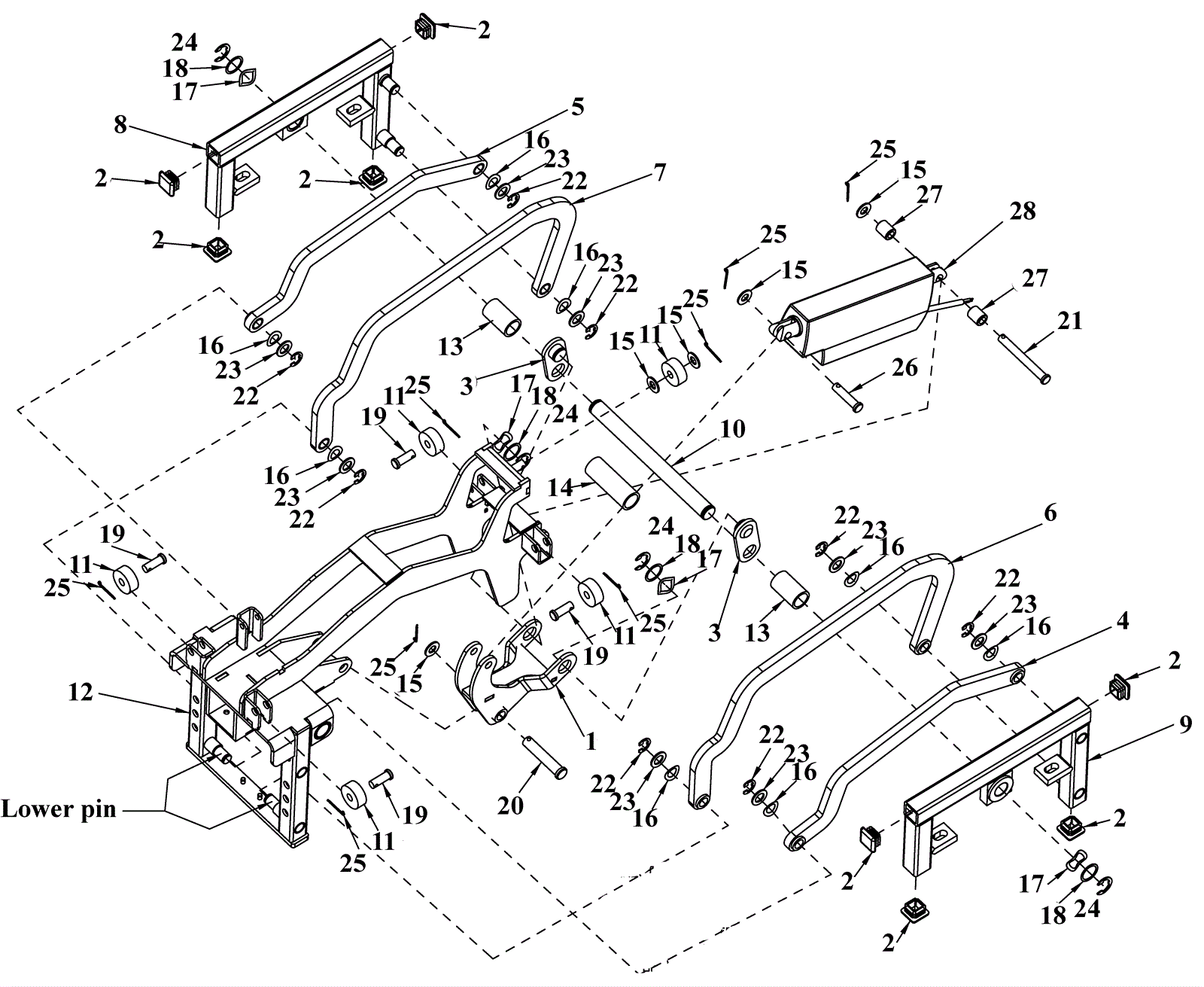

ERIDE 26 Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-6291 Pivot arm scv deck linkage weldment $126.87 1 usually ships 12-16 days
2 374-1608 CAP-1 inch SQUARE PUSH IN-BLACK PLASTIC $1.24 8 usually ships 1-5 days
3 274-4119 DECK LINK WELDMENT - SCV 2426 $42.35 2 usually ships 1-5 days
4 274-5625 LEFT UPPER LINK ASSY, SCV 24/26 $62.13 1 usually ships 1-5 days
5 274-5626 RIGHT UPPER LINK ASSY, SCV 24/26 $79.20 1 usually ships 1-5 days
6 274-6671 LEFT LOWER LINK ASSY, SCV 24/26 $129.55 1 usually ships 1-5 days
7 274-6643 RIGHT LOWER LINK ASSY, SCV 24/26 $86.92 1 usually ships 1-5 days
8 274-7623 WELD-LIFT W/BUSHING LEFT SCV 24/26 $165.73 1 usually ships 1-5 days
9 274-7744 WELD-LIFT W/BUSHING RIGHT SCV 24/26 $156.05 1 usually ships 1-5 days
10 274-3400 LINK ATTACMENT SHAFT, SCV 24/26 $27.77 1 usually ships 1-5 days
11 274-2032 URETHANE ROLLER, SCV 24/26 $17.43 5 usually ships 1-5 days
13 274-0915 SPACER TUBE - STEEL, 1.00 OD X 1.63 inch $6.72 2 usually ships 1-5 days
14 274-2259 SPACER TUBE - STEEL, 1.00 OD X 2.81 inch $12.57 1 usually ships 1-5 days
15 999-0120 Washer 3/8 SAE flat $0.99 5 ships same day
16 174-5159 Washer 33/64 x 1/64 wave $0.99 8 usually ships 12-16 days
17 174-8577 Wave washer $2.63 4 usually ships 1-5 days
18 999-9114 Washer 3/4 flat stainless steel $1.58 4 ships same day
19 174-0195 Clevis pin $0.86 4 usually ships 12-16 days
20 174-0337 Clevis pin $5.60 1 usually ships 1-5 days
21 374-1204 PIN-CLEVIS 3/8 X 3-1/4 ZP $1.03 1 usually ships 1-5 days
22 174-0178 1/2 inch external retaining ring $0.99 8 usually ships 12-16 days
23 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $0.97 8 usually ships 12-16 days
24 174-5728 Retaining ring $1.33 4 usually ships 12-16 days
25 997-2506 Cotter pin $0.99 8 ships same day
26 174-1264 Clevis pin $3.04 1 usually ships 1-5 days
27 274-0611 BUSHING-.375 X .625 X .750 ZINC $4.88 2 usually ships 1-5 days
28 174-6557 Deck actuator assembly with packard plug $435.99 1 ships same day
