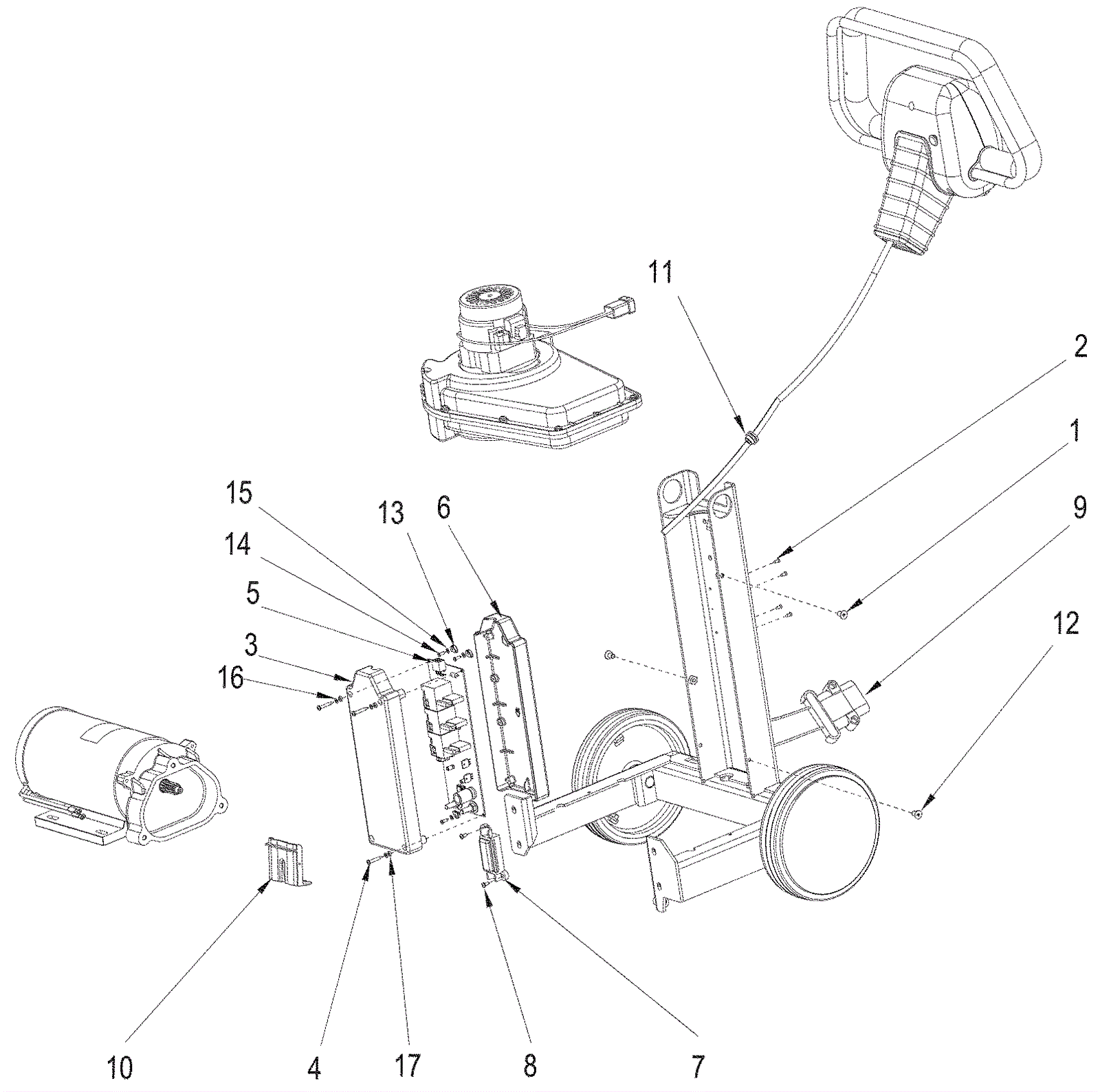

PORT A SCRUB Electrical Assembly - Battery Models

#PartDescriptionPriceReqNotesAvailability
1 999-1601 Screw M5 x 10 flat head stainless steel $0.99 2 ships same day
2 374-1439 SCR-CRCSK HEAD SELF TAP $0.90 4 usually ships 1-5 days
3 N/A Not available Call for price 1 (top relay mounting bracket) usually ships 3-26 days
4 174-9149 Screw M3.5 x 25mm self tapping $0.95 3 usually ships 4-14 days
5 174-6039 Relay board assembly $468.74 1 usually ships 4-14 days
6 174-6040 Relay board mounting bracket $4.28 1 usually ships 4-14 days
7 174-6048 Fuse holder $55.21 1 usually ships 4-14 days
8 174-6053 Screw M5 x 16mm pan head stainless steel $1.10 2 usually ships 4-14 days
9 174-6075 Battery plug assembly male $164.52 1 usually ships 4-14 days
10 274-0101 BRACKET-CAPACITOR $3.39 1 usually ships 1-5 days
11 174-6114 Data cable assembly $30.01 1 usually ships 4-14 days
12 374-1438 SCR-CRCSK HEAD SELF TAP $1.20 2 usually ships 1-5 days
13 174-6206 Relay channel $1.19 3 usually ships 4-14 days
14 N/A Not available Call for price 3 (screw) usually ships 3-26 days
15 N/A Not available Call for price 3 (washer) usually ships 3-26 days
16 N/A Not available Call for price 3 (washer) usually ships 3-26 days
17 N/A Not available Call for price 3 (rubber bushing) usually ships 3-26 days
