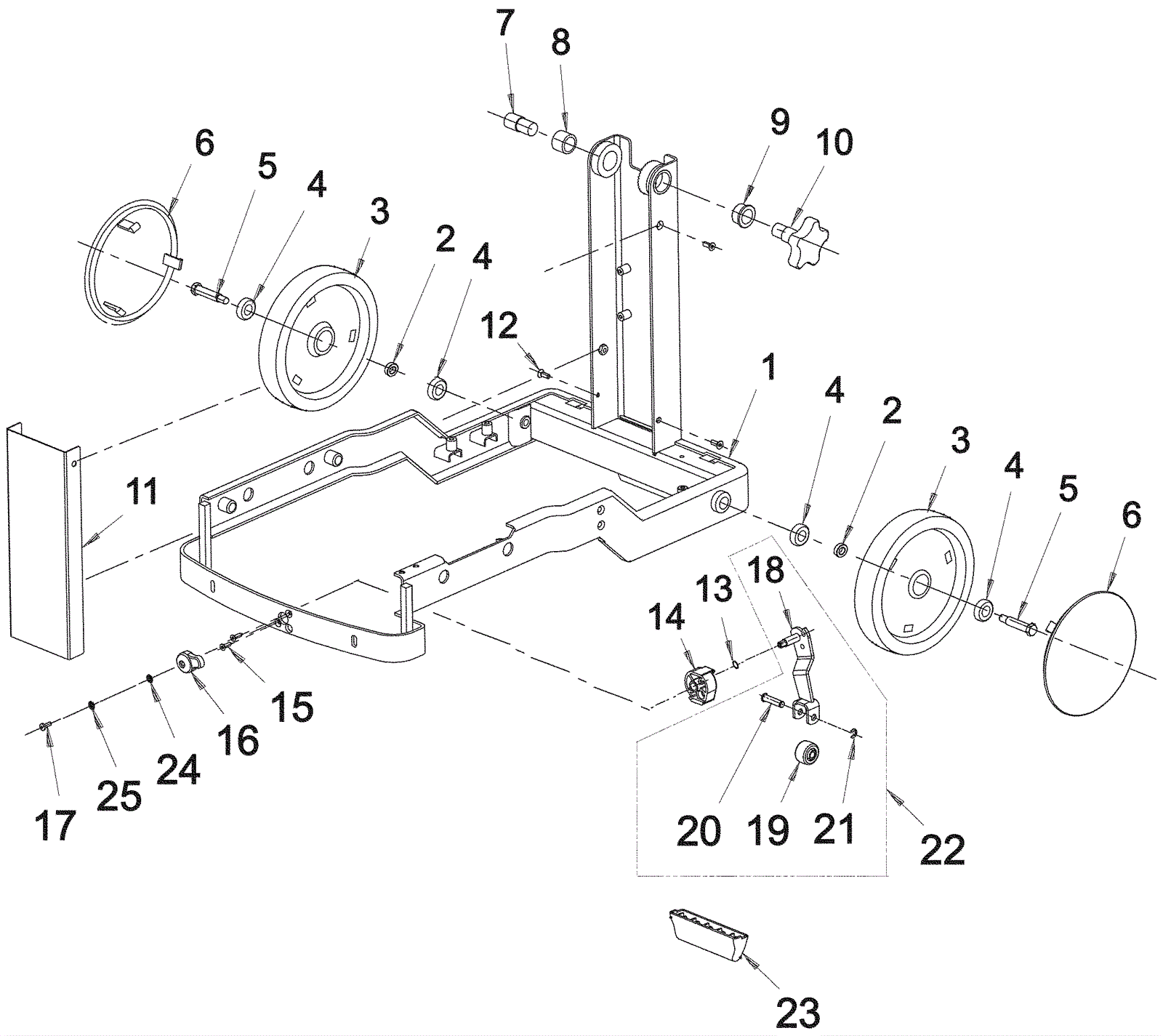

PORT A SCRUB Base Frame Assembly - Version 1 Electric

#PartDescriptionPriceReqNotesAvailability
1 174-5204 Base frame assembly $436.33 1 usually ships 12-16 days
2 N/A Not available Call for price 2 (spacer) usually ships 3-26 days
3 274-7268 WHEEL ASSY FOR 14 inch $125.64 2 usually ships 1-5 days
4 274-3697 BEARING-6000ZZ $10.33 4 usually ships 1-5 days
5 274-1727 PIN-WHEEL $5.25 2 usually ships 1-5 days
6 274-0994 COVER-WHEEL $6.32 2 usually ships 12-16 days
7 274-2699 PIN-HEX SOC HEAD $15.28 1 usually ships 12-16 days
8 274-2154 BUSH-PILLAR HANDLE RH $9.24 1 usually ships 1-5 days
9 274-3294 BUSH-PILLAR HANDLE LH $20.18 1 usually ships 1-5 days
10 274-4448 KNOB-HANDLE $33.86 1 usually ships 12-16 days
11 274-3665 COVER-PILLAR $13.28 1 usually ships 1-5 days
12 999-1601 Screw M5 x 10 flat head stainless steel $0.99 2 ships same day
13 374-1804 O-RING 10.0 X 2.5mm (14) $1.62 1 usually ships 12-16 days
14 174-6538 Parking wheel bracket (OBSOLETE) $5.00 1 usually ships 12-16 days
15 374-1439 SCR-CRCSK HEAD SELF TAP $1.00 2 usually ships 1-5 days
16 374-2967 KNOB-PARKING WHEEL $4.35 1 usually ships 12-16 days
17 374-1400 SCR-CR PH-SS $1.00 1 usually ships 1-5 days
18 274-4884 STAND $40.61 1 usually ships 1-5 days
19 274-0992 WHEEL, PORT A SCRUB $6.32 1 usually ships 12-16 days
20 274-3164 CLEVIS PIN, PORT A SCRUB $18.93 1 usually ships 1-5 days
21 374-1494 CIRCLIP, PORT A SCRUB $1.00 1 usually ships 1-5 days
22 274-5324 KIT-PARKING WHEEL $52.45 1 usually ships 12-16 days
23 274-0555 HANDLE-LIFTING $2.31 1 usually ships 1-5 days
24 374-1457 WSR-SPRING-ST (14 inch) $1.00 1 usually ships 1-5 days
25 374-1441 WASHER STEEL - 4.3X9.0X0.8 $1.05 1 usually ships 1-5 days
