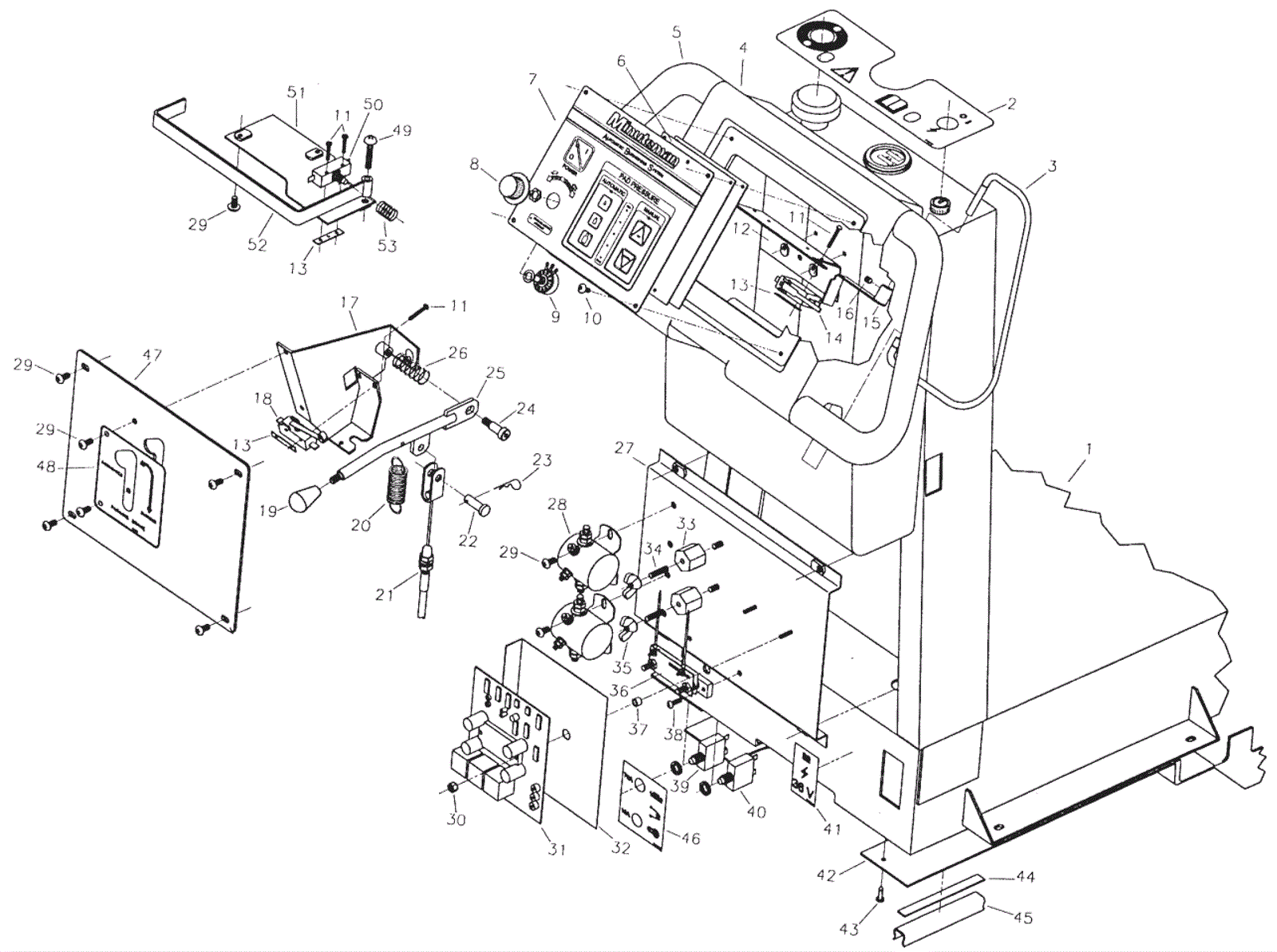

M-27010QP Handle and Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 usually ships 3-26 days
2 174-5729 Decal Instructions Call for price 1 usually ships 1-5 days
3 174-5730 Wire Handle Right $10.75 1 usually ships 1-5 days
4 174-5731 Wire Handle Left $10.75 1 usually ships 1-5 days
5 174-5732 Handle Console Call for price 1 usually ships 1-5 days
6 174-5733 Fuse 10A $0.90 1 usually ships 1-5 days
7 174-5734 Control Board Assembly Call for price 1 usually ships 1-5 days
8 174-0259 Knob $7.99 1 usually ships 4-14 days
9 174-0818 Potentiometer Assembly $22.82 1 usually ships 1-5 days
10 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 4 ships same day
11 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 8 ships same day
12 174-5735 Switch Bracket Call for price 1 usually ships 1-5 days
13 174-0413 Tinnerman nut $0.97 4 usually ships 1-5 days
14 174-0388 Micro switch $25.43 2 usually ships 4-14 days
15 174-5736 Cam Assembly Call for price 2 usually ships 1-5 days
16 174-5737 Screw 1/4-20 x 1/4 set $0.97 2 usually ships 1-5 days
17 174-0393 Brake bracket $79.32 1 usually ships 1-5 days
18 174-0406 Snap switch $18.50 1 usually ships 4-14 days
19 174-0387 Knob $9.31 1 usually ships 4-14 days
20 174-0405 Extension spring $7.39 1 usually ships 1-5 days
21 174-0327 Brake cable assembly $19.68 1 usually ships 1-5 days
22 174-0195 Clevis pin $0.86 1 usually ships 4-14 days
23 174-0200 Cotter pin $1.20 1 usually ships 4-14 days
24 999-0492 Bolt 3/8 x 3/4 x 5/16 shoulder socket head $1.91 1 ships same day
25 174-0386 Parking brake lever $23.55 1 usually ships 1-5 days
26 174-0196 Compression spring $5.27 1 usually ships 4-14 days
27 174-5738 Electrical Panel Call for price 1 usually ships 1-5 days
28 991-1227 36V solenoid 4 post (2 large 2 small) $65.49 2 ships same day
29 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 12 ships same day
30 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
31 174-0402 36V speed control (OBSOLETE) $887.11 1 usually ships 1-5 days
32 174-0264 Insulator $5.83 1 usually ships 1-5 days
33 174-0156 Insulated standoff $5.77 2 usually ships 1-5 days
34 174-0165 Brass stud $5.78 2 usually ships 1-5 days
35 174-0248 Nut 1/4-20 wing nylon $1.20 2 usually ships 1-5 days
36 174-5739 Calibrated Shunt Call for price 2 usually ships 1-5 days
37 174-5938 S-C board spacer $4.91 2 usually ships 1-5 days
38 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 2 ships same day
39a 172-2523 70amp circuit breaker $118.65 1 usually ships 1-5 days
39b 991-1633 70amp circuit breaker $57.60 1 (NON-OEM) usually ships 3-19 days
40 174-5740 Circuit Breaker 18 amp $37.39 1 usually ships 1-5 days
41 174-5741 36V Decal $11.18 1 usually ships 1-5 days
42 174-5742 Bottom Shroud Call for price 1 usually ships 1-5 days
43 174-5247 Screw 12 x 1/2 steel type a $1.20 8 usually ships 4-14 days
44 174-0062 Foam tape (sold by the foot) $2.89 1 usually ships 4-14 days
45 174-0167 U-channel $63.84 1 usually ships 1-5 days
46 174-5743 Circuit Breakers Decal $3.53 1 usually ships 1-5 days
47 174-5744 Access Panel Call for price 1 usually ships 1-5 days
48 174-5745 Parking Brake Decal $4.79 1 usually ships 1-5 days
49 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 1 ships same day
50 174-4024 Switch $24.53 1 usually ships 4-14 days
51 174-5747 Switch Bracket Call for price 1 usually ships 1-5 days
52 174-5748 Switch Lever Call for price 1 usually ships 1-5 days
53 174-5749 Compression spring $3.17 1 usually ships 4-14 days
