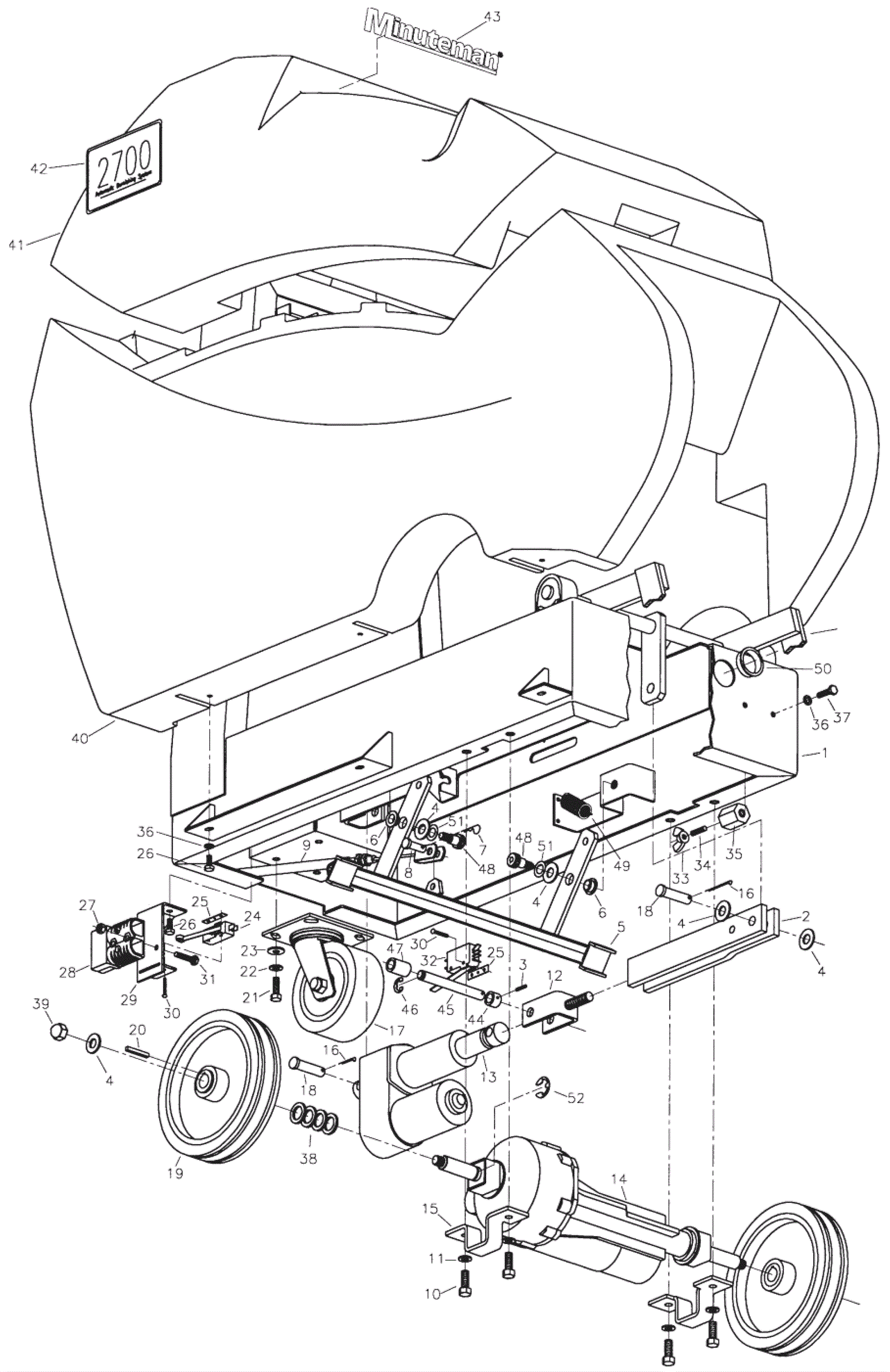

M-27010QP Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 usually ships 3-26 days
2 174-8885 Linkage arm weldment Call for price 1 usually ships 1-5 days
3 174-0772 Roll Pin $0.97 1 usually ships 1-5 days
4 999-0187 Washer 1/2 flat plain finish $0.99 6 ships same day
5 174-5711 Parking Brake Weldment Call for price 1 usually ships 1-5 days
6 174-0120 Bushing $2.63 2 usually ships 4-14 days
7 174-0200 Cotter pin $1.20 1 usually ships 4-14 days
8 174-0195 Clevis pin $0.86 1 usually ships 4-14 days
9 174-0327 Brake cable assembly $19.68 1 usually ships 1-5 days
10 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 4 ships same day
11 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
12 174-0336 Yoke Weldment $23.81 1 usually ships 1-5 days
13 174-5713 Actuator $716.24 1 usually ships 1-5 days
14 174-5714 Transaxle Call for price 1 usually ships 1-5 days
15 174-5715 Transaxle Mount Call for price 2 usually ships 1-5 days
16 174-0340 Square keyway $0.81 2 usually ships 1-5 days
17 174-0106 Caster wheel assembly $53.33 1 usually ships 4-14 days
18 174-0347 Clevis pin 1/2 x 1.75 $1.00 2 usually ships 1-5 days
19 174-5716 Wheel 8 Inch $79.24 2 usually ships 4-14 days
20 174-5717 Square keyway $1.13 2 usually ships 4-14 days
21 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 4 usually ships 1-5 days
22 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
23 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
24 174-0406 Snap switch $18.50 1 usually ships 4-14 days
25 174-0413 Tinnerman nut $0.97 2 usually ships 1-5 days
26 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 8 usually ships 1-5 days
27 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
28 162-5031 175amp charger plug (gray) SB175 $6.17 1 ships same day
29 174-5719 Charge Plug Bracket Call for price 1 usually ships 1-5 days
30 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 4 ships same day
31 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
32 174-0388 Micro switch $25.43 1 usually ships 4-14 days
33 174-0248 Nut 1/4-20 wing nylon $1.20 2 usually ships 1-5 days
34 174-0165 Brass stud $5.78 2 usually ships 1-5 days
35 174-0156 Insulated standoff $5.77 2 usually ships 1-5 days
36 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
37 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
38 999-0588 Washer 7/8 flat stainless steel $11.44 8 ships same day
39 999-0947 Nut 1/2-20 acorn nickel plated $6.62 2 ships same day
40 174-5721 Lower Body Call for price 1 usually ships 1-5 days
41 174-5722 Cover Call for price 1 usually ships 1-5 days
42 174-5723 Decal Call for price 2 usually ships 1-5 days
43 174-8011 Minuteman decal $3.84 1 usually ships 4-14 days
44 174-5724 Actuator Pin Sleeve Call for price 1 usually ships 1-5 days
45 174-5725 Actuator Pin Call for price 1 usually ships 1-5 days
46 174-0178 1/2 inch external retaining ring $0.99 1 usually ships 4-14 days
47 174-5726 Actuator Pin Spacer Call for price 2 usually ships 1-5 days
48 174-5325 Bolt 1/2 x 1/2 shoulder $2.77 2 usually ships 4-14 days
49 174-0405 Extension spring $7.39 2 usually ships 1-5 days
50 174-5727 Heyco Bushing 1 1/2 inch $0.90 1 usually ships 1-5 days
51 174-5159 Washer 33/64 x 1/64 wave $0.99 2 usually ships 4-14 days
52 174-5728 Retaining ring $1.33 2 usually ships 4-14 days
