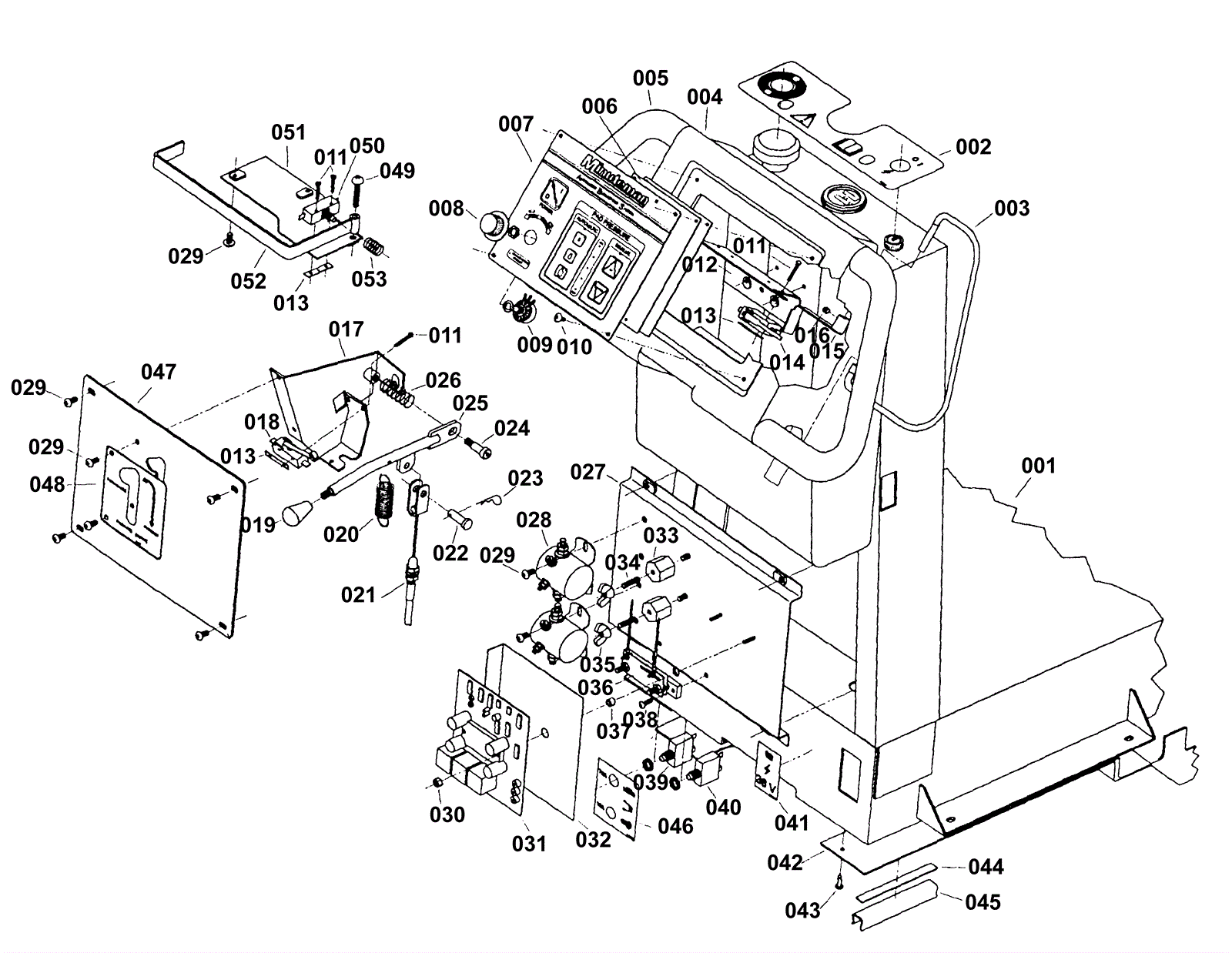

M-27000-00 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 1 Frame Weldment usually ships 3-26 days
002 174-5729 Decal Instructions Call for price 1 usually ships 1-5 days
003 174-5730 Wire Handle Right $10.75 1 usually ships 1-5 days
004 174-5731 Wire Handle Left $10.75 1 usually ships 1-5 days
005 174-5732 Handle Console Call for price 1 usually ships 1-5 days
006 174-5733 Fuse 10A $0.90 1 usually ships 1-5 days
007 174-5734 Control Board Assembly Call for price 1 usually ships 1-5 days
008 174-0259 Knob $7.99 1 usually ships 4-14 days
009 174-0818 Potentiometer Assembly $22.82 1 usually ships 1-5 days
010 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 1 ships same day
011 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 8 ships same day
012 174-5735 Switch Bracket Call for price 1 usually ships 1-5 days
013 174-0413 Tinnerman nut $0.97 4 usually ships 1-5 days
014 174-0388 Micro switch $25.43 2 usually ships 4-14 days
015 174-5736 Cam Assembly Call for price 2 usually ships 1-5 days
016 174-5737 Screw 1/4-20 x 1/4 set $0.97 2 usually ships 1-5 days
017 174-0393 Brake bracket $79.32 1 usually ships 1-5 days
018 174-0406 Snap switch $18.50 1 usually ships 4-14 days
019 174-0387 Knob $9.31 1 usually ships 4-14 days
020 174-0405 Extension spring $7.39 1 usually ships 1-5 days
021 174-0327 Brake cable assembly $19.68 1 usually ships 1-5 days
022 174-0195 Clevis pin $0.86 1 usually ships 4-14 days
023 174-0200 Cotter pin $1.20 1 usually ships 4-14 days
024 999-0492 Bolt 3/8 x 3/4 x 5/16 shoulder socket head $1.91 1 ships same day
025 174-0386 Parking brake lever $23.55 1 usually ships 1-5 days
026 174-0196 Compression spring $5.27 1 usually ships 4-14 days
027 174-5738 Electrical Panel Call for price 1 usually ships 1-5 days
028 991-1227 36V solenoid 4 post (2 large 2 small) $65.49 2 ships same day
029 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 12 ships same day
030 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
031 174-0402 36V speed control (OBSOLETE) $887.11 1 usually ships 1-5 days
032 174-0264 Insulator $5.83 1 usually ships 1-5 days
033 174-0156 Insulated standoff $5.77 2 usually ships 1-5 days
034 174-0165 Brass stud $5.78 2 usually ships 1-5 days
035 174-0248 Nut 1/4-20 wing nylon $1.20 2 usually ships 1-5 days
036 174-5739 Calibrated Shunt Call for price 2 usually ships 1-5 days
037 174-0169 Bushing $4.18 2 usually ships 1-5 days
038 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 2 ships same day
039 991-1633 70amp circuit breaker $57.60 1 usually ships 3-19 days
040 174-5740 Circuit Breaker 18 amp $37.39 1 usually ships 1-5 days
041 174-5741 36V Decal $11.18 1 usually ships 1-5 days
042 174-5742 Bottom Shroud Call for price 1 usually ships 1-5 days
043 174-5247 Screw 12 x 1/2 steel type a $1.20 8 usually ships 4-14 days
044 174-0062 Foam tape (sold by the foot) $2.89 1 usually ships 4-14 days
045 174-0167 U-channel $63.84 1 usually ships 1-5 days
046 174-5743 Circuit Breakers Decal $3.53 1 usually ships 1-5 days
047 174-5744 Access Panel Call for price 1 usually ships 1-5 days
048 174-5745 Parking Brake Decal $4.79 1 usually ships 1-5 days
049 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 1 ships same day
050 174-4024 Switch $24.53 1 usually ships 4-14 days
051 174-5747 Switch Bracket Call for price 1 usually ships 1-5 days
052 174-5748 Switch Lever Call for price 1 usually ships 1-5 days
053 174-5749 Compression spring $3.17 1 usually ships 4-14 days
