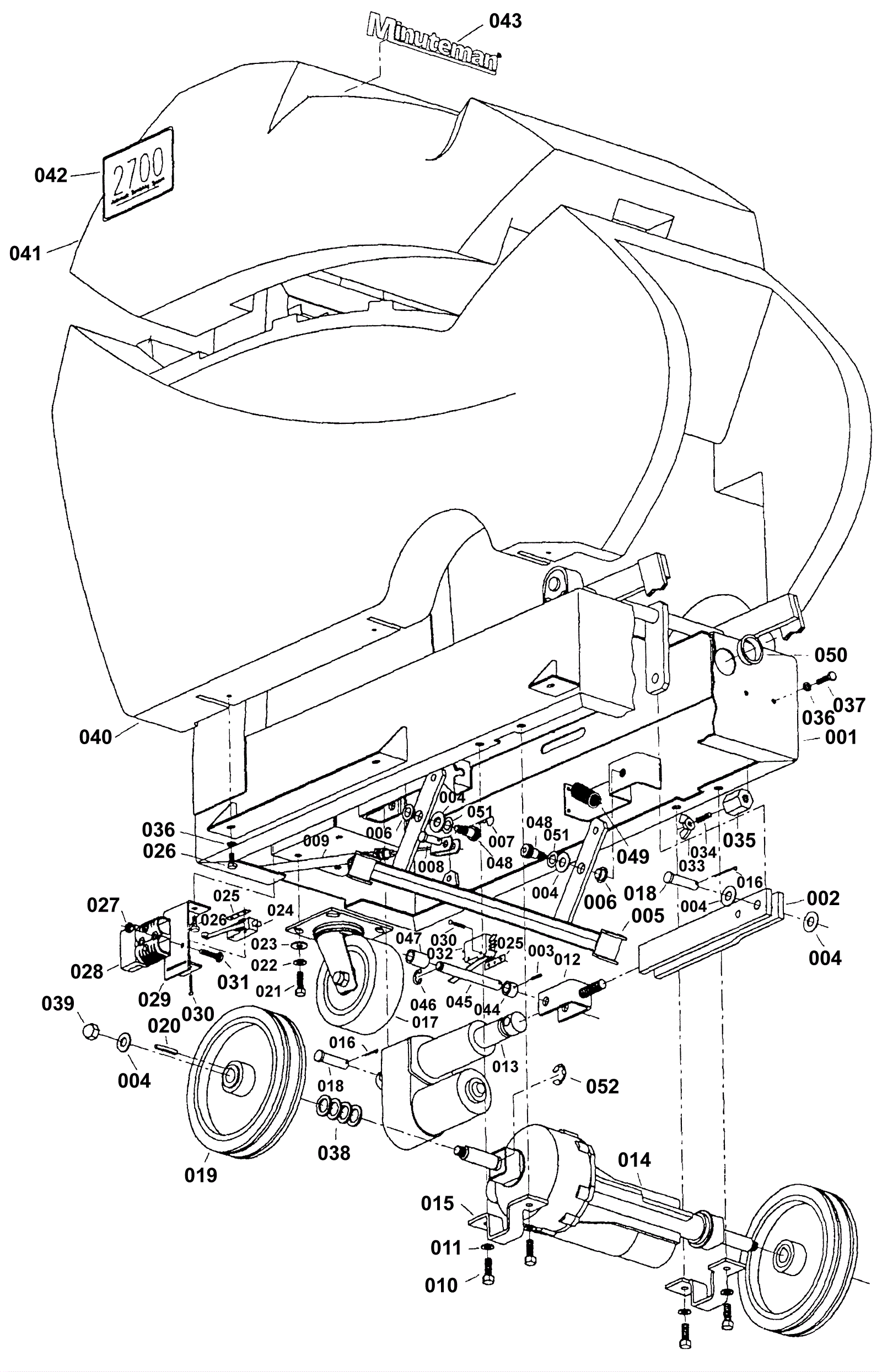

M-27000-00 Drive Unit Assmebly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 1 Frame Weldment usually ships 3-26 days
002 174-5710 Linkage Arm Weldment Call for price 1 usually ships 1-5 days
003 174-0772 Roll Pin $0.97 1 usually ships 1-5 days
004 999-0187 Washer 1/2 flat plain finish $0.99 6 ships same day
005 174-5711 Parking Brake Weldment Call for price 1 usually ships 1-5 days
006 174-0120 Bushing $2.63 2 usually ships 4-14 days
007 174-0200 Cotter pin $1.20 1 usually ships 4-14 days
008 174-0195 Clevis pin $0.86 1 usually ships 4-14 days
009 174-0327 Brake cable assembly $19.68 1 usually ships 1-5 days
011 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
012 174-0336 Yoke Weldment $23.81 1 usually ships 1-5 days
013 174-5713 Actuator $716.24 1 usually ships 1-5 days
014 174-5714 Transaxle Call for price 1 usually ships 1-5 days
015 174-5715 Transaxle Mount Call for price 2 usually ships 1-5 days
016 174-0340 Square keyway $0.81 2 usually ships 1-5 days
017a 174-0106 Caster wheel assembly $53.33 1 usually ships 4-14 days
017b 991-2004 Caster and swivel assembly $51.84 1 ships same day
018 174-0347 Clevis pin 1/2 x 1.75 $1.00 2 usually ships 1-5 days
019 174-5716 Wheel 8 Inch $79.24 2 usually ships 4-14 days
020 174-5717 Square keyway $1.13 2 usually ships 4-14 days
021 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 4 usually ships 1-5 days
022 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
023 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
024 174-0406 Snap switch $18.50 1 usually ships 4-14 days
025 174-0413 Tinnerman nut $0.97 2 usually ships 1-5 days
026 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 8 usually ships 1-5 days
027 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
028 162-5031 175amp charger plug (gray) SB175 $6.17 1 ships same day
029 174-5719 Charge Plug Bracket Call for price 1 usually ships 1-5 days
030 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 1 ships same day
031 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 2 ships same day
032 174-0388 Micro switch $25.43 1 usually ships 4-14 days
033 174-0248 Nut 1/4-20 wing nylon $1.20 2 usually ships 1-5 days
034 174-0165 Brass stud $5.78 2 usually ships 1-5 days
035 174-0156 Insulated standoff $5.77 2 usually ships 1-5 days
036 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
037 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
038 999-0588 Washer 7/8 flat stainless steel $11.44 8 ships same day
039 999-0429 Nut 1/4-20 acorn nickel plated $0.99 2 ships same day
040 174-5721 Lower Body Call for price 1 usually ships 1-5 days
041 174-5722 Cover Call for price 1 usually ships 1-5 days
042 174-5723 Decal Call for price 2 usually ships 1-5 days
043 174-8011 Minuteman decal $3.84 1 usually ships 4-14 days
044 174-5724 Actuator Pin Sleeve Call for price 1 usually ships 1-5 days
045 174-5725 Actuator Pin Call for price 1 usually ships 1-5 days
046 174-0178 1/2 inch external retaining ring $0.99 1 usually ships 4-14 days
047 174-5726 Actuator Pin Spacer Call for price 2 usually ships 1-5 days
048 174-5325 Bolt 1/2 x 1/2 shoulder $2.77 2 usually ships 4-14 days
049 174-0405 Extension spring $7.39 2 usually ships 1-5 days
050 174-5727 Heyco Bushing 1 1/2 inch $0.90 1 usually ships 1-5 days
051 174-5159 Washer 33/64 x 1/64 wave $0.99 2 usually ships 4-14 days
052 174-5728 Retaining ring $1.33 2 usually ships 4-14 days
