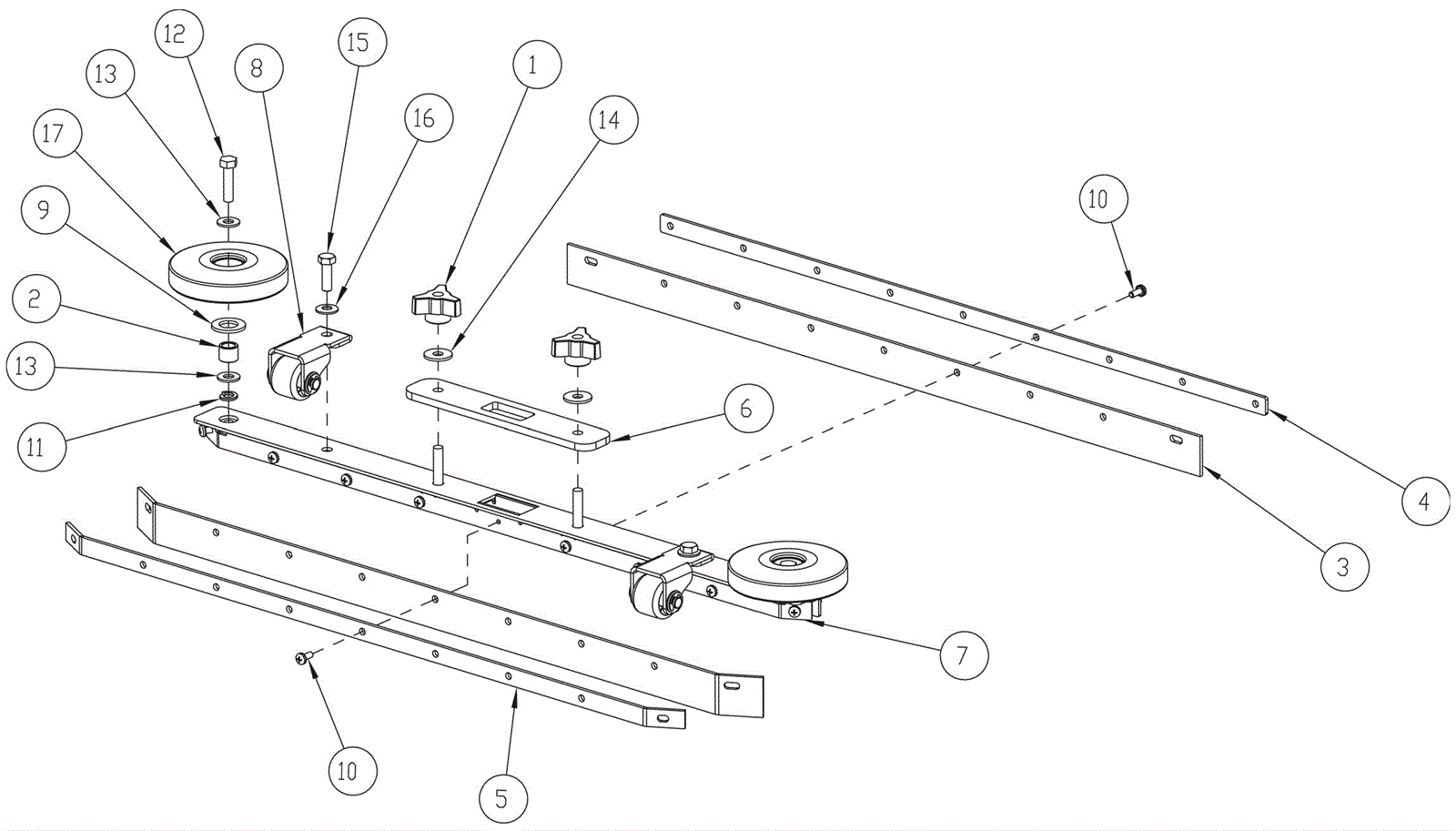

TSUNAMI Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-1220 3 sided knob 5/16 nyloc $4.41 2 usually ships 4-14 days
2 174-8328 Bushing $5.51 2 usually ships 4-14 days
3 174-3941 Squeegee blade primothane $35.71 2 usually ships 4-14 days
4 174-3942 Outer squeegee blade bracket $10.21 1 usually ships 4-14 days
5 174-3943 Inner squeegee blade bracket $11.75 1 usually ships 4-14 days
6 174-3944 Squeegee top gasket $10.56 1 usually ships 4-14 days
7 174-3945 Squeegee plate weldment $76.92 1 usually ships 4-14 days
8 174-3946 Caster assembly $22.28 2 usually ships 4-14 days
9 999-0349 Washer 5/8 SAE flat $0.99 2 ships same day
10 174-3947 Screw 10-24 x 1/2 pan head machine screw Call for price 18 usually ships 4-14 days
11 174-8250 Washer helical 5/16 stainless steel $0.86 2 usually ships 1-5 days
12 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
13 174-8251 Washer flat stainless steel $0.86 4 ships same day
14 174-3644 Washer fender m8 x 24 stainless steel $0.86 2 ships same day
15 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 2 ships same day
16 374-0939 Washer 5/16 conical spring $0.86 2 ships same day
17 174-8932 4 inch plastic roller $3.86 2 usually ships 4-14 days
