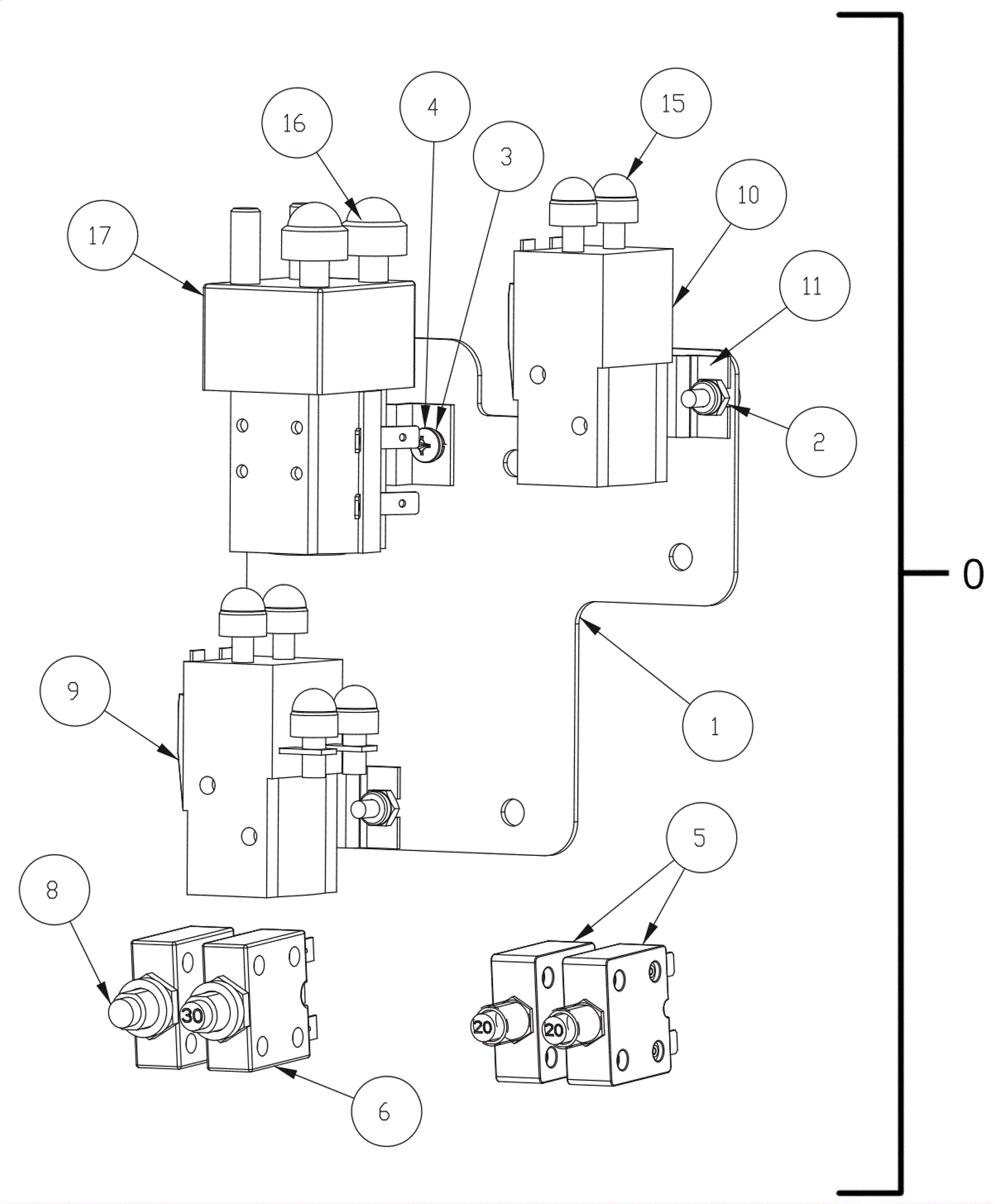

E20 SPORT Electrical Panel Assembly

#PartDescriptionPriceReqNotesAvailability
0 174-3900 Electrical panel assembly $1,372.56 1 usually ships 4-14 days
1 174-3901 Sport relay panel bracket $54.13 1 usually ships 4-14 days
2 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
3 174-5259 Washer #10 helical $0.97 2 usually ships 4-14 days
4 999-0082 Screw 10-24 x 1/4 round head slotted zinc plated $0.99 2 ships same day
5 174-5059 Circuit breaker 20 amp (push button) $4.56 2 ships same day
6 174-5812 Circuit breaker 50amp $31.15 1 usually ships 4-14 days
7 174-0230 Diode assembly $3.49 2 ships same day
8 174-8165 Circuit breaker 4.0 amp (push button) $11.52 1 ships same day
9 174-8375 24V brush motor relay 2 pole 80 amp $50.50 1 usually ships 4-14 days
10 174-8389 24V vacuum motor relay 1 pole 80 amp $47.74 1 usually ships 4-14 days
11 274-0493 BRACKET, RELAY 747615 & 747616 $4.46 2 usually ships 1-5 days
12 174-3902 8 AWG wire assembly (red) $38.96 1 usually ships 4-14 days
14 174-3903 Main harness $716.64 1 usually ships 4-14 days
15 374-2263 CAP, SAFETY NUT COVER M6 $2.11 6 usually ships 1-5 days
16 174-8291 Nut cover safety cap M8 $1.40 2 usually ships 1-5 days
17 174-8373 24V main relay 2 pole 125 amp $79.92 1 usually ships 4-14 days
