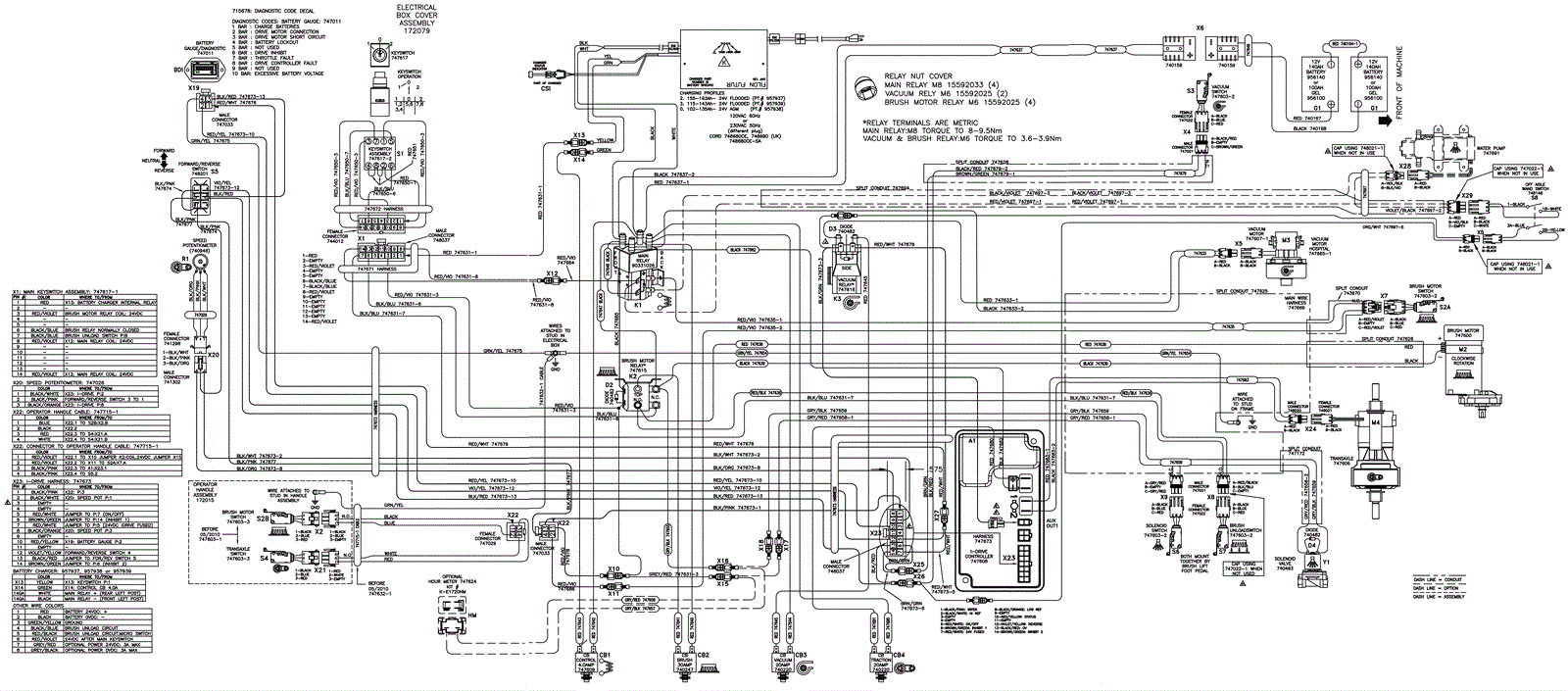

| # | Part | Description |
Req | Notes | Availability |
|---|
M1 |
174-7194
|
Water pump |
1 |
(optional) |
|
M2 |
174-7195
|
Brush motor |
1 |
|
|
M3b |
174-3719
|
24V vacuum motor assembly |
1 |
(model specific) (H20 only) |
|
M4 |
274-9506
|
24v transaxle |
1 |
|
|
K1 |
174-8373
|
24V main relay 2 pole 125 amp |
1 |
|
|
K2 |
174-8375
|
24V brush motor relay 2 pole 80 amp |
1 |
|
|
K3 |
174-8389
|
24V vacuum motor relay 1 pole 80 amp |
1 |
|
|
CB1 |
174-8165
|
Circuit breaker 4.0 amp (push button) |
1 |
|
|
CB2 |
274-1163
|
30amp circuit breaker |
1 |
|
|
CB3 |
174-5059
|
Circuit breaker 20 amp (push button) |
1 |
|
|
CB4 |
174-5059
|
Circuit breaker 20 amp (push button) |
1 |
|
|
S1 |
274-7156
|
KEYSWITCH, START-OFF-ON (E1720) |
1 |
|
|
S2A |
174-8264
|
Switch assembly (with pack conduit) |
1 |
(at motor) |
|
S2B |
174-7198
|
Switch |
1 |
(handle) |
|
S3 |
174-7199
|
Switch |
1 |
|
|
S4 |
174-7198
|
Switch |
1 |
|
|
S5 |
274-4726
|
Directional switch |
1 |
|
|
S6 |
174-7199
|
Switch |
1 |
|
|
S7 |
174-8264
|
Switch assembly (with pack conduit) |
1 |
|
|
S8 |
174-7192
|
Toggle on/off switch assembly |
1 |
(optional) |
|
A1 |
174-7084
|
24V I-drive motor controller |
1 |
|
|
CSI |
174-8299
|
Charge status indicator |
1 |
|
|
HM |
174-8383
|
Hour meter 24-277VDC/AC snap in |
1 |
(optional) |
|
BCa |
174-9673
|
Battery charger set 31D wet 140AH signet HBF3 |
1 |
(model specific) (battery type specific) |
|
BCb |
274-9886
|
Charger gel set 100ah signet HBF300-24 nem |
1 |
(model specific) (battery type specific) |
|
BCc |
174-3895
|
230V 140Ah wet battery charger |
1 |
(model specific) (battery type specific) |
|
G1a |
162-0057
|
12V 150Ah wet battery |
2 |
|
|
D2 |
174-0230
|
Diode assembly |
1 |
|
|
D3 |
174-0230
|
Diode assembly |
1 |
|
|
D4 |
174-0230
|
Diode assembly |
1 |
|
|
X2a |
174-8406
|
Female connector 3 pin |
1 |
(female) |
|
X2b |
174-8407
|
Male connector 3 pin |
1 |
(male) |
|
X4b |
174-8407
|
Male connector 3 pin |
1 |
(male) |
|
X5a |
174-8399
|
Female pin connector |
1 |
(female) |
|
X5b |
174-8398
|
Male pin connector |
1 |
(male) |
|
X6a |
162-5032
|
175amp charger plug only (red) SB175 |
1 |
(female) |
|
X6b |
162-5032
|
175amp charger plug only (red) SB175 |
1 |
(male) |
|
X10a |
374-1712
|
QC- FEMALE 10-12 .250 FULL INSULATED |
1 |
(female) |
|
X10b |
374-2443
|
QC-MALE 18-22G .250 FULL INS (STRIP) |
1 |
(male) |
|
X11a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(female) |
|
X11b |
374-2443
|
QC-MALE 18-22G .250 FULL INS (STRIP) |
1 |
(male) |
|
X12a |
374-1712
|
QC- FEMALE 10-12 .250 FULL INSULATED |
1 |
(female) |
|
X12b |
374-1714
|
QC-MALE 10-12G .250 FULL INSULATED |
1 |
(male) |
|
X13a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(female) |
|
X14a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(female) |
|
X14b |
374-2443
|
QC-MALE 18-22G .250 FULL INS (STRIP) |
1 |
(male) |
|
X15a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(female) |
|
X15b |
374-1714
|
QC-MALE 10-12G .250 FULL INSULATED |
1 |
(male) |
|
X16a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(female) |
|
X16b |
374-1714
|
QC-MALE 10-12G .250 FULL INSULATED |
1 |
(male) |
|
X17a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(optional) (female) |
|
X17b |
374-1714
|
QC-MALE 10-12G .250 FULL INSULATED |
1 |
(optional) (male) |
|
X18a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(optional) (female) |
|
X18b |
374-1714
|
QC-MALE 10-12G .250 FULL INSULATED |
1 |
(optional) (male) |
|
X19 |
374-1737
|
CONNECTOR-MOLEX 4 PIN MALE MINI-FIT JR |
1 |
(male) |
|
X20a |
174-5441
|
Female connector |
1 |
(female) |
|
X20b |
174-5442
|
Male connector |
1 |
(male) |
|
X22a |
374-2072
|
CONNECTOR-MOLEX 4 PIN FEMALE MINI-FIT |
1 |
(female) |
|
X22b |
374-1737
|
CONNECTOR-MOLEX 4 PIN MALE MINI-FIT JR |
1 |
(male) |
|
X23 |
174-8362
|
Male pin connector |
1 |
(male) |
|
X24a |
174-8399
|
Female pin connector |
1 |
(female) |
|
X24b |
174-8398
|
Male pin connector |
1 |
(male) |
|
X25a |
374-1700
|
QC-FEMALE 18-22G .250 FULL INS Loose pi |
1 |
(female) |
|
X26a |
374-1712
|
QC- FEMALE 10-12 .250 FULL INSULATED |
1 |
(female) |
|
X26b |
374-2065
|
QC-MALE 18-22G .250 FULL INS. LOOSE PIE |
1 |
(male) |
|
X27a |
374-1712
|
QC- FEMALE 10-12 .250 FULL INSULATED |
1 |
(female) |
|
X27b |
374-1714
|
QC-MALE 10-12G .250 FULL INSULATED |
1 |
(male) |
|
X28a |
174-8406
|
Female connector 3 pin |
1 |
(optional) (female) |
|
X28b |
174-8407
|
Male connector 3 pin |
1 |
(optional) (male) |
|
