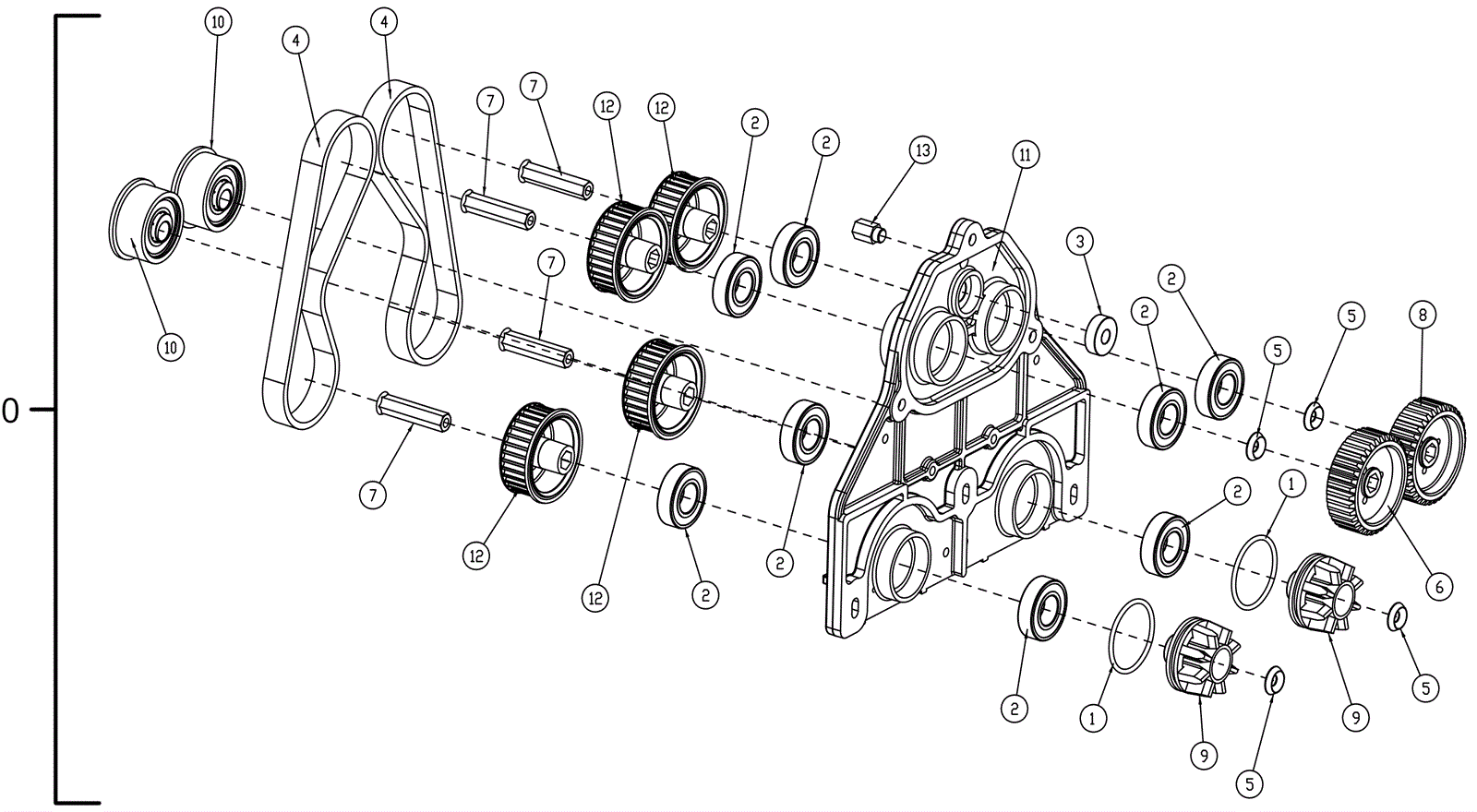

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
174-7264
|
Gear support housing assembly |
1 |
(includes 1-13) |
|
1 |
374-1805
|
O-ring |
2 |
|
|
2 |
174-8559
|
Bearing 6003 seal |
8 |
|
|
3 |
274-3331
|
Bearing |
1 |
|
|
4 |
274-6684
|
Belt |
2 |
|
|
5 |
374-1485
|
Washer |
4 |
|
|
6 |
274-9957
|
Left hand gear |
1 |
|
|
7 |
274-0334
|
keyway |
4 |
|
|
8 |
274-7884
|
Right hand gear |
1 |
|
|
9 |
174-3894
|
Drive pulley |
2 |
|
|
10 |
274-5524
|
Idler assembly |
2 |
|
|
11 |
174-9088
|
Gear support housing |
1 |
|
|
12 |
274-3538
|
Sprocket |
4 |
|
|
13 |
174-7267
|
Stud M8/M6 |
1 |
|
|
