| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

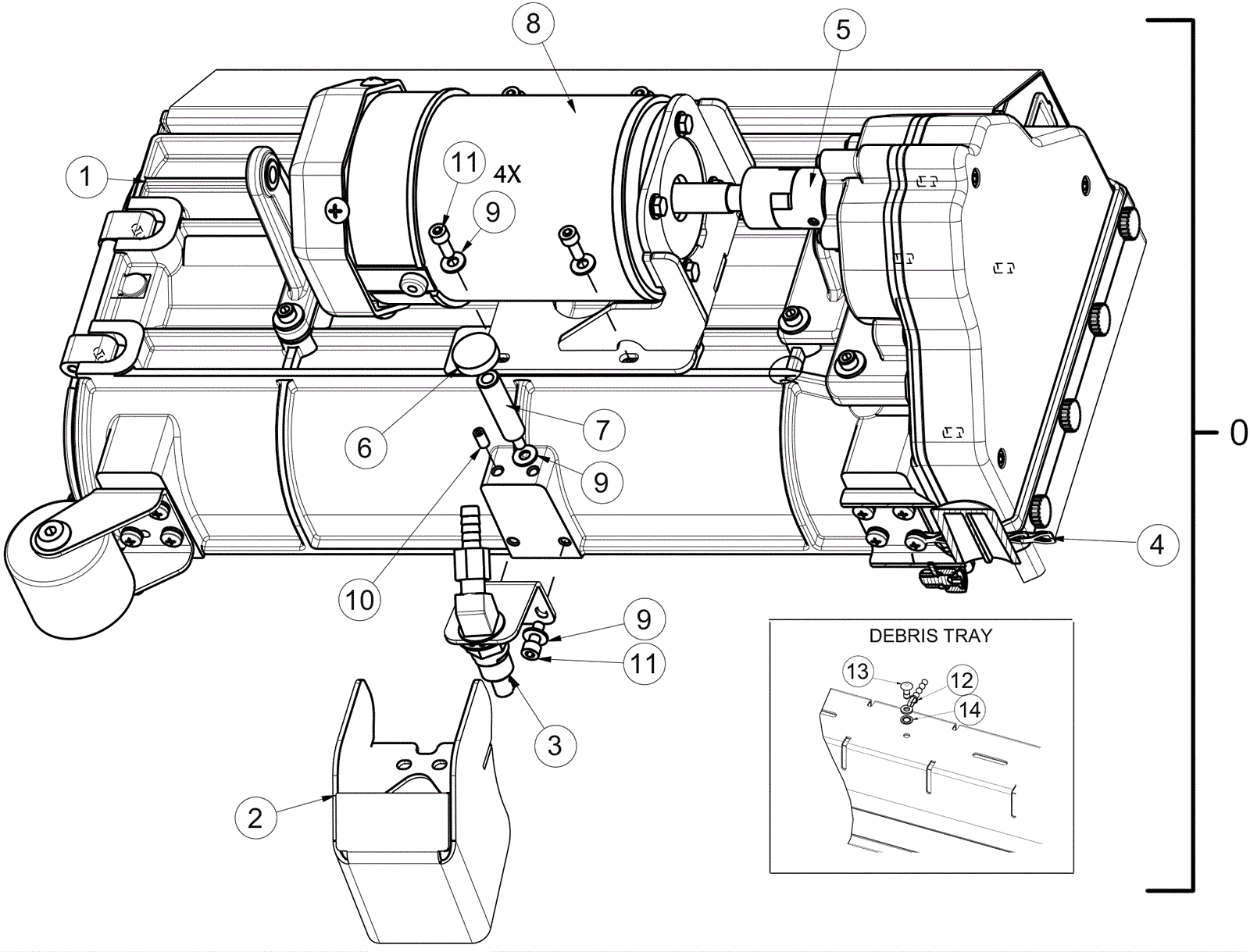

374-0161
|
Cylindrical deck assembly |
1 |
(includes 1-14) |
|
1 |
174-7243
|
20 inch cylindrical scrubdeck |
1 |
|
|
2 |
274-6534
|
Spray jet cover weldment |
1 |
|
|
3 |
274-5537
|
Spray jet assembly |
1 |
|
|
4 |
274-0214
|
Drag chain assembly |
1 |
(5 links) |
|
5 |
274-5608
|
Coupler assembly |
1 |
|
|
6 |
374-1876
|
Thumb screw knob |
1 |
|
|
7 |
274-1793
|
Pin |
1 |
|
|
8 |
174-7245
|
Brush motor assembly |
1 |
|
|
9 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
7 |
|
|
10 |
374-1257
|
Screw M6 x 12 socket cup point stainless steel |
1 |
|
|
11 |
999-1647
|
Screw M6-1 x 16mm socket head stainless steel |
6 |
|
|
12 |
174-8199
|
Beaded chain with eyelets stainless steel |
1 |
|
|
13 |
374-1221
|
RIVET-POP 3/16 |
1 |
|
|
14 |
999-0089
|
Washer #10 internal star lock zinc plated |
1 |
|
|
