| # | Part | Description |
Req | Notes | Availability |
|---|

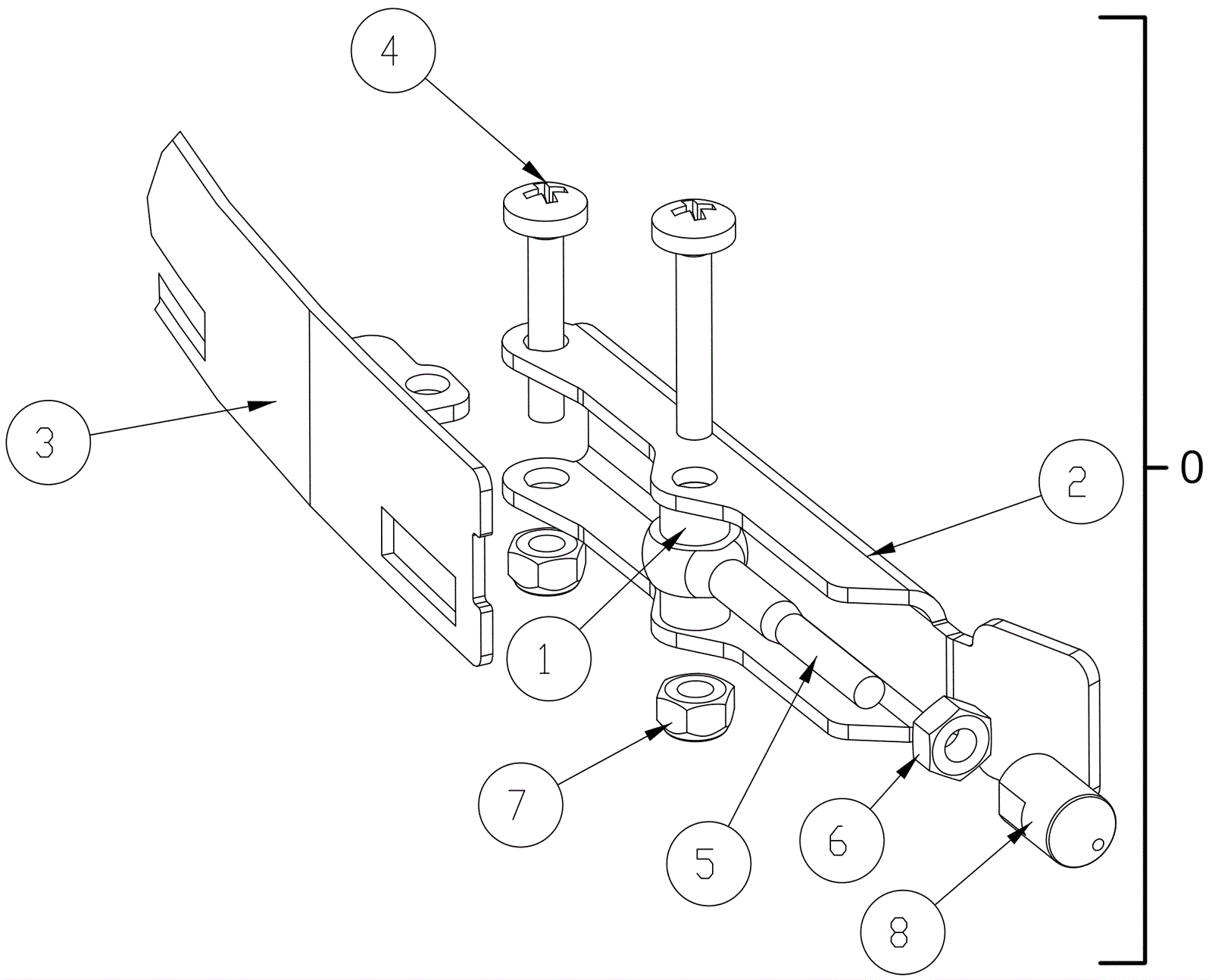

0 |
274-6157
|
STRAP ASM W/ LATCH, FRONT, 30 inch SQG |
1 |
(includes 1-8) |
|
1 |
174-8277
|
Spacer |
2 |
|
|
2 |
274-3619
|
STRAP WMT, FRONT LEFT - 30 inch (760) |
1 |
|
|
3 |
174-8327
|
Lever |
1 |
|
|
4 |
999-1425
|
Screw M5-.8 x 25mm pan head stainless steel |
2 |
|
|
5 |
174-8338
|
Bolt M5 x 40mm eye stainless steel |
1 |
|
|
6 |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
7 |
999-0495
|
Nut M5-.8 nylon insert lock zinc plated |
2 |
|
|
8 |
174-8341
|
Pressure pin |
1 |
|
|
