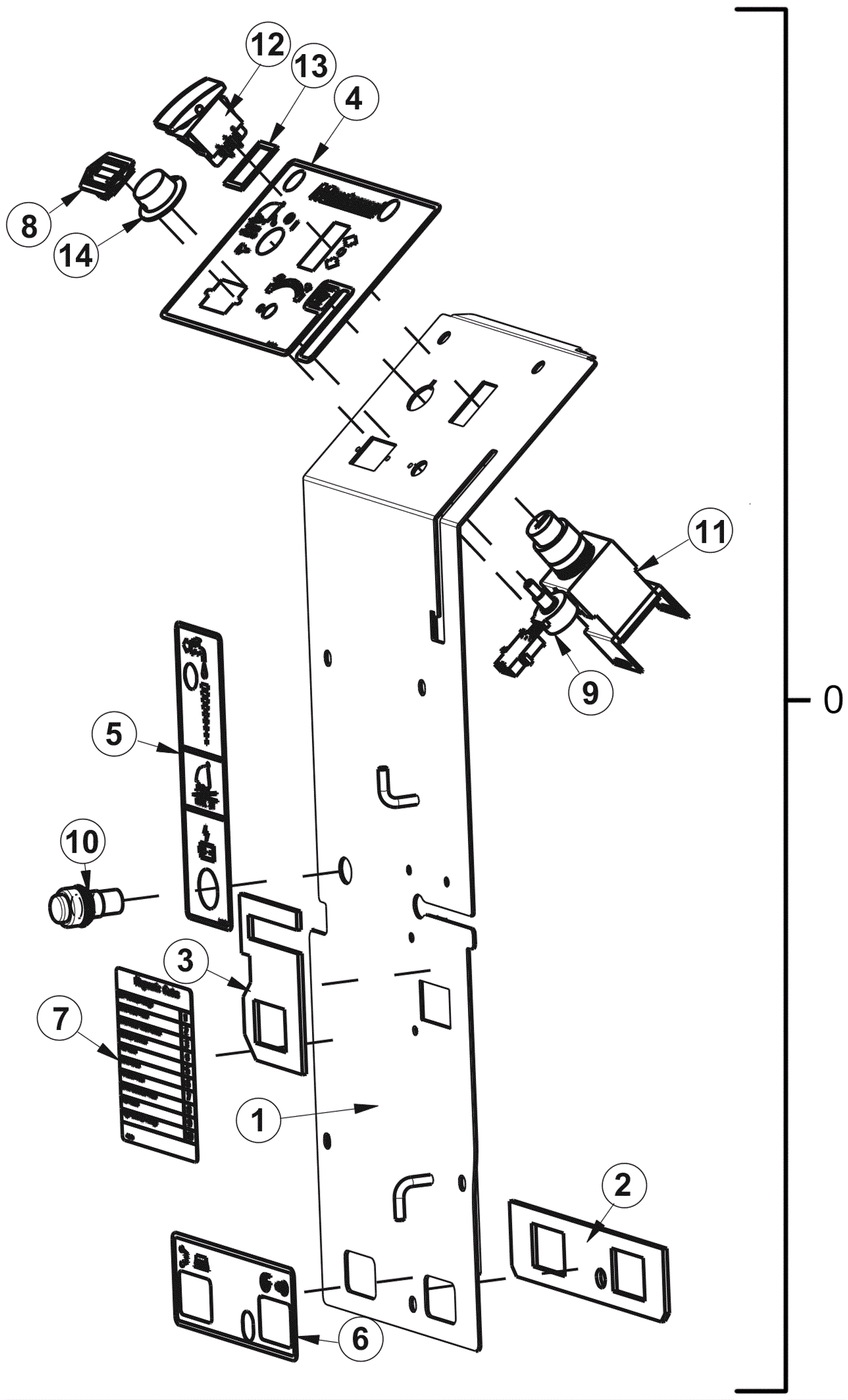

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
274-8967
|
ELEC BOX TD COVER ASSY |
1 |
(includes 1-3, 4a, 5-10, 11a, 12-14) |
|
0b |
174-3875
|
Electric box cover |
1 |
(includes 1-3, 4b, 5-10, 11b, 12-14) |
|
1 |
274-7152
|
Electrical cover weldment |
1 |
|
|
2 |
174-8294
|
Circuit breaker gasket |
1 |
|
|
3 |
174-8295
|
Charger cord plate gasket |
1 |
|
|
4a |
274-0419
|
DECAL, DASHBOARD ES1720TD |
1 |
|
|
4b |
174-3891
|
E20 cylindrical dashboard decal |
1 |
(cylindrical) |
|
5 |
174-8296
|
Electrical box decal |
1 |
|
|
6 |
374-2319
|
Circuit breaker decal |
1 |
|
|
7 |
174-3892
|
Narrow diagnostic codes decal |
1 |
|
|
8 |
274-6252
|
Battery gauge |
1 |
|
|
9 |
174-6335
|
Speed control potentiometer assembly |
1 |
|
|
11a |
274-7375
|
Keyswitch assembly w/ harness |
1 |
|
|
11b |
274-7205
|
Keyswitch assembly w/ harness |
1 |
(cylindrical) |
|
12 |
274-4726
|
Directional switch |
1 |
|
|
13 |
374-2345
|
Directional switch gasket |
1 |
|
|
14 |
174-0259
|
Knob |
1 |
|
|
